Brake Pedal Assy: Service and Repair

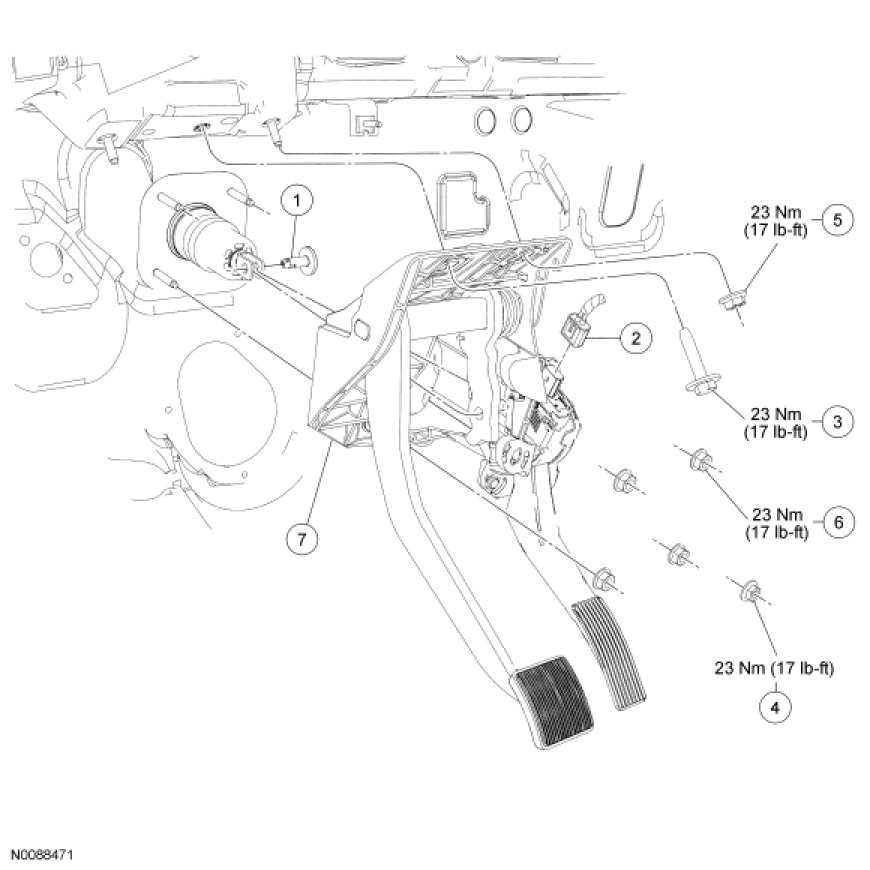

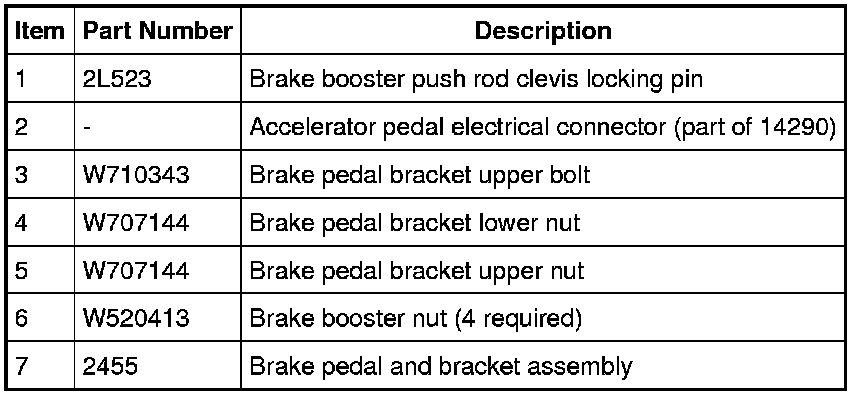

Brake Pedal and Bracket









Removal and Installation

1. NOTICE: Do not service the brake pedal or brake booster without first removing the stoplamp switch and speed control deactivator switch. These switches must be removed with the brake pedal in the at-rest position. Switch plungers must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

Remove the stoplamp switch.

2. NOTE: The booster push rod clevis locking pin is a one-time use only part. Any time the booster push rod clevis locking pin is removed, a new booster push rod clevis locking pin should be used.

NOTE: Remove the clevis locking pin by squeezing the locking tabs and pulling outward on the opposite end.

Remove and discard the booster push rod clevis locking pin.

3. Disconnect the accelerator pedal electrical connector.

4. Remove the brake pedal bracket upper bolt.
- To install, tighten to 23 Nm (17 lb-ft).

5. Remove the brake pedal bracket upper and lower nuts.
- To install, tighten to 23 Nm (17 lb-ft).

6. Remove the 4 brake booster nuts.
- To install, tighten to 23 Nm (17 lb-ft).

7. Remove the brake pedal and bracket assembly.
- Position the brake booster forward to allow the brake pedal and bracket assembly to clear the brake booster studs.

8. NOTICE: Do not press, pull or otherwise move the brake pedal while installing the stoplamp switch or the speed control deactivator switch. These switches must be installed with the booster push rod attached to the brake pedal and with the brake pedal in the at-rest position. Installing these switches with the brake pedal in any other position will result in incorrect adjustment and may damage the switches.

To install, reverse the removal procedure.
