Instrument Cluster / Carrier: Locations



Cluster:

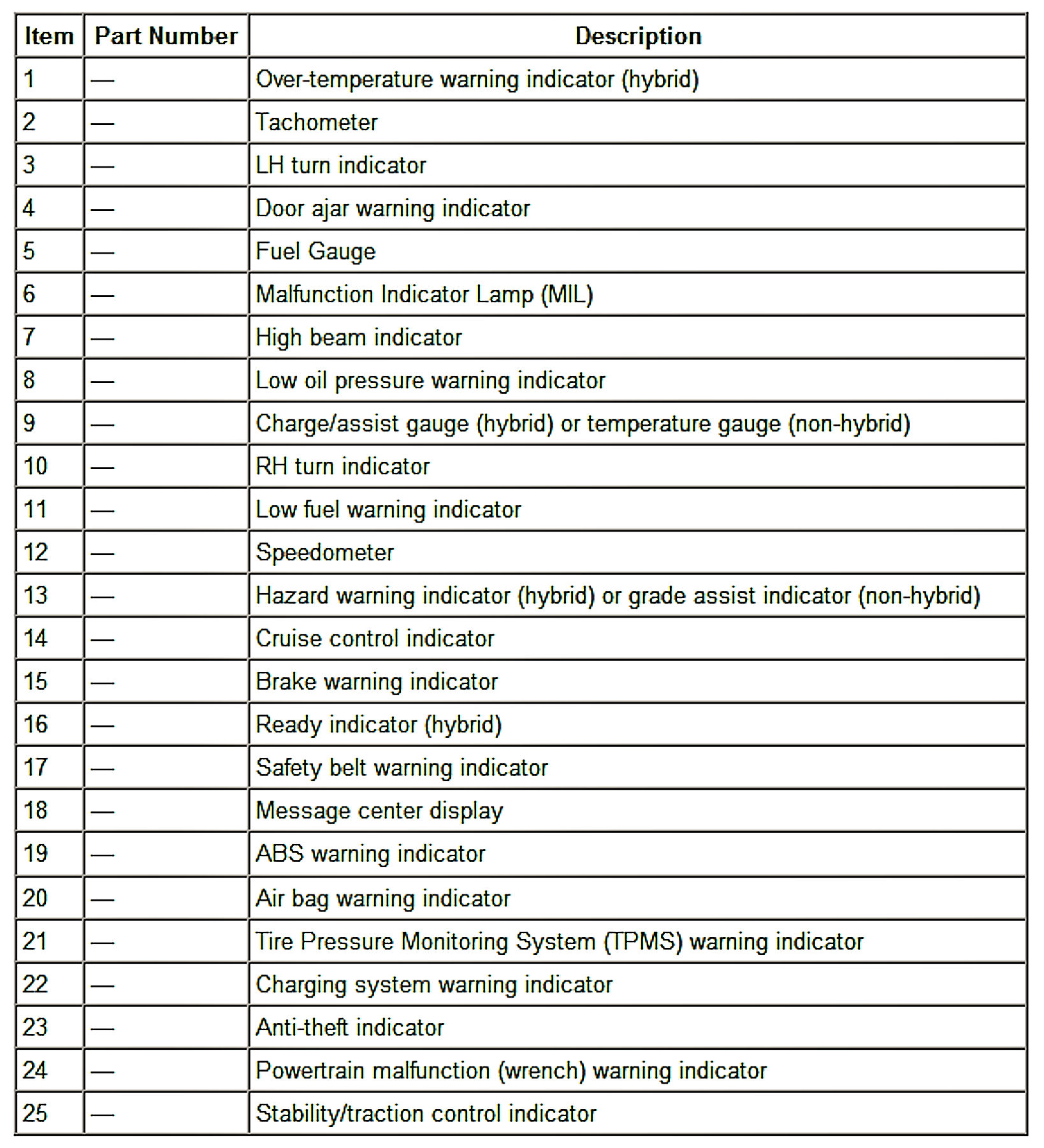

1 - 25:

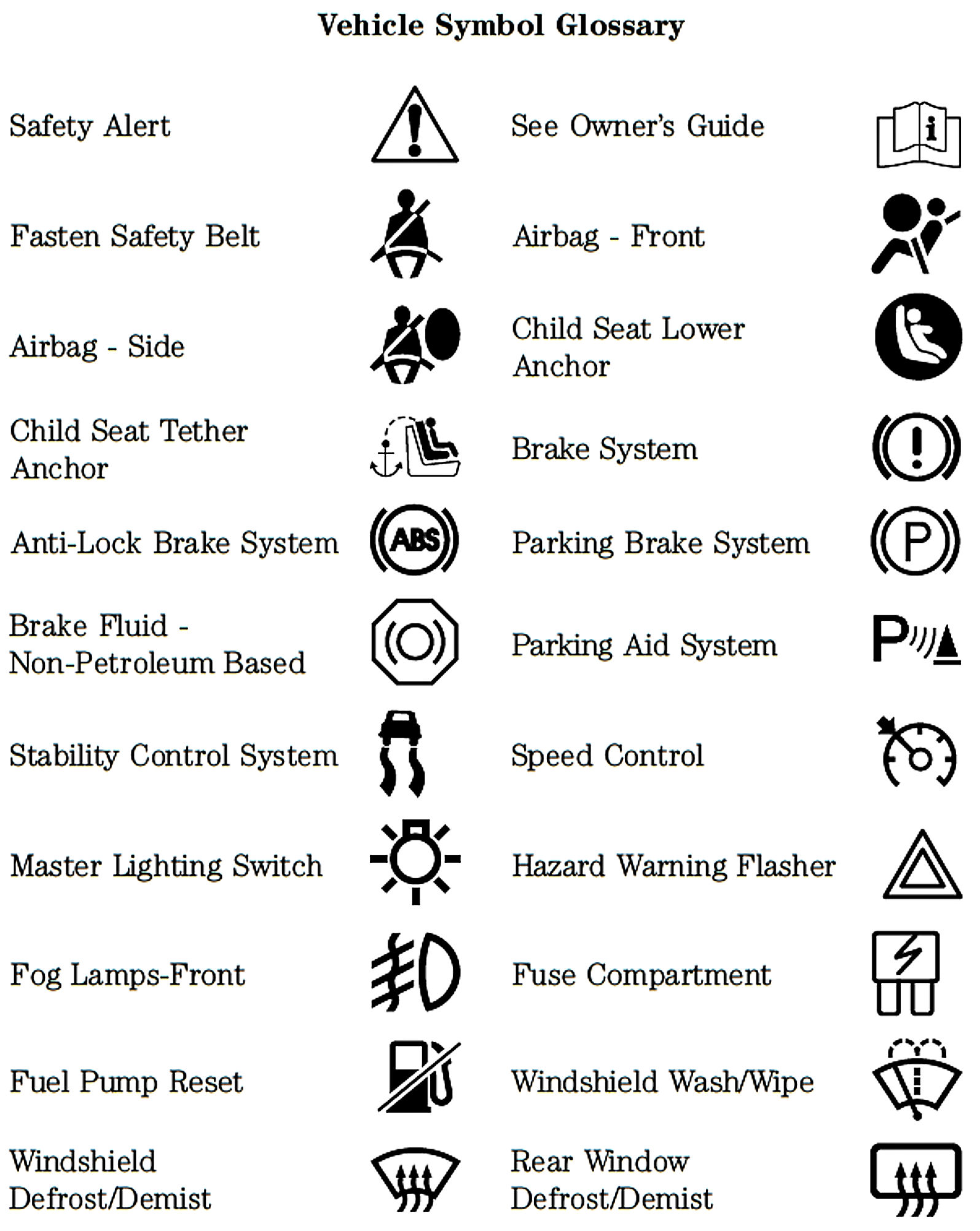

Vehicle Symbol Glossary 1:

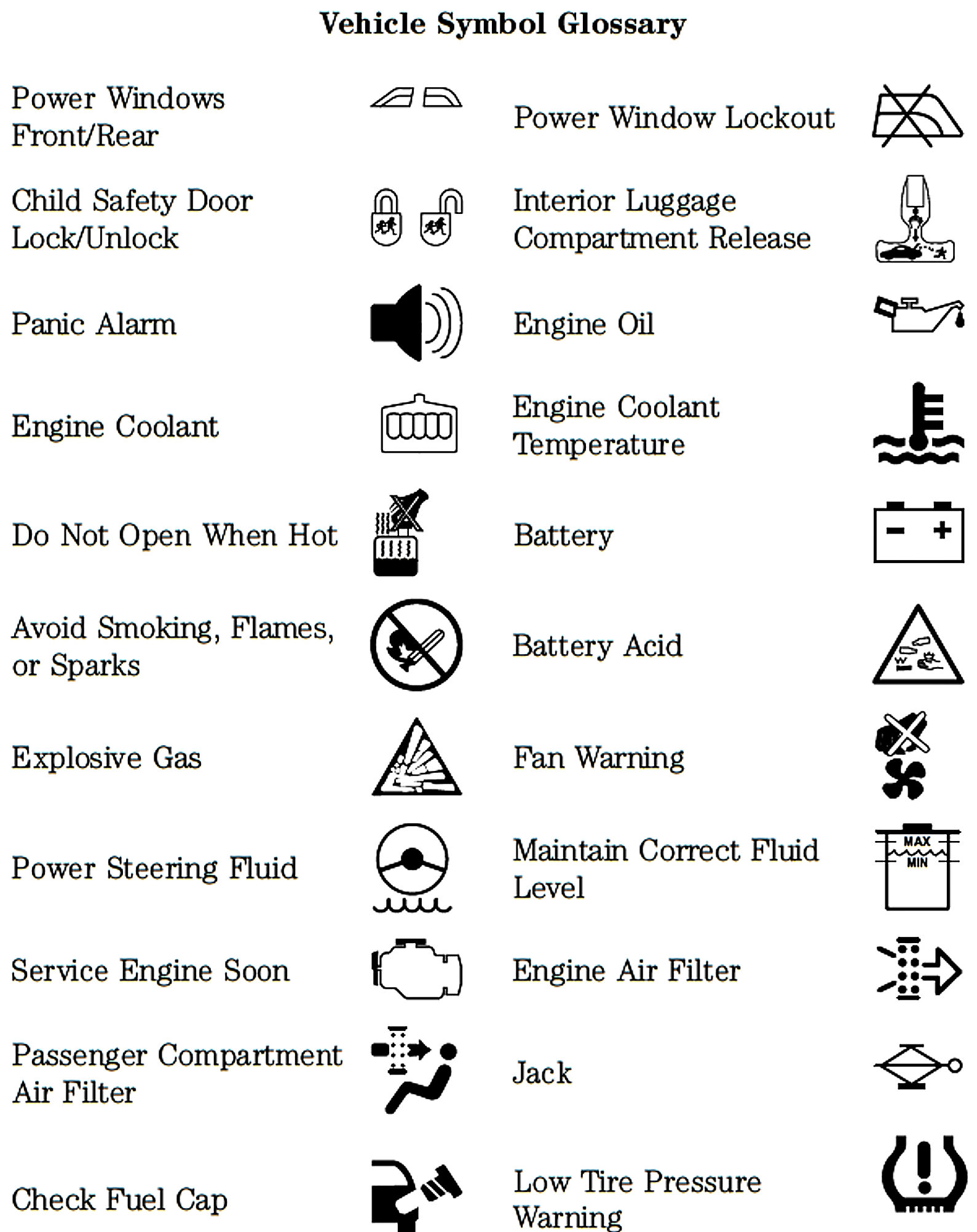

Vehicle Symbol Glossary 2:

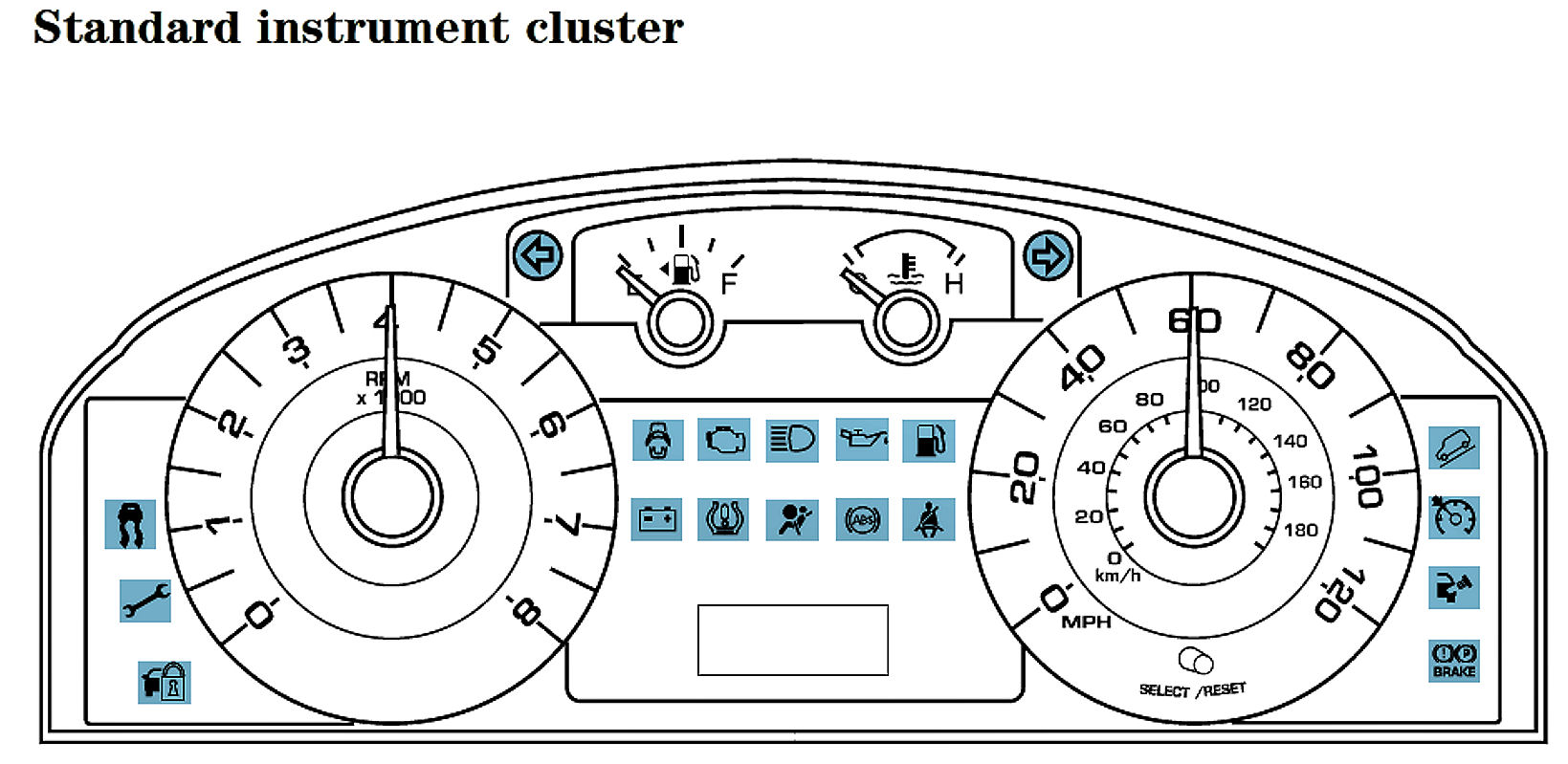

Standard Cluster:

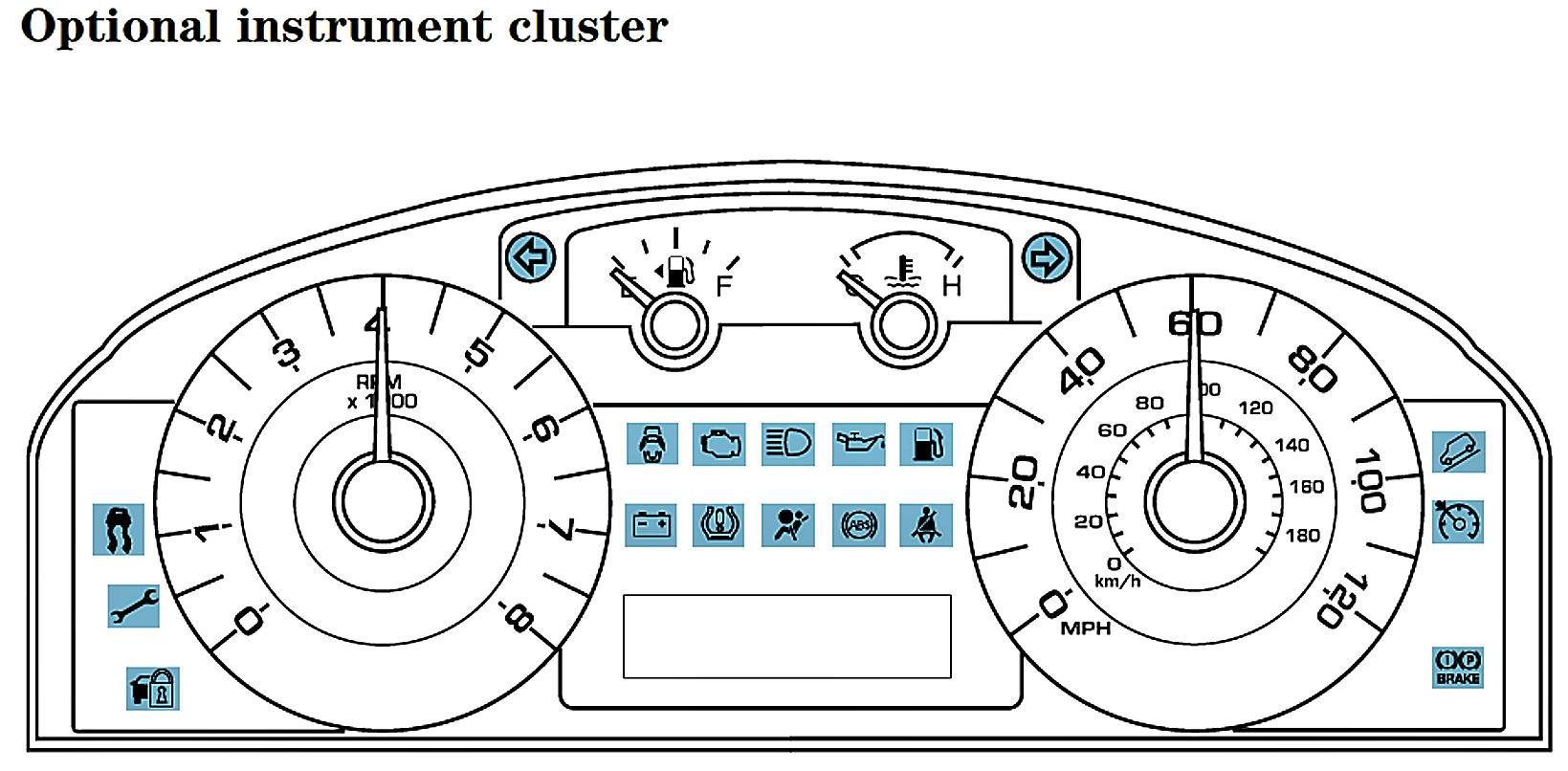

Optional Cluster:
