Parking Assist Warning Indicator: Service and Repair

Parking Aid Sensor

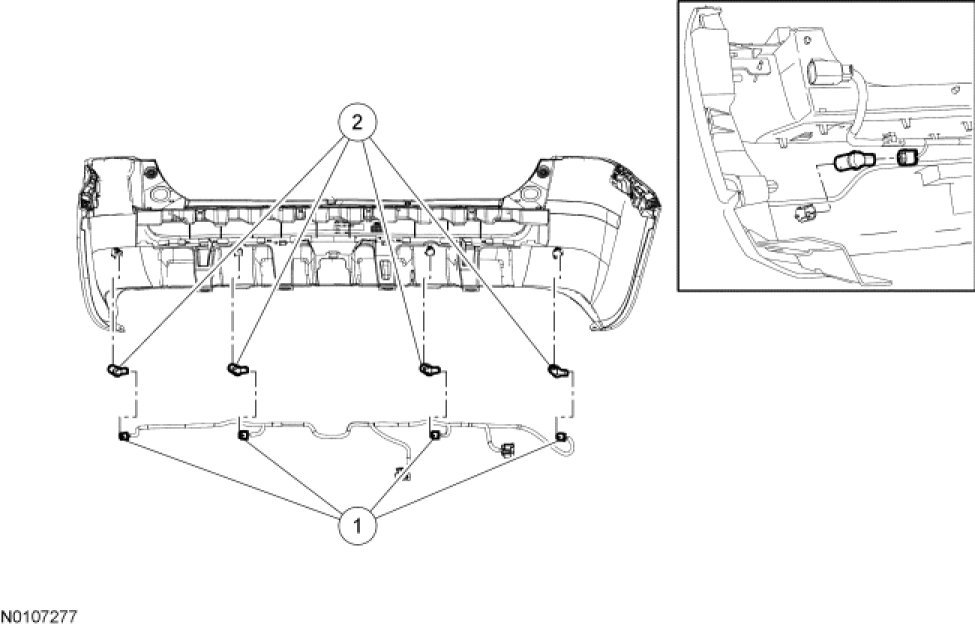

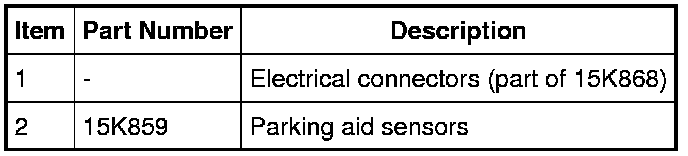

NOTE: Bumper shown removed for clarity.











Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Using a suitable tool, (such as a flat-blade screwdriver), gently pry the retaining tabs and remove the parking aid sensor(s).
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
- Using the scan tool, verify that the parking aid sensor PIDs read no object present and that the parking aid sensor attenuation PIDs read between 0.8-1.6 ms.

- Carry out the azimuth and elevation system check to verify the sensor(s) are operating correctly. For additional information, refer to Azimuth System Check Azimuth System Check and Elevation System Check Elevation System Check.
