Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2010
>>
Flex AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Instrumentation, Message Center and Warning Chimes
Instrumentation, Message Center and Warning Chimes
Instrumentation, Message Center and Warning Chimes
DTC Charts

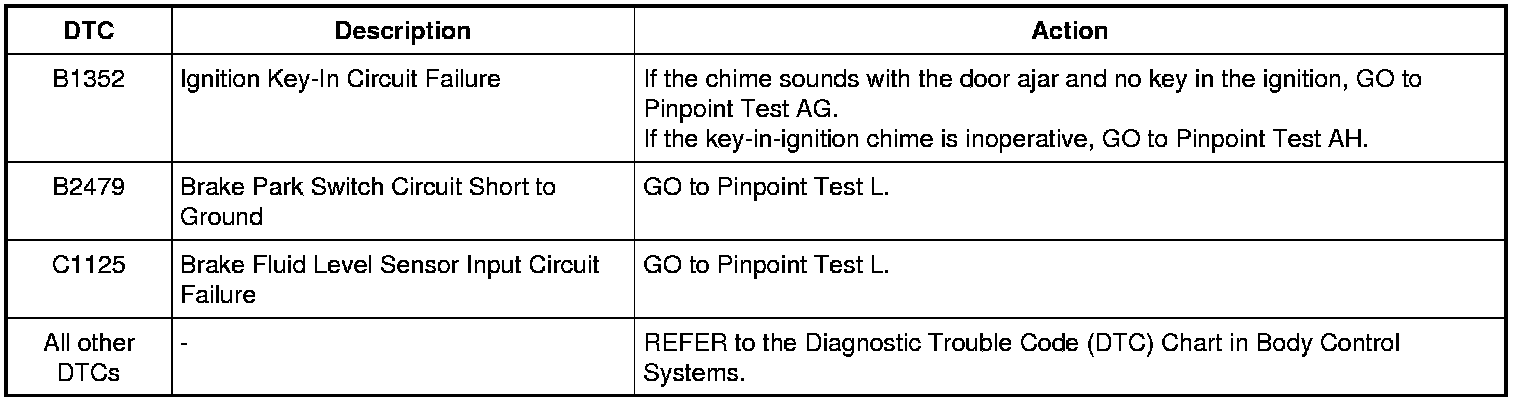

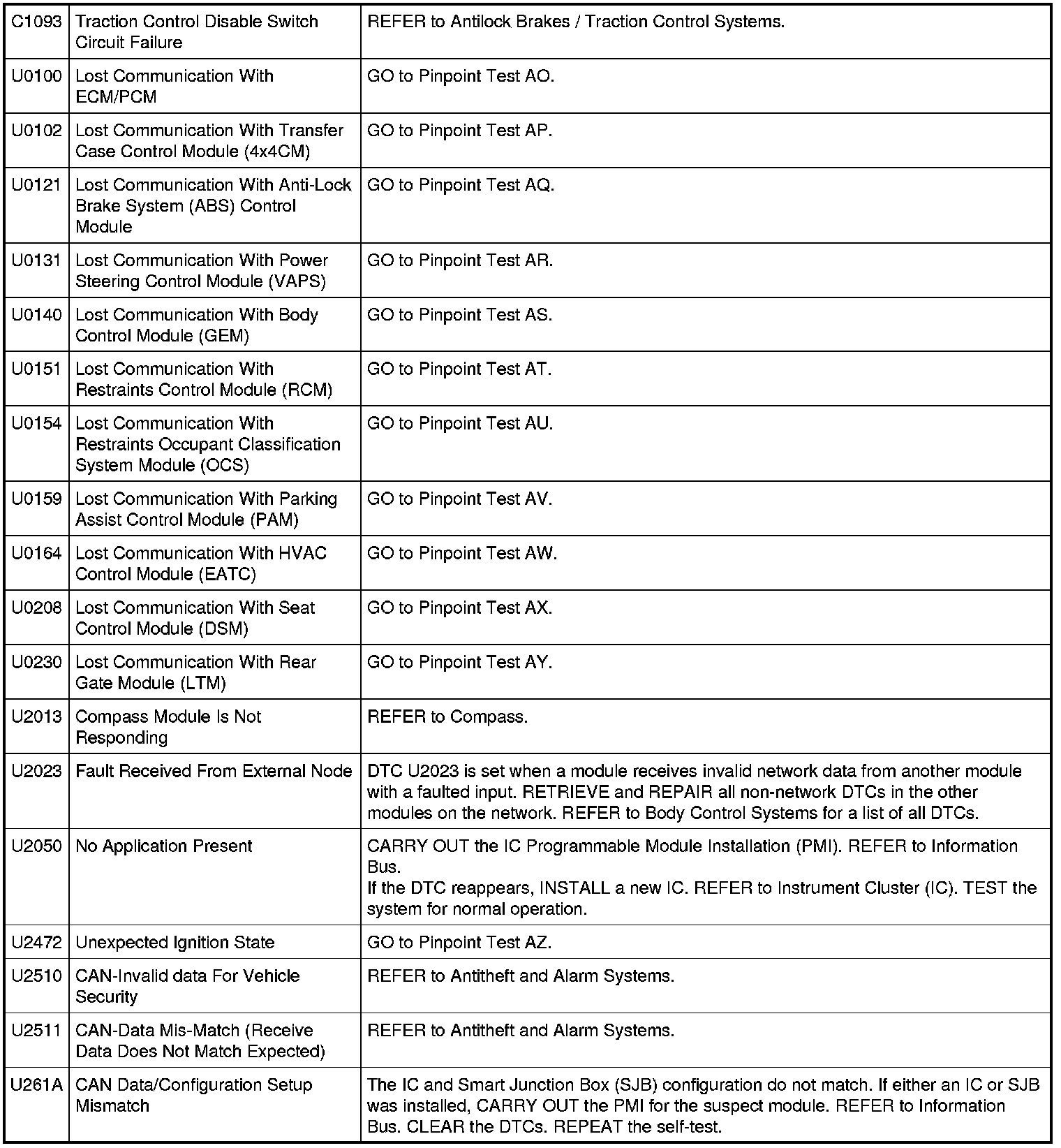

Instrument Cluster (IC) DTC Chart
Smart Junction Box (SJB) DTC Chart

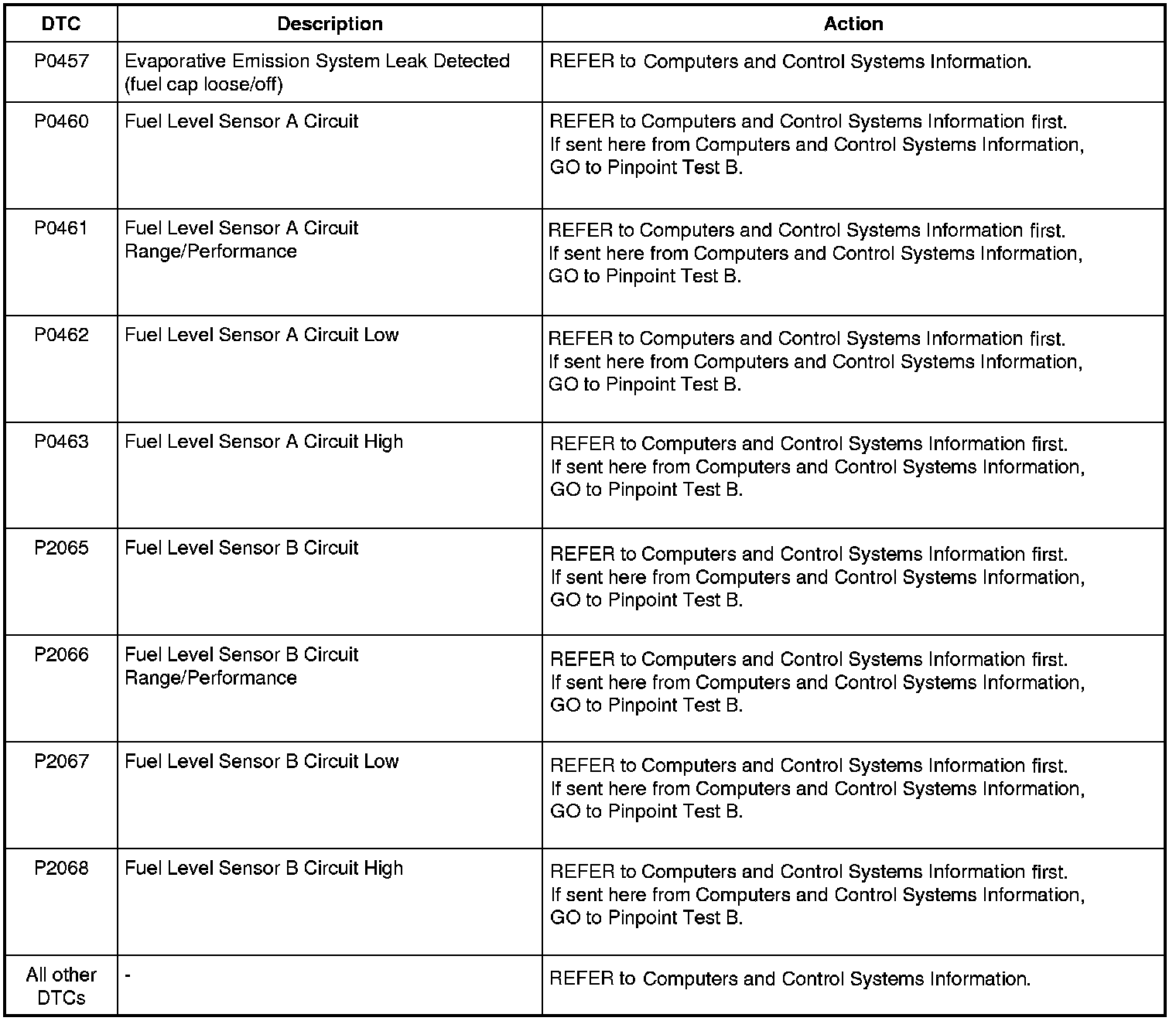

PCM DTC Chart
