Part 2

Identification Codes

Vehicle Identification Label (VIL)

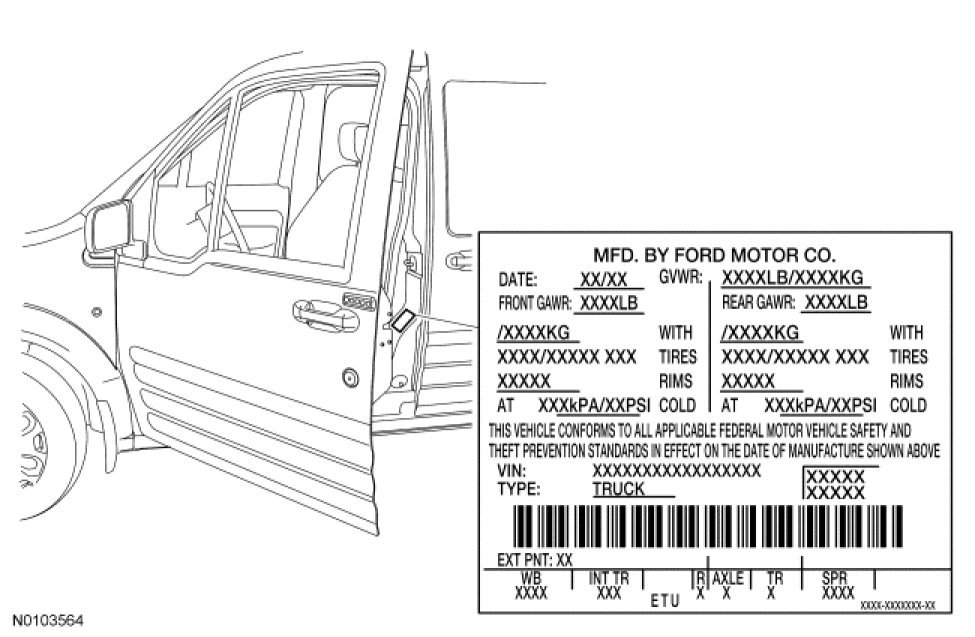

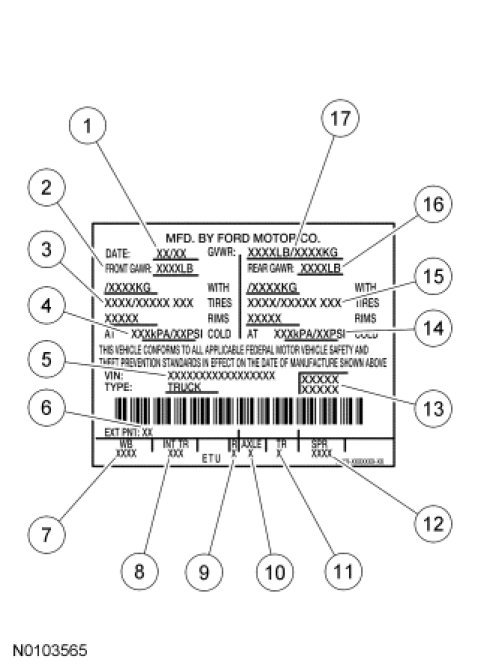

Vehicle Identification Label (VIL) Locator

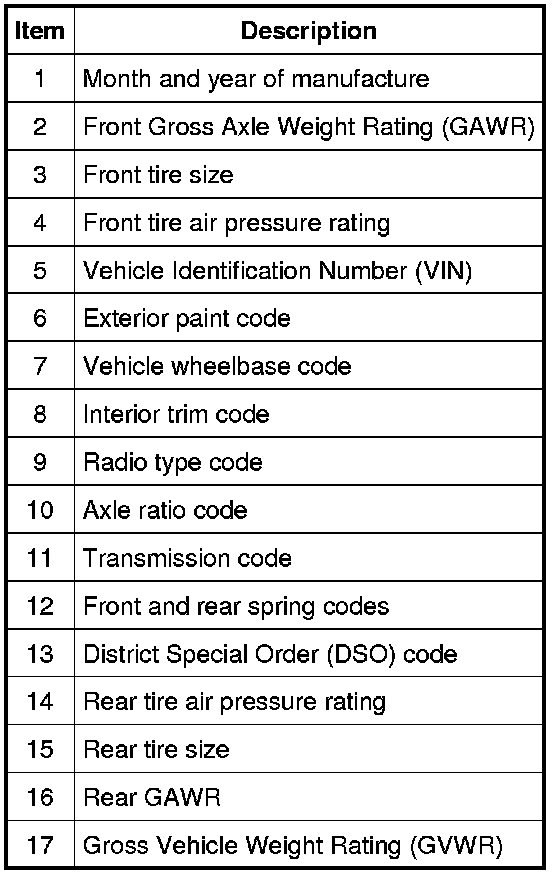

The Vehicle Identification Label (VIL) contains the manufacturer name, the month and year of manufacture and the Vehicle Identification Number (VIN). It also includes Gross Vehicle Weight Rating (GVWR) and tire information.

If a vehicle requires replacement of the VIL and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

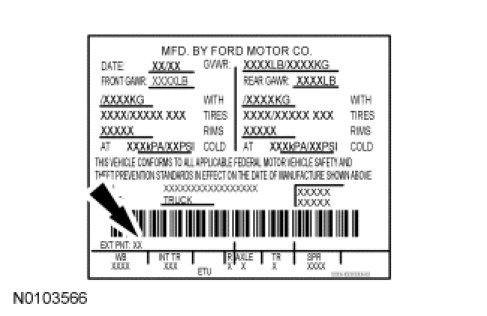

Paint Code





The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color.

- D3 - Torch Red
- TY - Silver Metallic
- UE - Panther Black Metallic
- UV - Blue
- Z2 - Frozen White

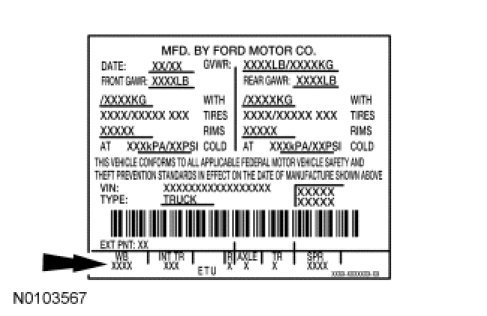

Wheelbase Code





- 2912 - 2912 mm (115 in)

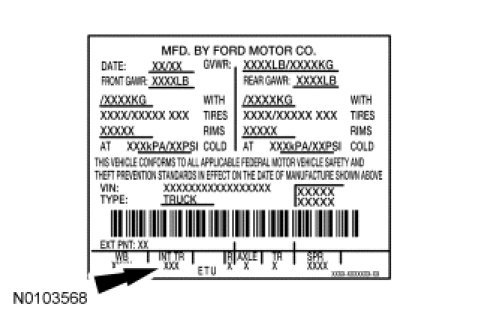

Interior Trim Codes





The interior trim codes are listed below. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.

Trim Codes
- 8 - Lozenge cloth seats

Interior Trim Color Codes
- K - Dark Gray

Tape and paint stripe codes do not apply.

Radio Codes





- 6 - AM/FM stereo
- D - Radio delete
- R - AM/FM stereo with CD player and audio jack

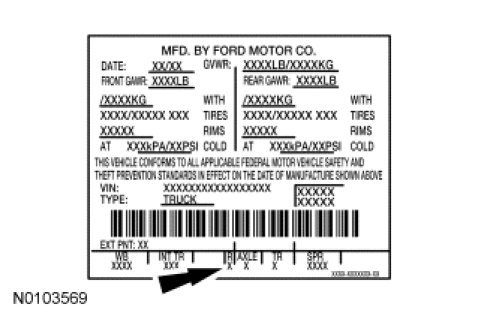

Axle Codes





The following lists the available axle ratio.

- 4 - 4.20 ratio

Additional axle information can be obtained from the axle tag. Refer to Differential Assembly &/or Axle Shaft Assembly &/or Drive/Propeller Shafts, Bearings and Joints.

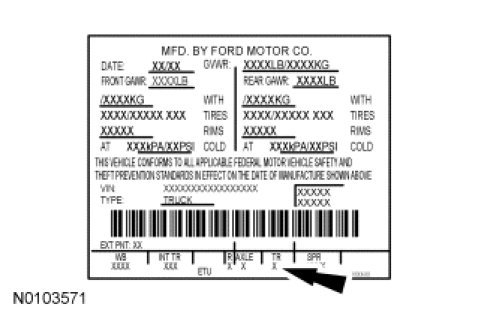

Transmission Codes





- 2 - 4-speed automatic (4F27E)

Additional transmission information can be obtained from the transmission tag. Refer to Automatic Transmission/Transaxle &/or Transmission Control Systems.

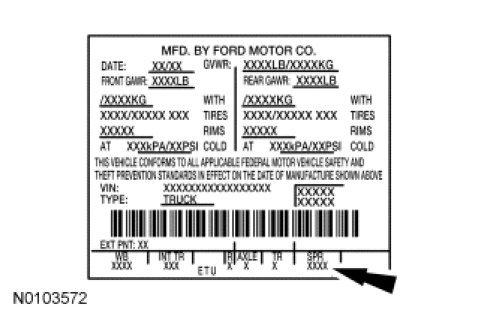

Spring Codes





Spring codes identify both front and rear springs. The first set of characters identify the front springs. The second set of characters identify the rear springs.

Front Springs
- DD - Base part number - 5310

Rear Springs
- GG - Base part number - 5560
