Body and Frame: Service Precautions

Welding Precautions - Steel

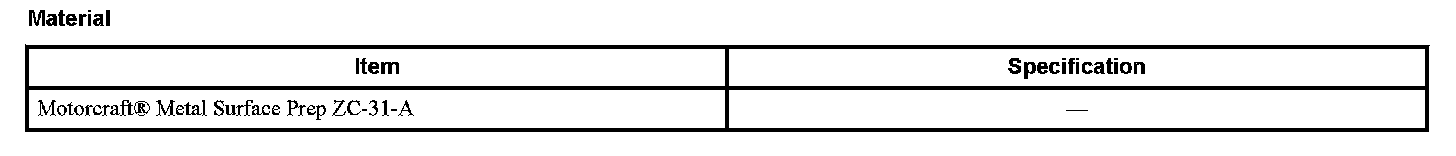

Material:

General Equipment
3 Phase Inverter Spot Welder 254-00002
I4 Inverter Spot Welder 254-00014
Compuspot 700F Welder 190-50080
Inverter Welder with MIG Welder 254-00015

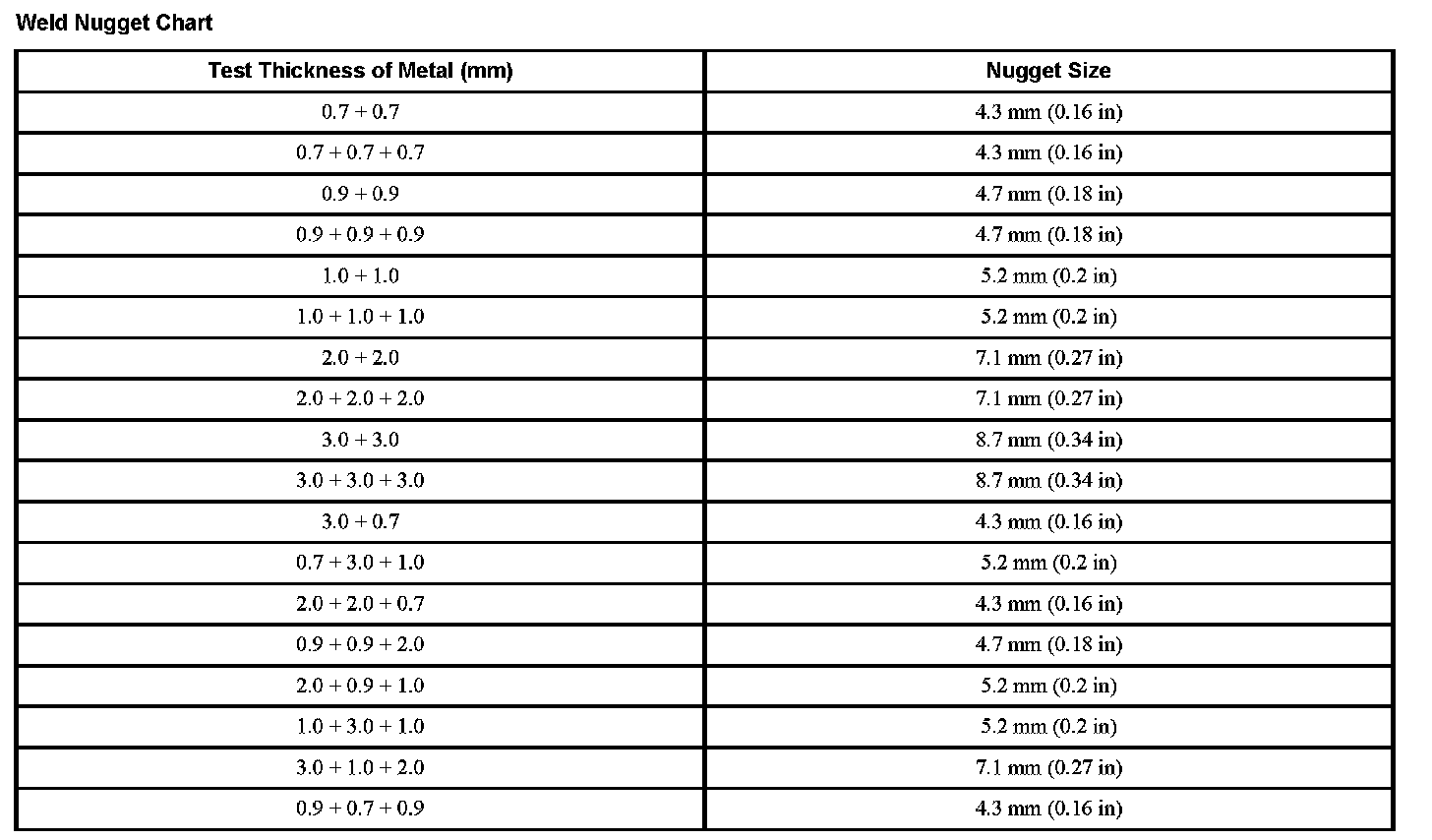

Weld Nugget Chart:

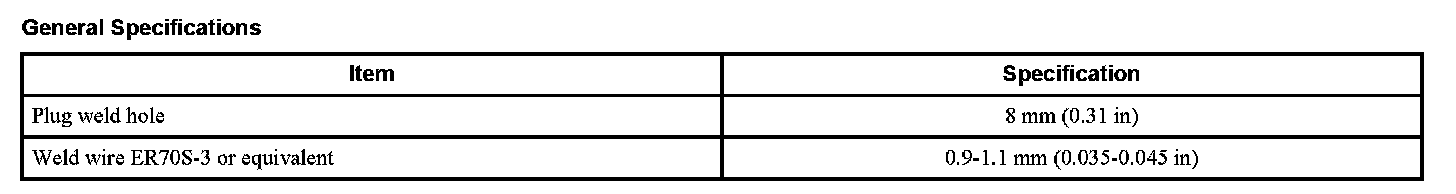

General Specifications:

WARNING:
- Invisible ultraviolet and infrared rays emitted in welding can injure unprotected eyes and skin. Always use protection such as a welder's helmet with dark-colored filter lenses of the correct density. Electric welding will produce intense radiation, therefore, filter plate lenses of the deepest shade providing adequate visibility are recommended. It is strongly recommended that persons working in the weld area wear flash safety goggles. Also wear protective clothing. Failure to follow these instructions may result in serious personal injury.
- Always wear protective equipment including eye protection with side shields, and a dust mask when sanding or grinding. Failure to follow these instructions may result in serious personal injury.

NOTE: When it is necessary to carry out weld bonding procedures, refer to Weld-Bonding.

The correct equipment and settings must be used when welding mild or high-strength steel. Metal Inert Gas (MIG) and Squeeze-Type Resistance Spot Welding (STRW) are the preferred methods. Surfaces must be clean and free of foreign materials.
- High-strength steel can be compromised by heat created by the welding process. It is critical to minimize heat affected zones when welding highstrength steel.
- A temperature indicating crayon calibrated to 650°C (1,200°F) or below, should be used to avoid overheating and weakening the metal.
- Correct eye protection must be worn.
- The correct protective clothing should always be worn.
- Adequate ventilation must be provided to avoid accumulation of poisonous gases.
- Clean the surface being welded with metal surface prep or equivalent. Surface contaminants can cause poor weld integrity.
- A test weld should always be carried out on a test sample.
- Use cleaning brushes and abrasive grinding wheels dedicated to the type of materials being welded.
- Follow equipment manufacturer's prescribed procedures and equipment settings for the type of welder being used. ER70S-2 or ER70S-6 wire are typically used for MIG welding steel.
- Disconnect the battery ground cable.
- Disconnect on-vehicle modules and protect them from possible heat damage and electrical currents when welding.
- Corrosion protection must be restored whenever bare metal repairs are made. Refer to Restoring Corrosion Protection Following Repair.
- Adequate power supply needs to be used to make sure of correct equipment performance.
- Factory spot welds may be substituted with either STRW or MIG plug welds. Spot/plug welds should equal factory welds in both location and quantity. Do not place a new spot weld directly over an original weld location. Plug weld hole should equal 8 mm (0.31 in) diameter.
