Body - Rear Cargo Door(s) Rattle

TSB 09-19-18

10/05/09

REAR CARGO DOOR RATTLE - BUILT BEFORE
6/1/2009

FORD:
2010 Transit Connect

ISSUE
Some 2010 Transit Connect vehicles built before 6/1/2009 may exhibit a rattle noise coming from the rear cargo doors. This may be due to metal on metal contact between one or more of the rear cargo door(s) latches and strikers - left hand (LH) upper latch, right hand (RH) upper latch or LH lower latch.

ACTION
Follow the Service Procedure steps to correct the condition.

SERVICE PROCEDURE

1. Align the rear cargo doors with the body, per Workshop Manual (WSM), Section 501-03.

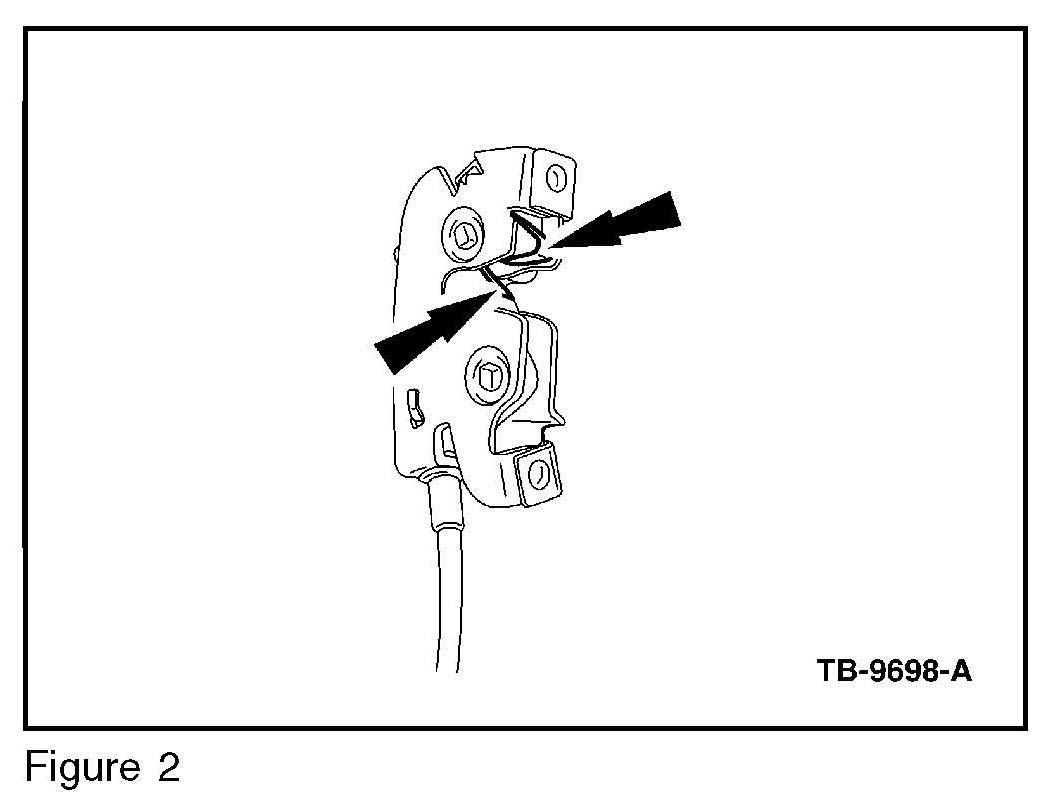

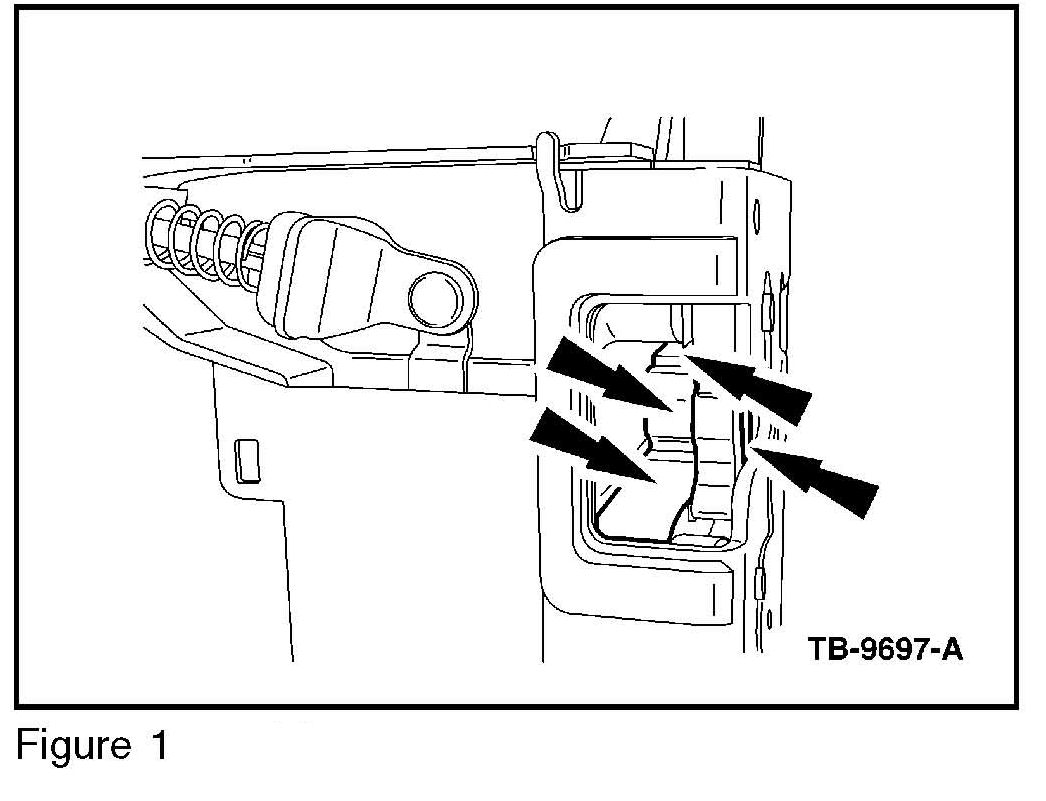

2. Apply Krytox grease (Rotunda part number 164-R4906 - 1-800-768-8632 option 3) to the latches as illustrated. (Figures 1 and 2)

3. Use chassis ears to determine that the cargo door latch is the source of the noise by connecting the leads to the cargo door strikers.

a. If the noise is resolved, no further action is required.

b. If the noise is still present, proceed to Step 4.

4. Replace the affected latch or latches per WSM, Section 501-14.

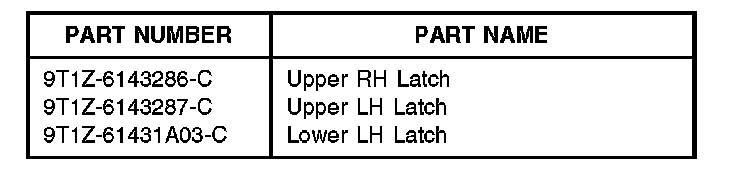

Parts Block

WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
IMPORTANT: Warranty coverage limits/policies are not altered by a TSB. Warranty coverage limits are determined by the identified causal part.

OPERATION DESCRIPTION TIME

091918A 2010 Transit Connect: 1.1 Hrs.
Includes Time To Align
Rear Cargo Doors, Grease
Latches, Connect Chassis
Ears And Road Test. Can
Be Used With Operations
B, C, And D (Do Not Use
With 22600D)

091918B 2010 Transit Connect: 0.5 Hr.
Replace Upper RH Side
Door Latch, Includes Time
To Remove and Install
Lower RH Side Door
Latch. Can Be Used With
Operation A, C, and D (Do
Not Use With 22600D)

091918C 2010 Transit Connect: 0.3 Hr.
Replace Lower LH Side
Door Latch. Can Be Used
With Operation A, B, and
D (Do Not Use With
22600D)

091918D 2010 Transit Connect: 0.3 Hr.
Replace Upper LH Side
Door Latch. Can Be Used
With Operation A, B, and
C (Do Not Use With
22600D)

DEALER CODING
CONDITION
BASIC PART NO. CODE
V43286 42
