Bumper - Exploded View, Front




Bumper - Exploded View, Front

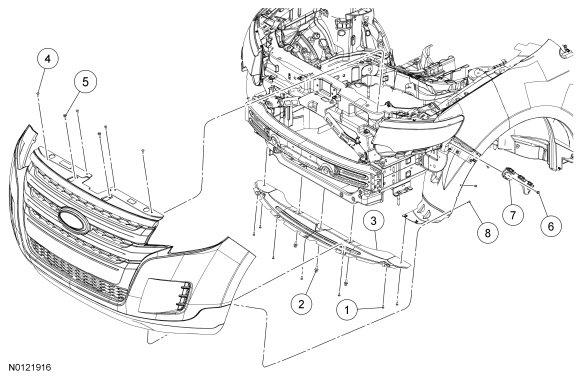

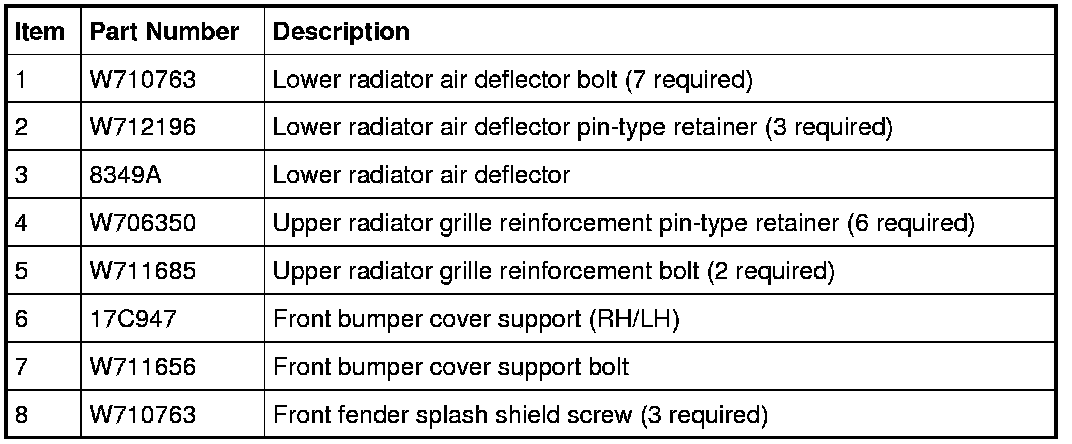

Edge Front Bumper Cover Assembly

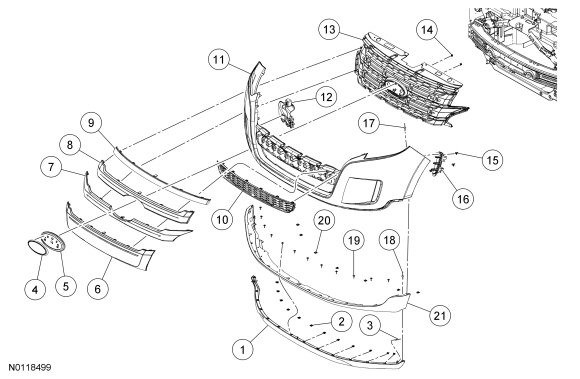

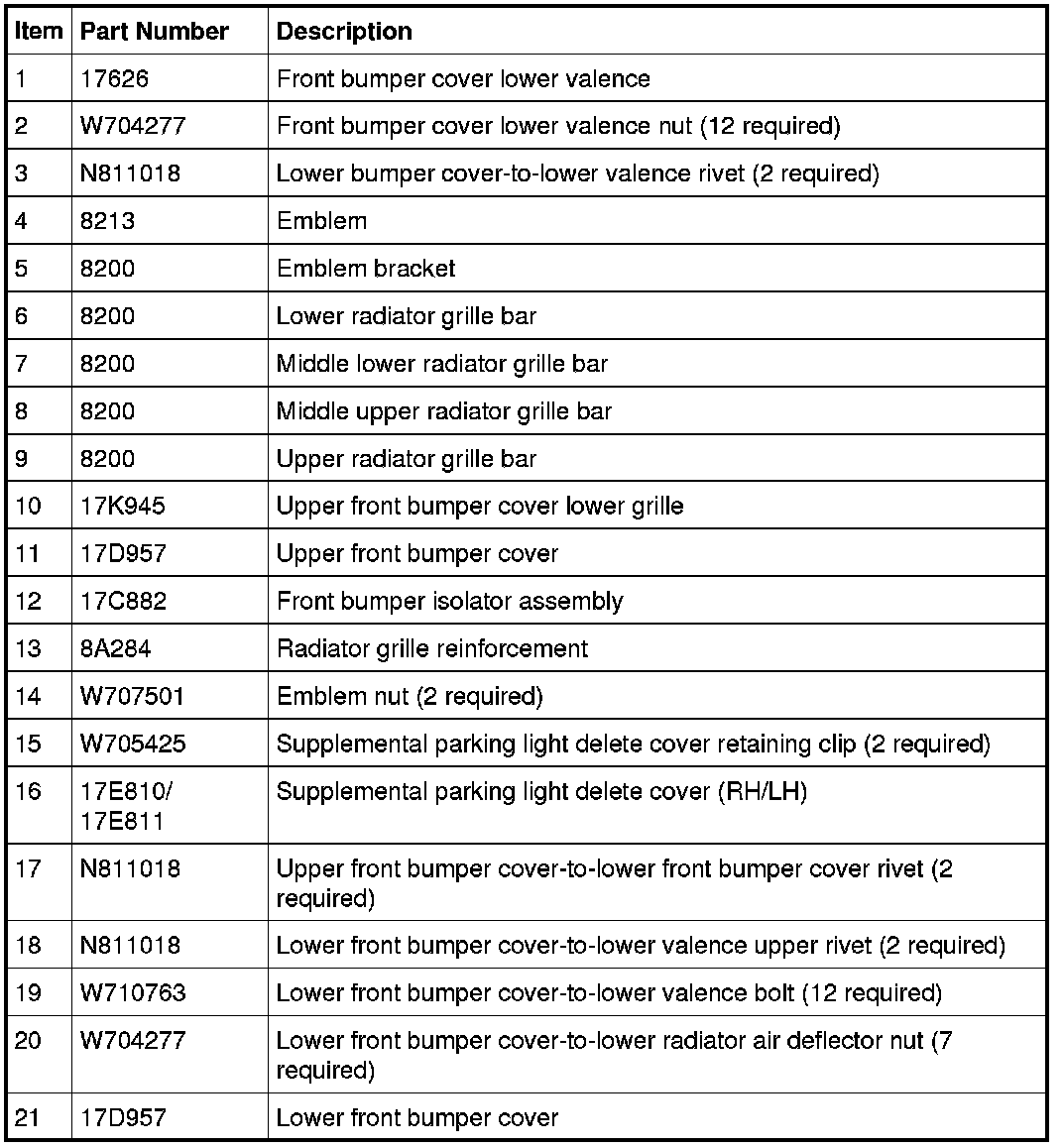

Edge Front Bumper Cover Components

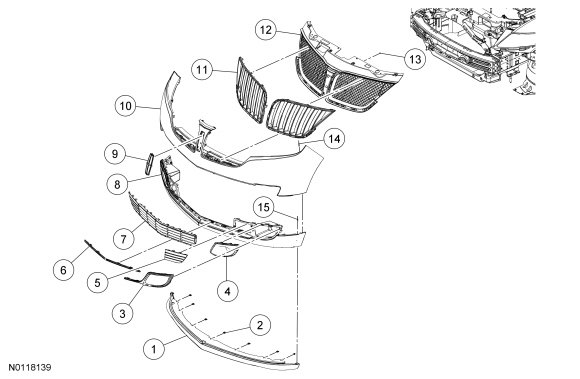

MKX Front Bumper Cover Assembly










MKX Front Bumper Cover Components
