Instrument Panel Cluster (IPC) Dealer Test Mode

Instrumentation, Message Center and Warning Chimes

Instrument Panel Cluster (IPC) Dealer Test Mode

To enter the IPC self-diagnostic mode, begin with the ignition key in the OFF mode. Press and hold the RH steering wheel switch OK button (optional IPC) or the LH steering wheel switch OK (base IPC). Place the ignition in the ON mode and hold the button until the display indicates ENGINEERING TEST MODE, usually within 3 to 5 seconds. Press the up or down arrow buttons to navigate through each of the display windows. To exit the IPC self-test mode, press and hold the OK button for 3-5 seconds or place the ignition OFF.

The dealer test mode displays multiple items in a viewing window on the RH side of the IPC. Each button press advances the viewing window to the next set of items.

NOTE: Some of the displays listed in the table below use xxx's to represent a numeric or alpha-numeric value. The value may display the same amount of characters represented by the xxx's or there may be more/less depending on the type of display. For example: DTC HIST CURR xxxxxx x x may display DTC HIST CURR C10000 X. Note that there were 8 x's in the display description but only 7 digits in the actual display.

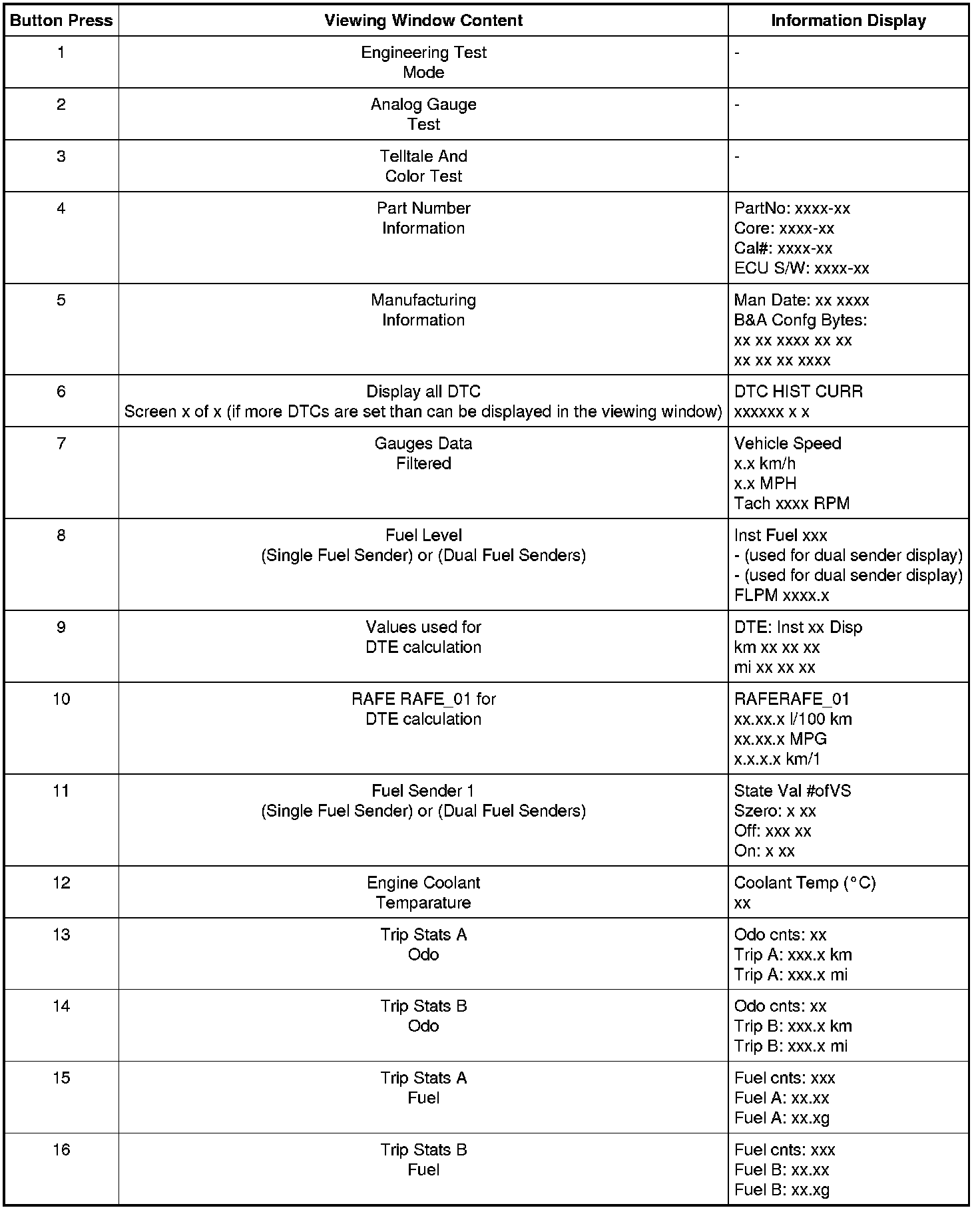

NOTE: The table below lists the displays as they appear when navigating using the down arrow button.
