Ford Truck
>>
2011
>>
Edge AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment System Control Panel
>>

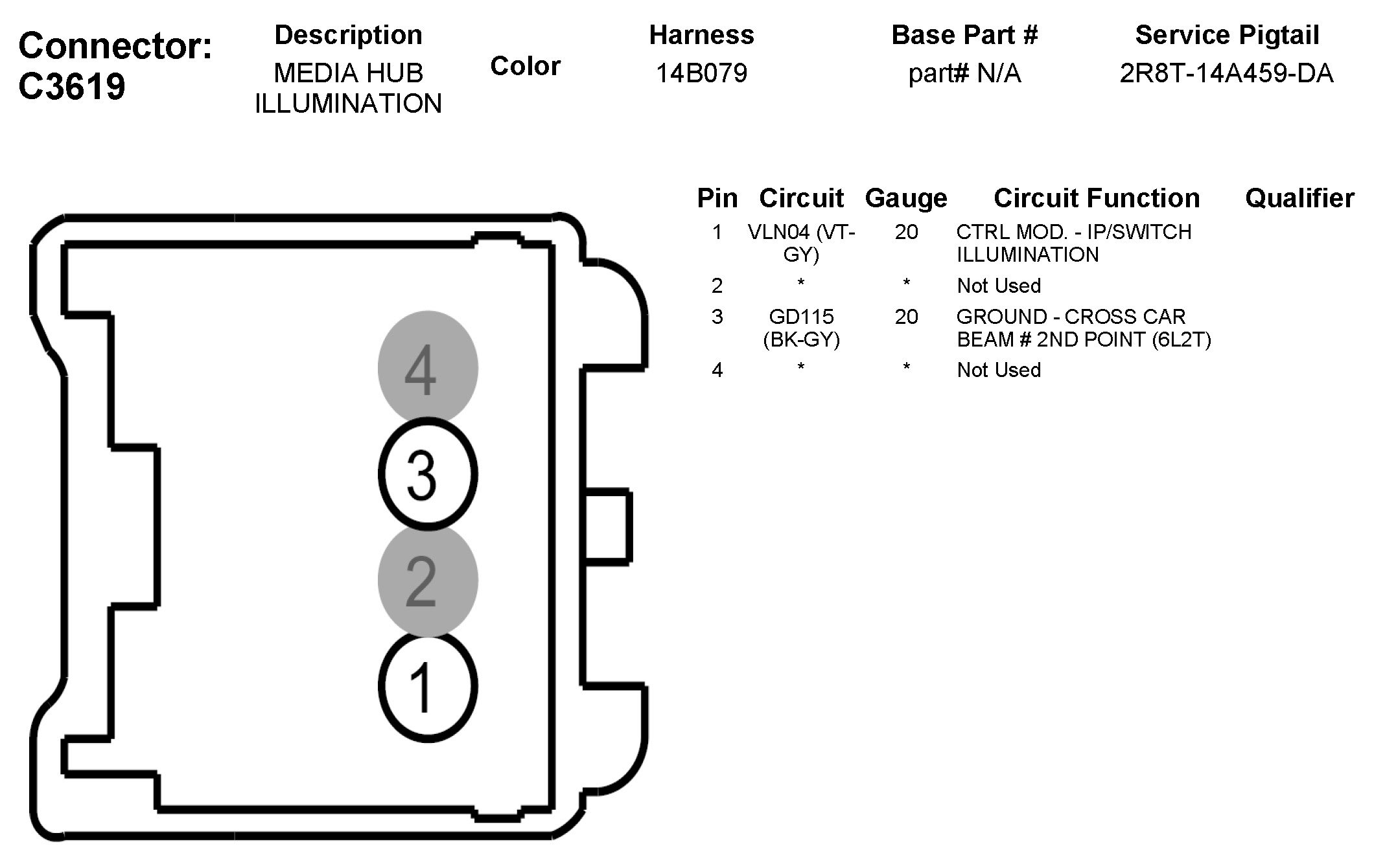

C3619 Media Hub Illumination
C3619 Media Hub Illumination
