Ford Truck
>>
2011
>>
Edge AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>

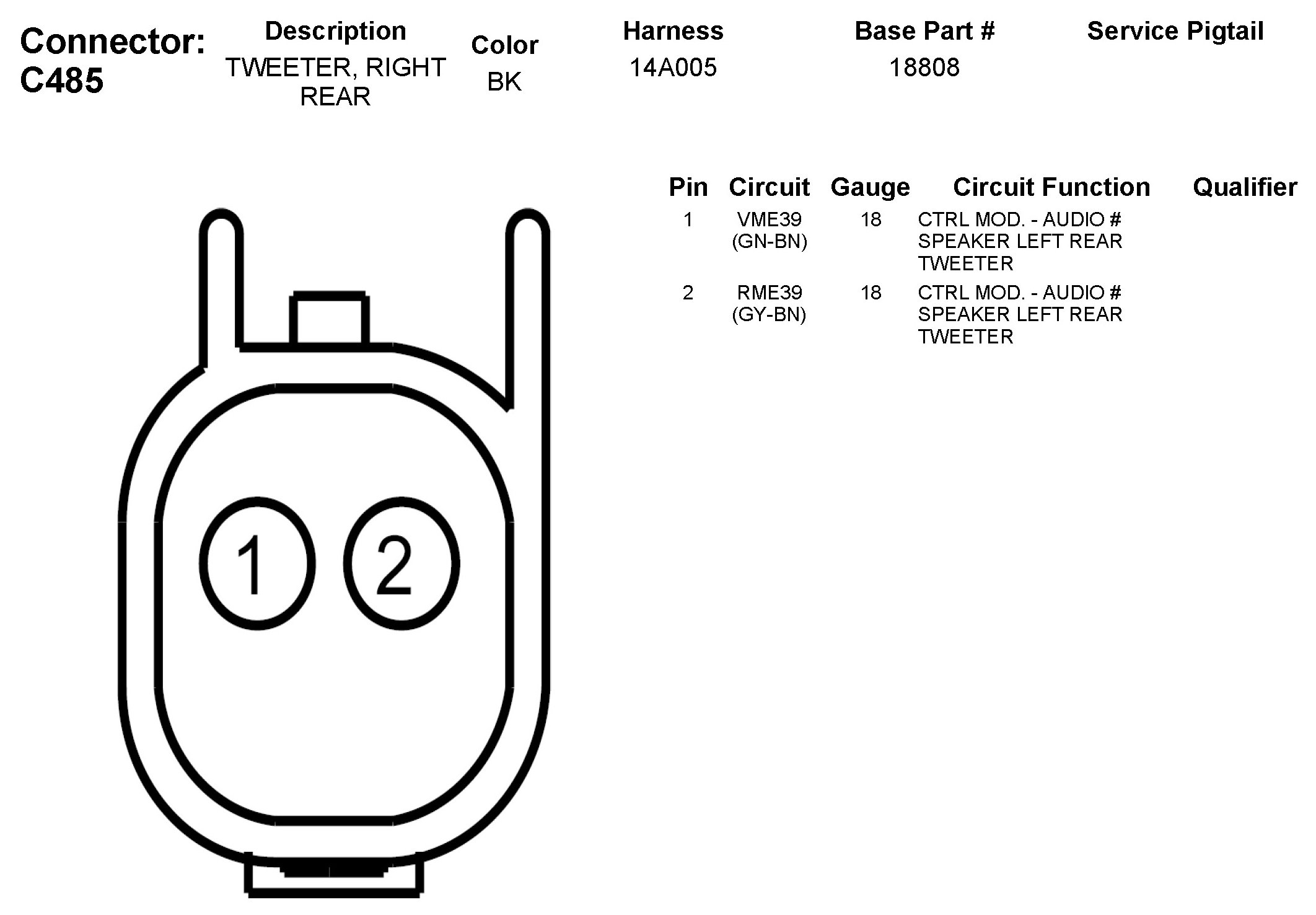

C485 Tweeter, Right Rear
C485 Tweeter, Right Rear
