Utility Storage Compartment




Instrument Panel - Exploded View

Edge Instrument Panel

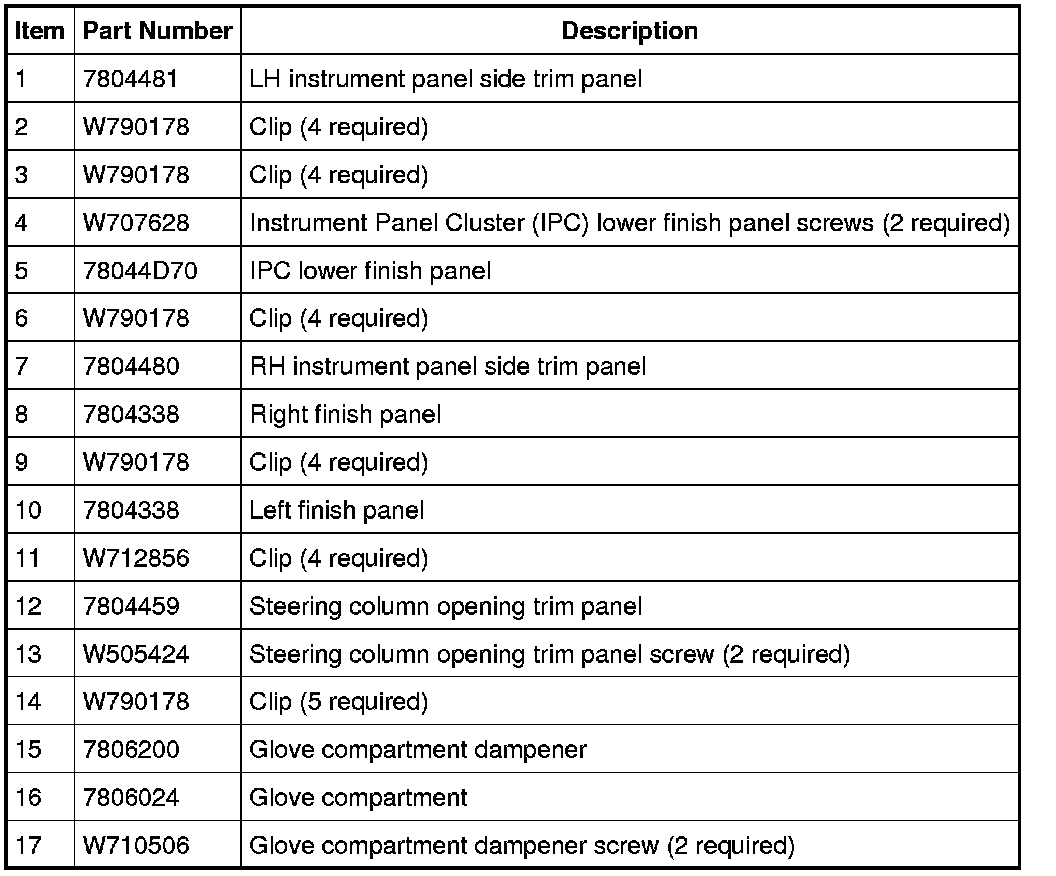

Edge Instrument Panel Fasteners

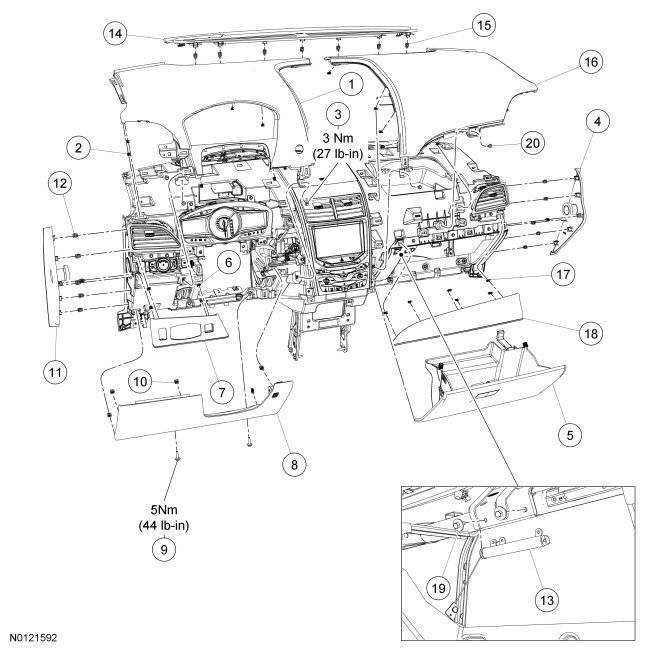

MKX Instrument Panel

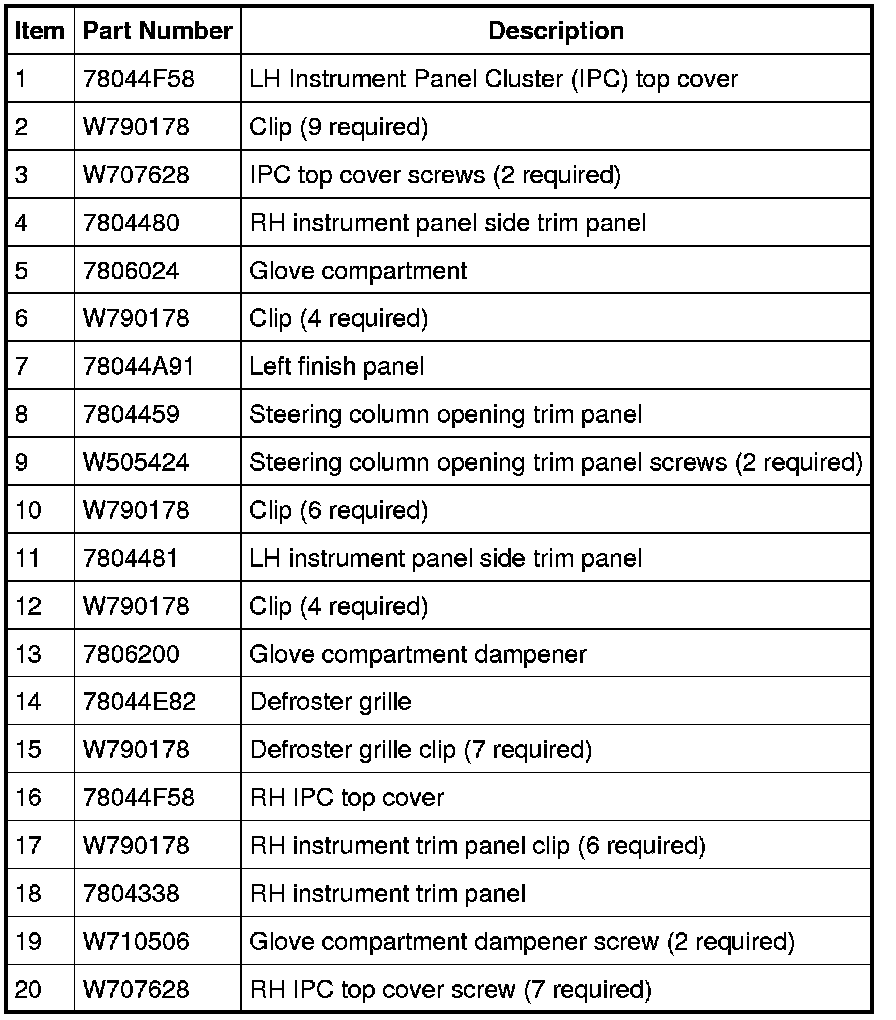

MKX Instrument Panel Fasteners
