Instrument Panel - Exploded View




Instrument Panel - Exploded View

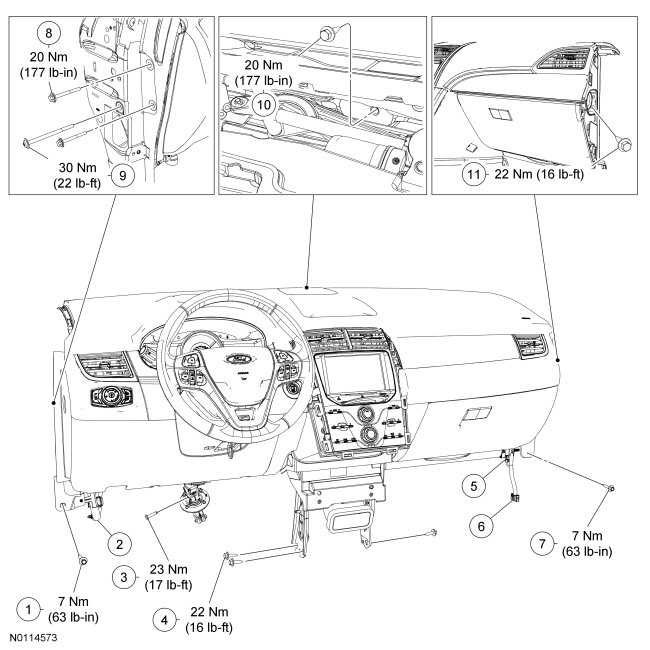

Edge Instrument Panel

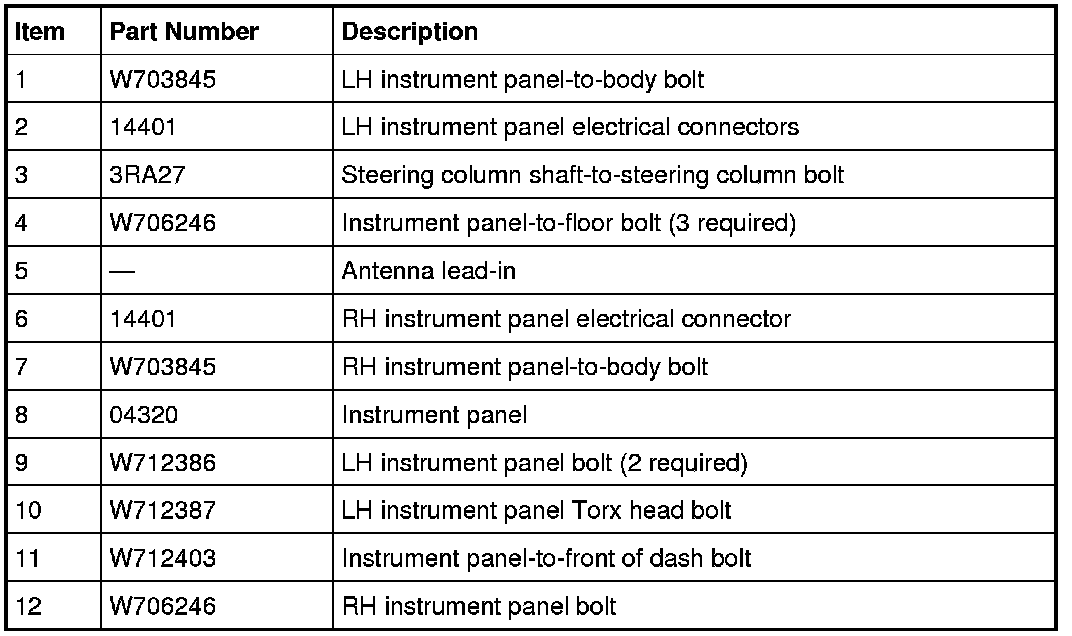

Edge Instrument Panel Fasteners










MKX Instrument Panel










MKX Instrument Panel Fasteners
