Auxiliary Step / Running Board: Service and Repair

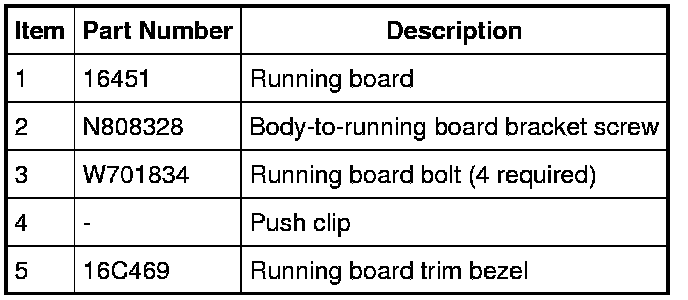

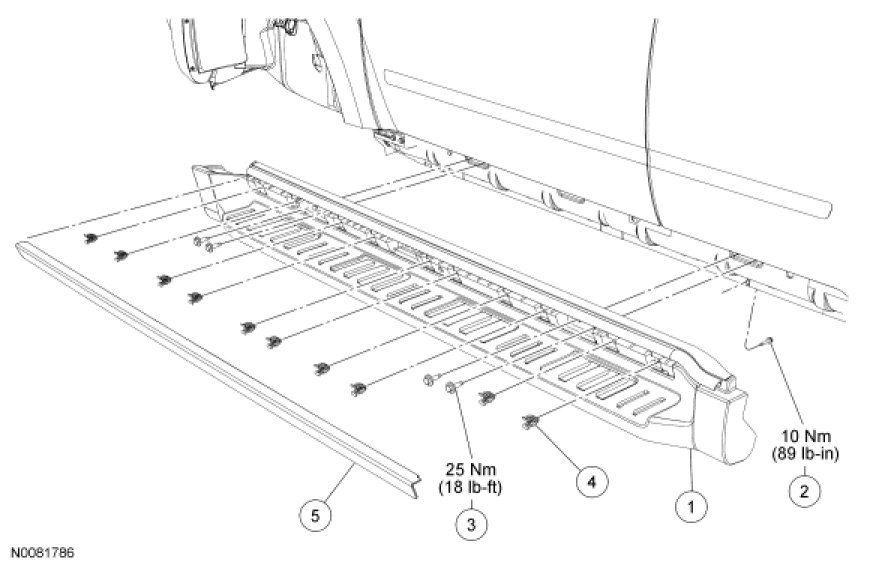

Running Board









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Release the running board trim bezel push clips and remove the running board trim bezel.

3. Remove the 4 running board bolts and remove the running board.
- To install, tighten to 25 Nm (18 lb-ft).

4. Remove the body-to-running board bracket screw.
- To install, tighten to 10 Nm (89 lb-in).





5. To install, reverse the removal procedure.
