Ford Truck
>>
2011
>>
Escape 4WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

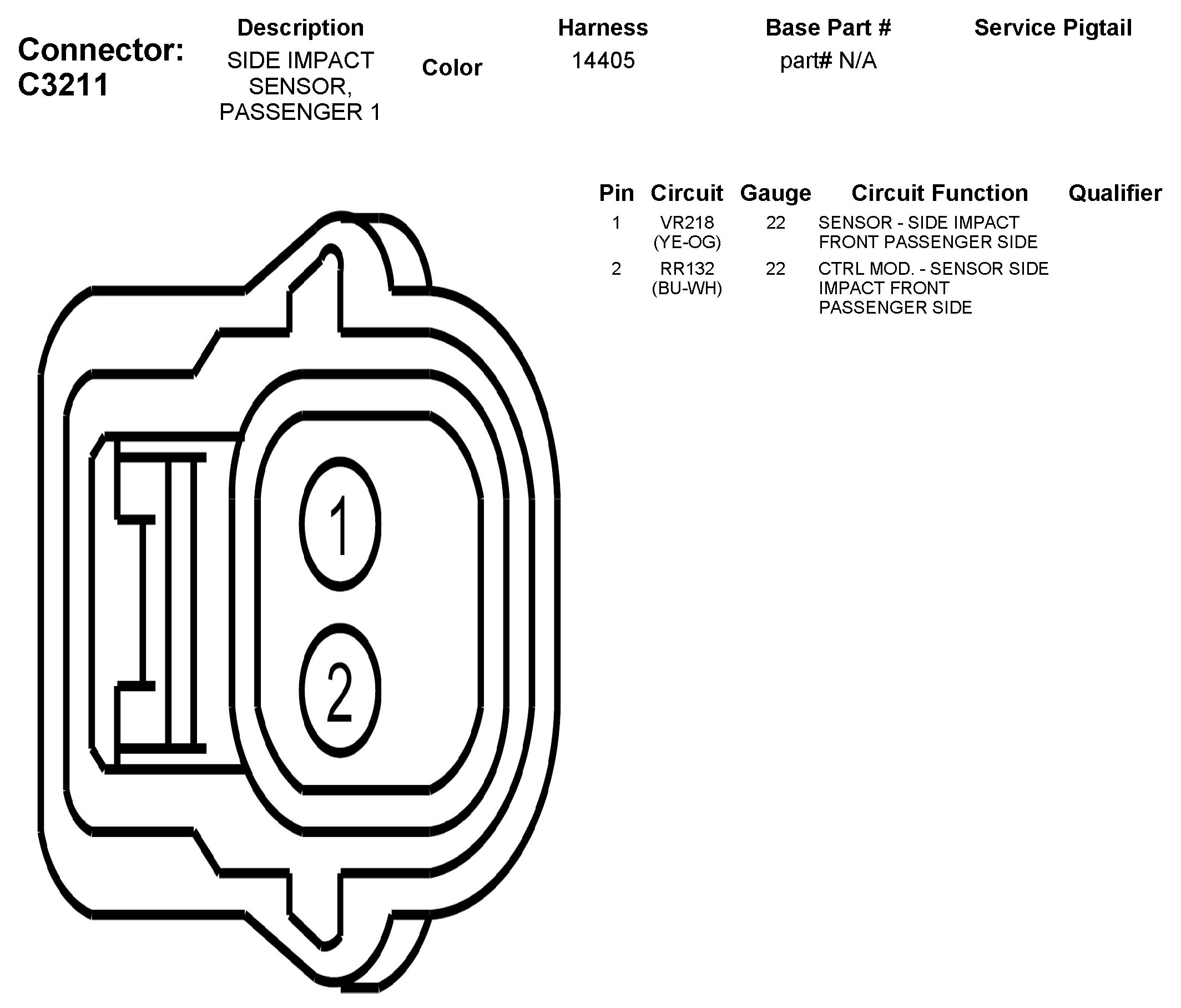

C3211 Side Impact Sensor, Passenger 1
C3211 Side Impact Sensor, Passenger 1
