Seating - 1st Row - Climate Controlled




Seating - Climate Controlled

Overview

The climate controlled seat system is able to heat and cool the front seats. Each climate controlled seat is operated by activating buttons on the FDIM (Front Display Interface Module) (touchscreen interface). Each front seat temperature is then monitored and controlled by the DCSM (Dual Climate Controlled Seat Module) located on the front passenger seat track.

The dual climate controlled seat system contains the following components:
- FDIM (Front Display Interface Module) (touchscreen)
- DCSM (Dual Climate Controlled Seat Module)
- TED (Thermo-Electric Device) and blower assembly within each front seat cushion and backrest
- air filter attached to each TED (Thermo-Electric Device) and blower assembly (for cushion TED (Thermo-Electric Device), turn to the left to remove the filter) (backrest TED (Thermo-Electric Device) filter is not serviceable)
- cushion TED (Thermo-Electric Device) adapter attached to the cushion frame
- cushion and backrest manifolds
- cushion and backrest foam pads
- cushion and backrest trim covers

Remote Start Climate Operation (if equipped)

The customer can select different climate control modes/preferences when the vehicle is started using the remote start feature. This can be accessed through the message center. For additional information on how to set the remote start preferences, refer to the Owner's Literature. When the driver seat and/or passenger seat is set to AUTO mode, the driver/passenger heated/climate controlled seat activates in full heat mode when the outside temperature is less than 0 C (32 F) and full cool mode (climate controlled seats only) when outside temperature is greater than 26.7 C (80 F) any time the vehicle is started using the remote start feature. No heated/climate controlled seat adjustments are recognized during remote start operation. Once the ignition is cycled to the ON position, the heated/climate controlled seat returns to the previous settings (last ignition ON cycle) and adjustments can be made normally. If the previous setting was off, the heated/climate controlled seat turns off.

System Operation

System Diagram





Network Message Chart

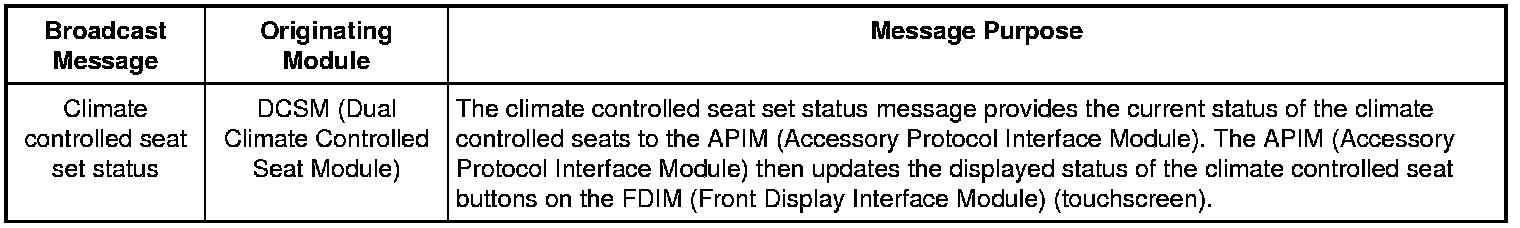

DCSM (Dual Climate Controlled Seat Module) Network Input Messages

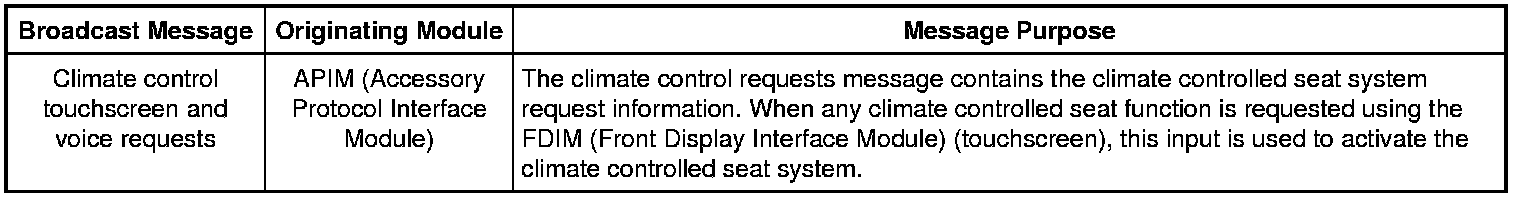

APIM (Accessory Protocol Interface Module) Module Network Input Messages






When the climate control seat buttons are activated on the touchscreen interface, the APIM (Accessory Protocol Interface Module) sends the climate controlled seat commands to the FCIM (Front Controls Interface Module) using the I-CAN (Infotainment Controller Area Network). The FCIM (Front Controls Interface Module) sends the request message to the IPC (Instrument Panel Cluster) using the I-CAN (Infotainment Controller Area Network). The IPC (Instrument Panel Cluster) sends the request message to the BCM (Body Control Module) over the HS-CAN (High Speed Controller Area Network). Finally, the BCM (Body Control Module) sends the climate controlled seat commands to the DCSM (Dual Climate Controlled Seat Module) using the MS-CAN (Medium Speed Controller Area Network).

Climate Controlled Seat System

The seat cushion is equipped with a TED (Thermo-Electric Device) assembly that includes a seat blower (fan motor, serviced as an assembly with the TED (Thermo-Electric Device)). Similarly, the seat backrest is also equipped with its own TED (Thermo-Electric Device) assembly with blower. Cabin air is drawn through the blower and distributed to each TED (Thermo-Electric Device) located in the seat cushion and backrest. The TEDs (Thermo-Electric Devices) heat or cool the air, which is then directed into the foam pad and manifold where it is distributed along the surface of the cushion and backrest of the seat. Once the system is activated, the DCSM (Dual Climate Controlled Seat Module) uses a set of flexible algorithms to control the heating/cooling modes and the blower speed dependant on the commanded climate controlled seat settings.

The DCSM (Dual Climate Controlled Seat Module) monitors seat cushion temperature while it supplies voltage and ground to both blower motors. The DCSM (Dual Climate Controlled Seat Module) also supplies a variable voltage signal to control the blower speed. Cabin air enters the blower through a filter attached to the TED (Thermo-Electric Device) housing. Heated or cooled air exits the TED (Thermo-Electric Device) and flows through a manifold attached to the foam pad.

Climate Controlled Seat Heating Characteristics

- In heat mode, the TED (Thermo-Electric Device) can add up to 40-60 C (72-108 F) to the ambient inlet air temperature as it passes over the TED (Thermo-Electric Device).
- The system control settings are indicated next to each climate controlled seat heat switch button on the touchscreen. The first setting is HIGH (3 indicators), the second setting is MED (2 indicators) and the third is LOW (1 indicator) then OFF (no indicators).
- When heating, the DCSM (Dual Climate Controlled Seat Module) varies the speed of the blowers and the TED (Thermo-Electric Device) duty cycle in order to reach and maintain the desired temperature determined by the switch setting.

Climate Controlled Seat Cooling Characteristics

- In cool mode, the TED (Thermo-Electric Device) can remove up to 8 C (14 F) from the ambient air temperature entering the system.
- The system control settings are based on the 3 indicators next to each climate controlled seat cool switch button on the touchscreen. The first setting is HIGH (3 indicators), the second setting is MED (2 indicators) and the third is LOW (1 indicator) then OFF (no indicators).
- When cooling, the DCSM (Dual Climate Controlled Seat Module) maintains constant speed of the blowers and constant TED (Thermo-Electric Device) supply voltage (duty cycle is determined by the switch setting) in COOL mode.

Climate Controlled Seat Recovery Mode

NOTE: The presence of overtemperature faults ( DTCs (Diagnostic Trouble Codes) B2729, B2730, B272A and B272B) can be induced by incorrectly operating the climate controlled seat system after an initial heat setting has been attained. If a heat setting is repeatedly turned off and on in an attempt to increase the seat temperature or repeatedly toggled between heat and cool modes, an overtemperature condition can result and the DTCs (Diagnostic Trouble Codes) may be set.

If the temperature at one of the TEDs (Thermo-Electric Devices) rises above 110 C (229.8 F) in the heat mode or 65 C (148.9 F) in the cool mode for more than 4 seconds, the DCSM (Dual Climate Controlled Seat Module) records an overtemperature DTC (Diagnostic Trouble Code), removes voltage from the TEDs (Thermo-Electric Devices) and goes into recovery mode (blower only) for 30 seconds to cool down the TEDs (Thermo-Electric Devices). The same occurs if a temperature difference of 60 C (108 F) or greater is seen between the backrest and cushion TEDs (Thermo-Electric Devices) on either front seat. The DCSM (Dual Climate Controlled Seat Module) continues to monitor the TEDs (Thermo-Electric Devices) while in recovery mode. If the temperature of the TEDs (Thermo-Electric Devices) does not drop to 105 C (220.8 F) in the heat mode or 60 C (139.9 F) in the cool mode after 30 seconds, the system continues to cool the TEDs (Thermo-Electric Devices) in recovery mode for up to 5 minutes. If the TEDs (Thermo-Electric Devices) cool down after 30 seconds, but before 5 minutes (checked at 4 second intervals), the system operates as normal. An overtemperature DTC (Diagnostic Trouble Code) is still recorded even if the system recovers and is operating normally. This is more likely to occur during extreme cabin temperatures with significant seat back sun load. If the system does not recover within 30 seconds in heat mode or within 5 minutes in cool mode, the DCSM (Dual Climate Controlled Seat Module) disables that seat (fault mode) and remains off until the ignition is cycled. Also, if the DCSM (Dual Climate Controlled Seat Module) detects temperature differential fault twice during the same ignition cycle, the DCSM (Dual Climate Controlled Seat Module) disables the seat. When a fault causes a shutdown, the climate controlled seat indicators turn off and that seat is not operational until the next key cycle.

Component Description

Dual Climate Controlled Seat Module (DCSM)

The DCSM (Dual Climate Controlled Seat Module) controls the operation of the climate controlled seat system. The DCSM (Dual Climate Controlled Seat Module) communicates on the MS-CAN (Medium Speed Controller Area Network). PMI (Programmable Module Installation) must be carried out using a scan tool when installing a new DCSM (Dual Climate Controlled Seat Module).

Front Display Interface Module (FDIM)

The FDIM (Front Display Interface Module) (touchscreen) contains the climate seat control buttons. For additional information, REFER to Front Display Interface Module (FDIM) Information and Entertainment Systems - Premium Plus (if equipped with Premium Plus) or REFER to Front Display Interface Module (FDIM) Information and Entertainment Systems - Sony Sound (if equipped with Sony(R) Sound).

Thermo-Electric Device

The seat cushion and backrest are each equipped with a TED (Thermo-Electric Device) assembly that includes a seat blower (fan motor, serviced as an assembly with the TED (Thermo-Electric Device)). There is also a temperature sensor (thermistor) in each TED (Thermo-Electric Device) which provides feedback to the DCSM (Dual Climate Controlled Seat Module). The TEDs (Thermo-Electric Devices) are controlled by the DCSM (Dual Climate Controlled Seat Module).
