Ford Truck
>>
2011
>>
Explorer FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
>>

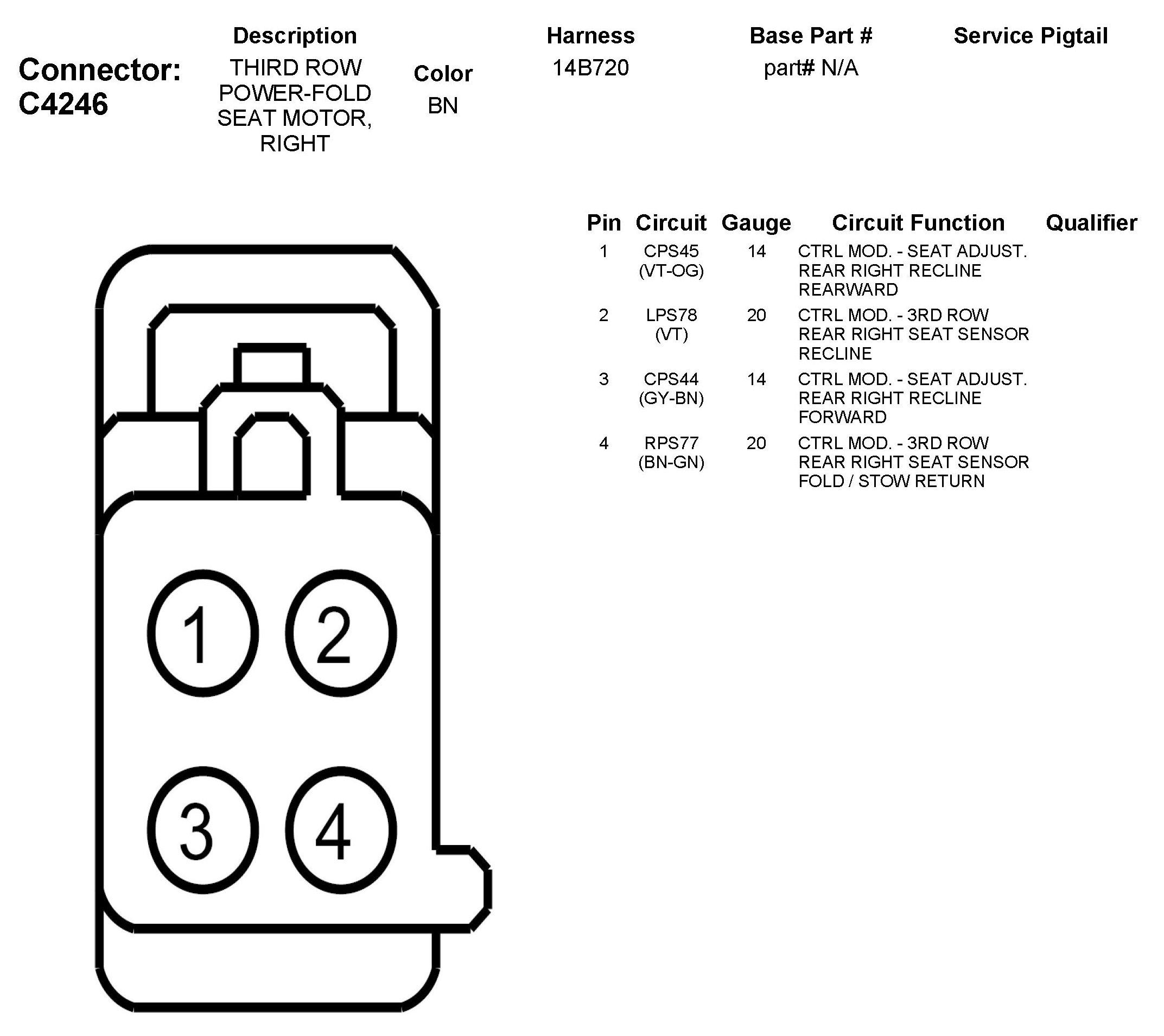

C4246 Third Row Power-Fold Seat Motor, Right
C4246 Third Row Power-Fold Seat Motor, Right
