Diagrams
>>
Connectors
Connectors

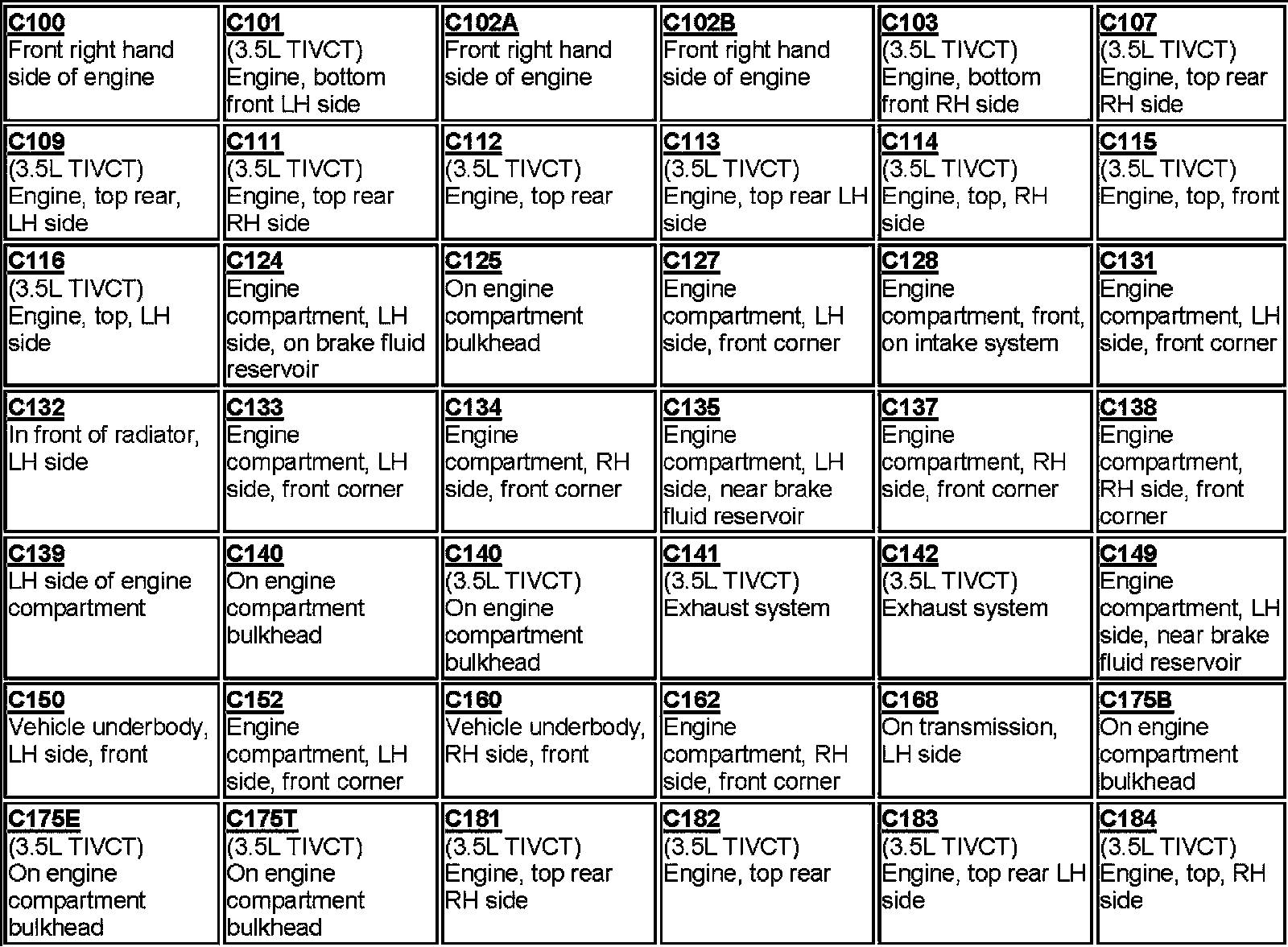

C100-C184:
C185-C236:

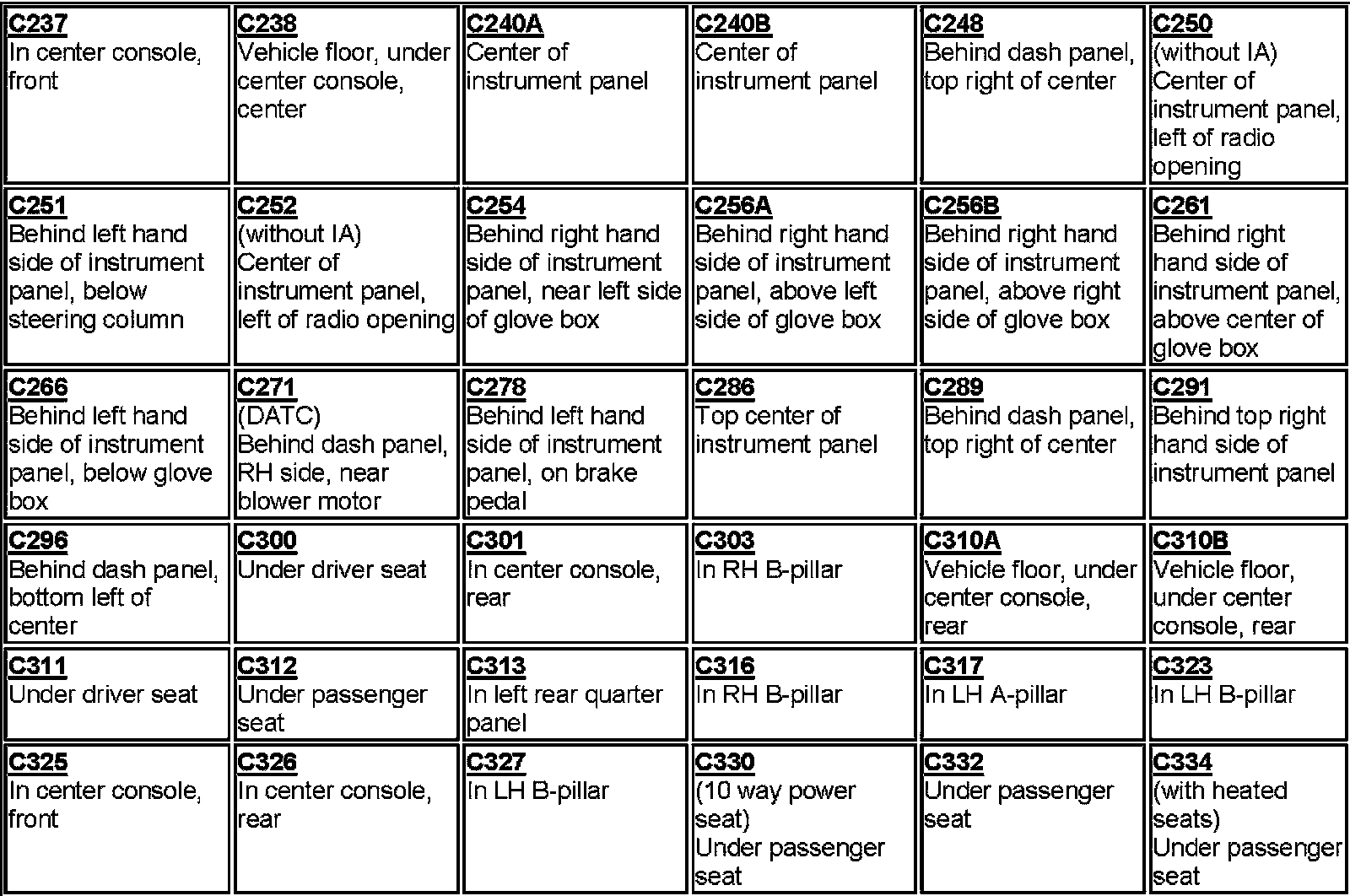

C237-C334:
C335-C475:
C476-C935:

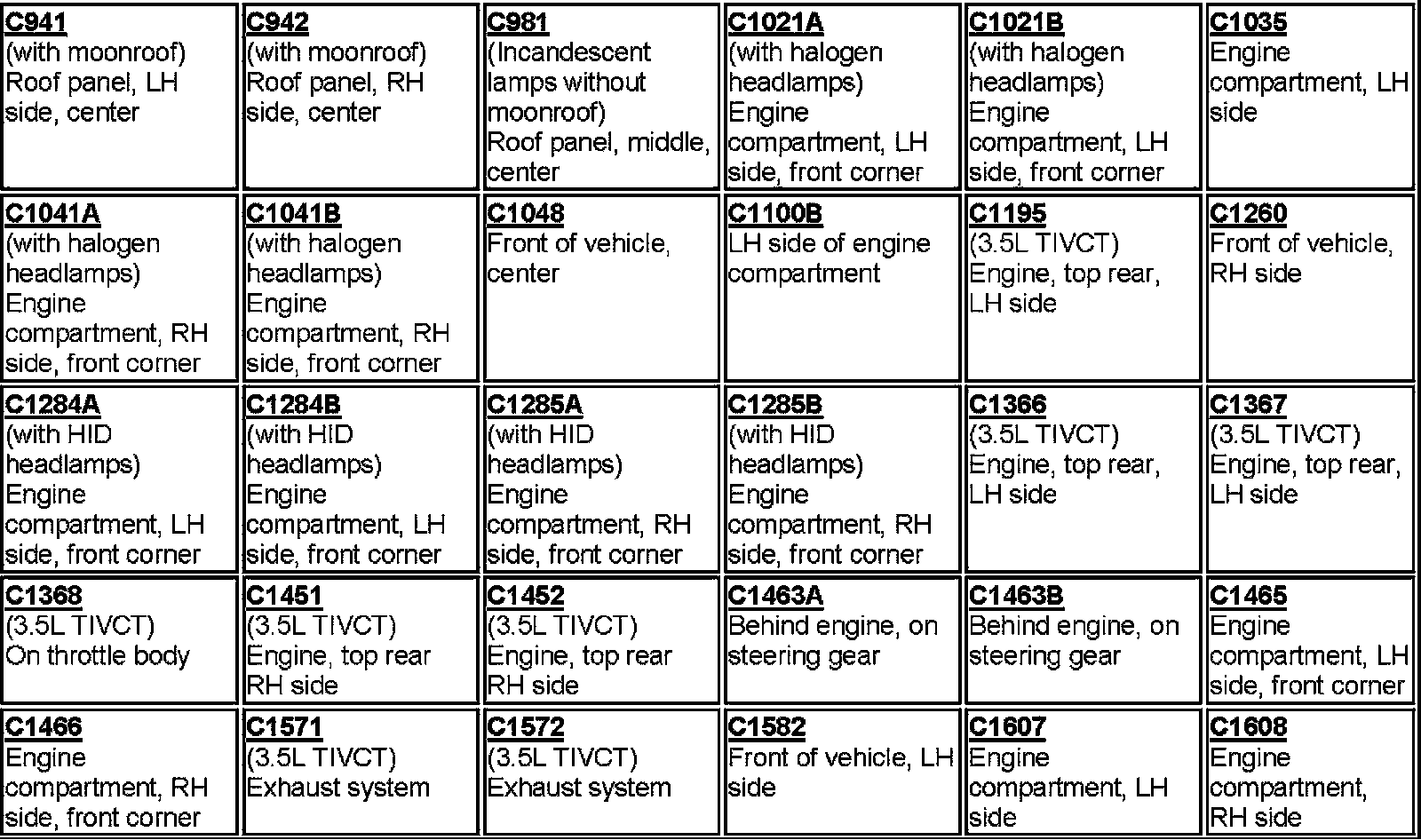

C941-C1608:
C1610-C2280G:
C2356-C3050:

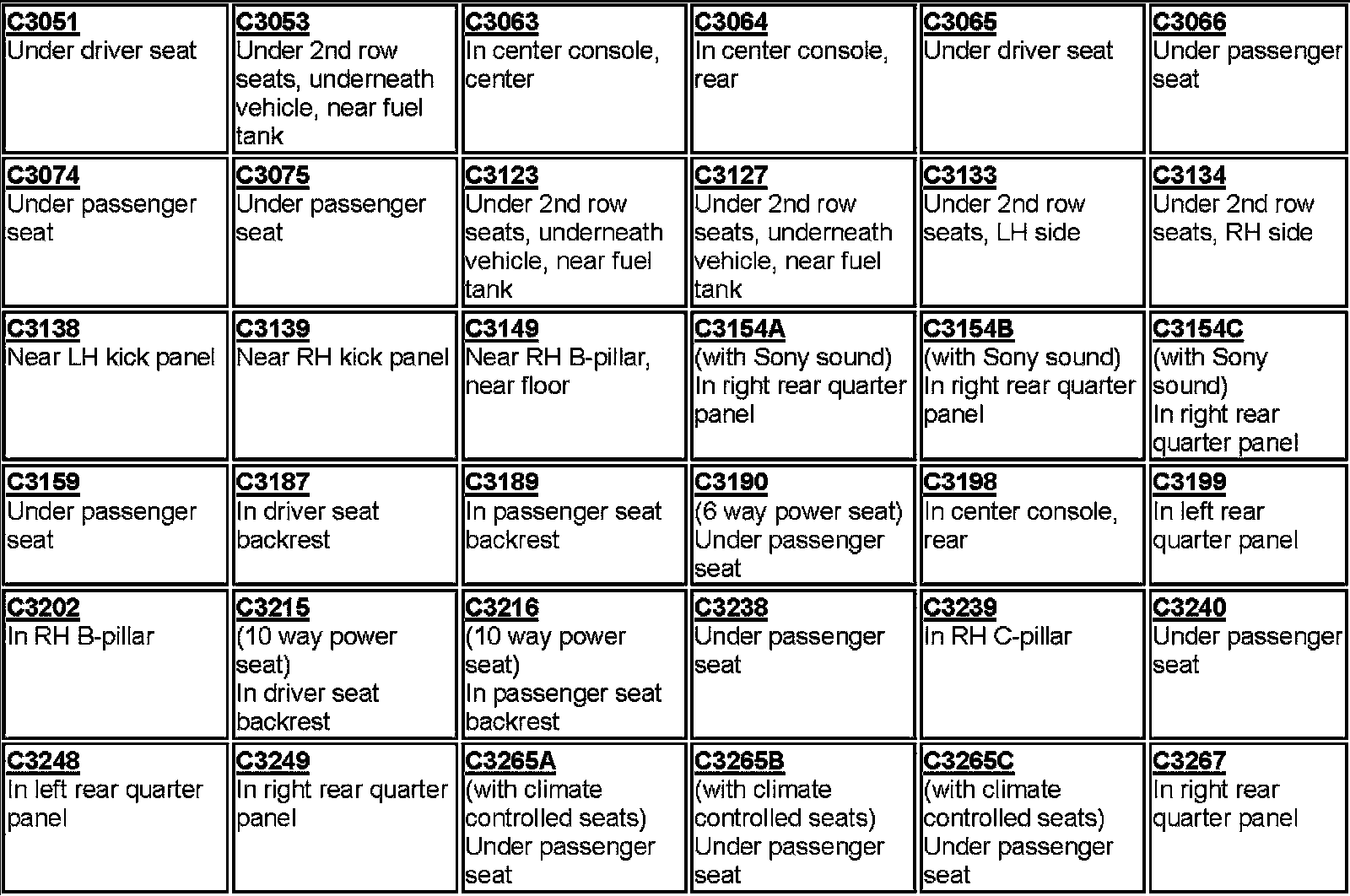

C3051-C3267:

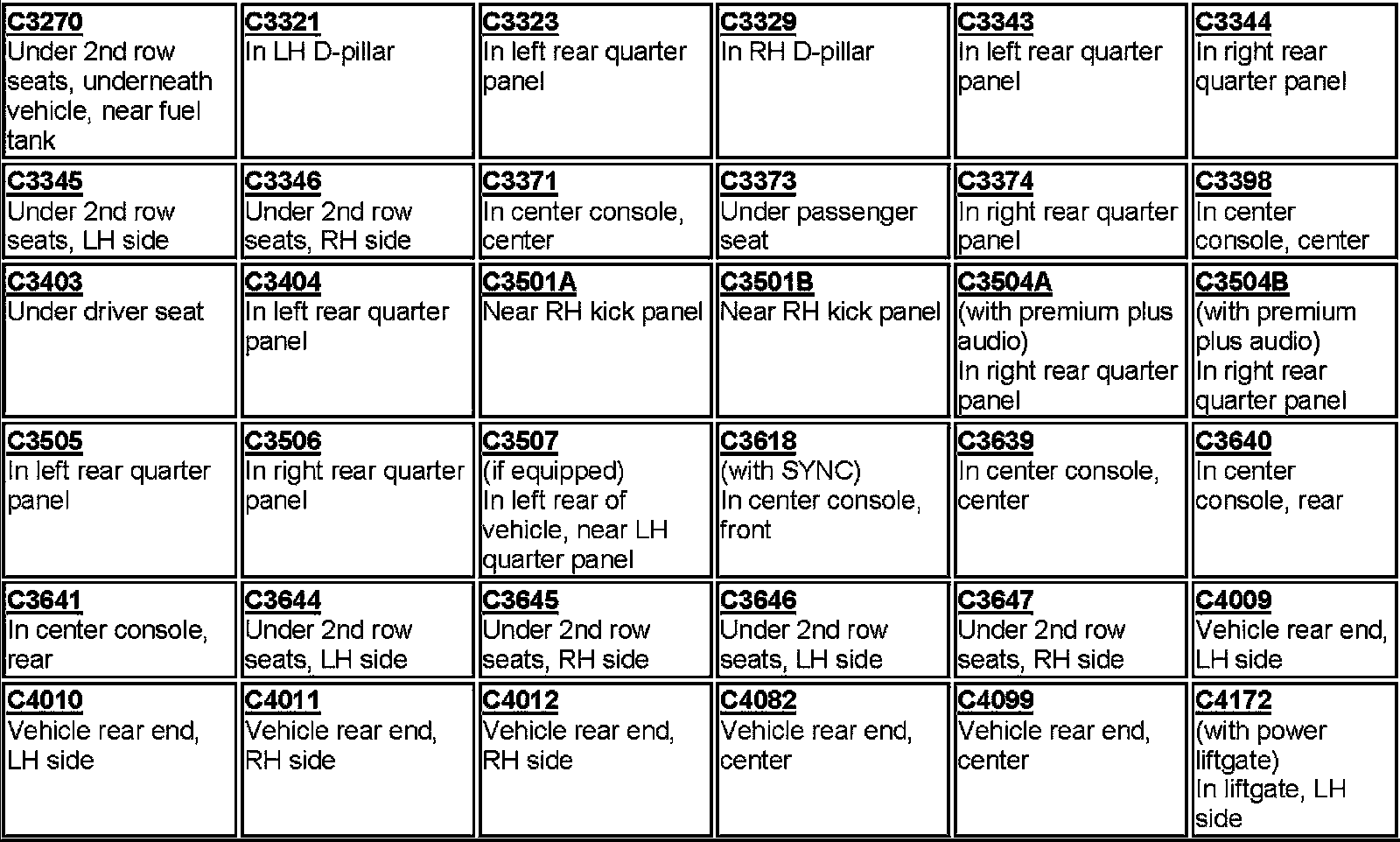

C3270-C4172:

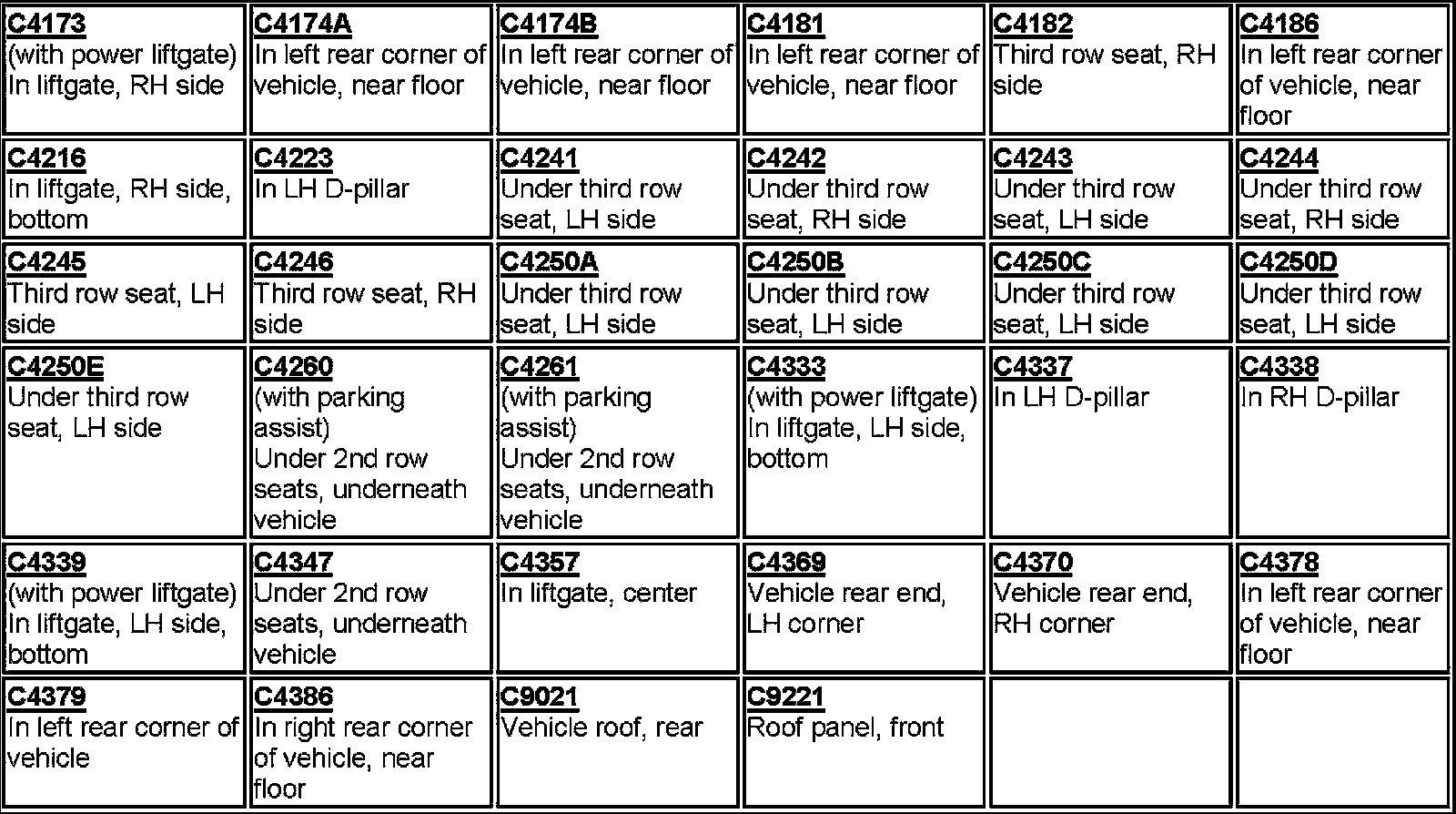

C4173-C9221:
