Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2011
>>
Explorer FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
Splices

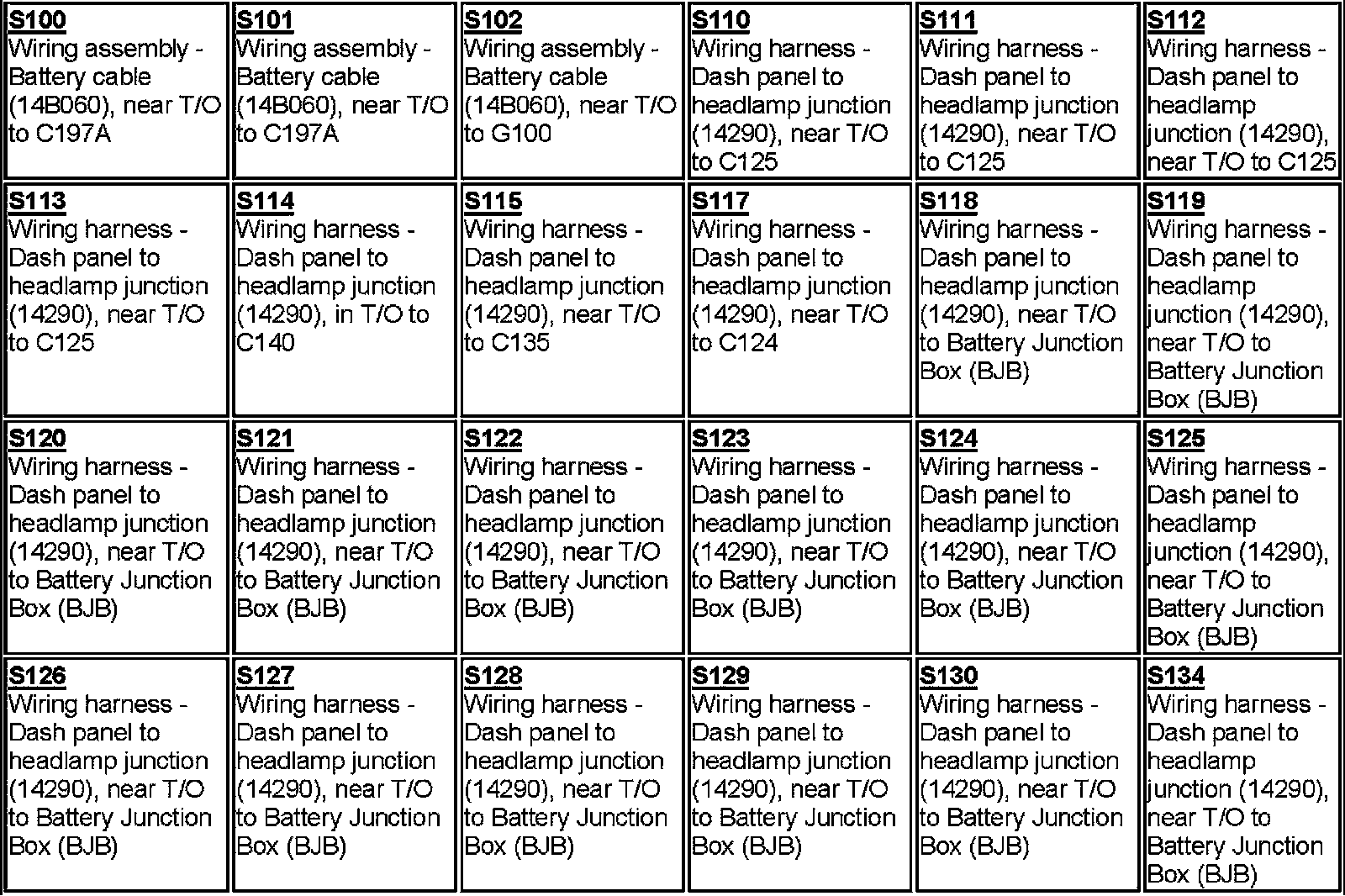

S100-S134:

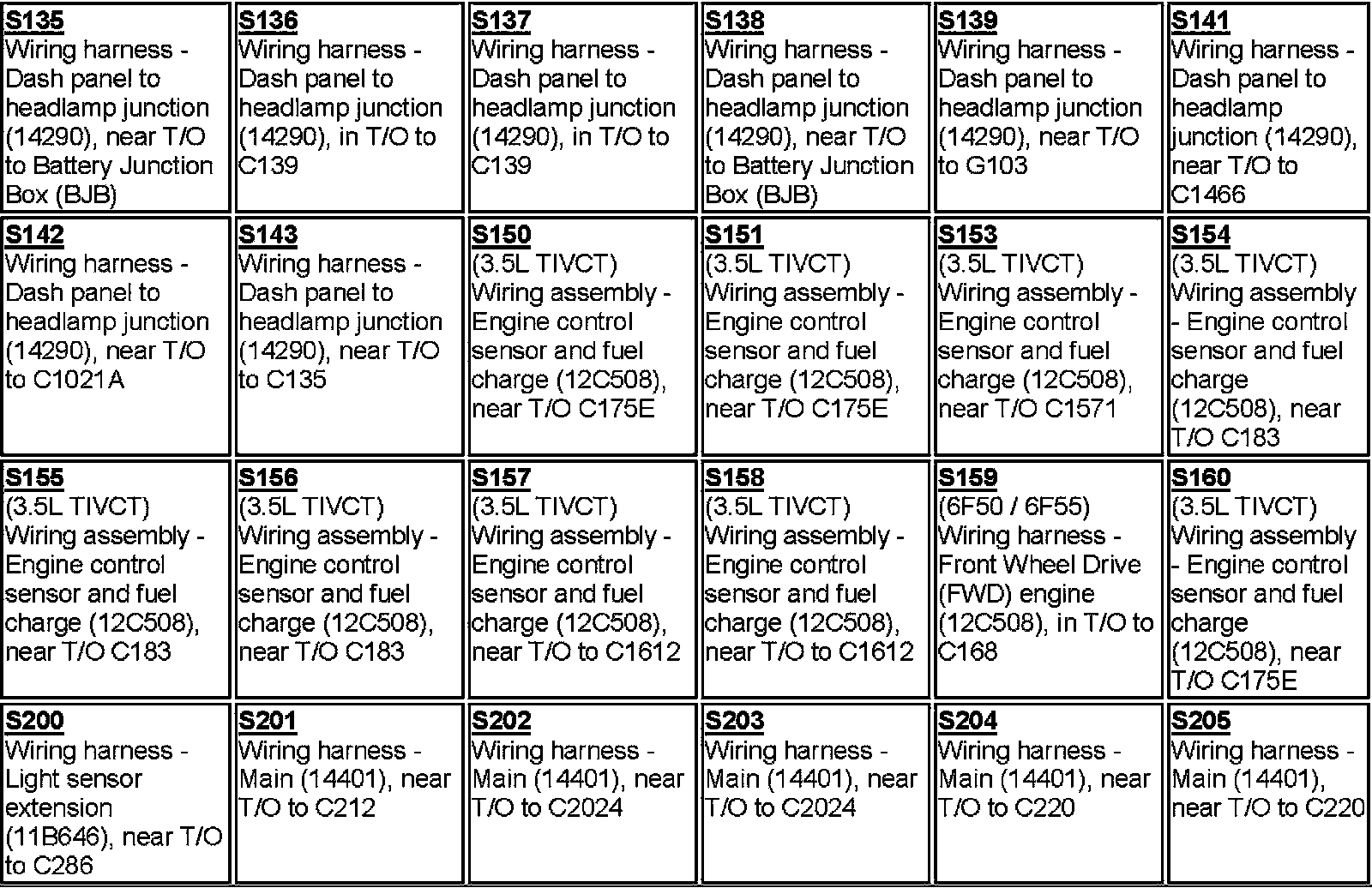

S135-S206:

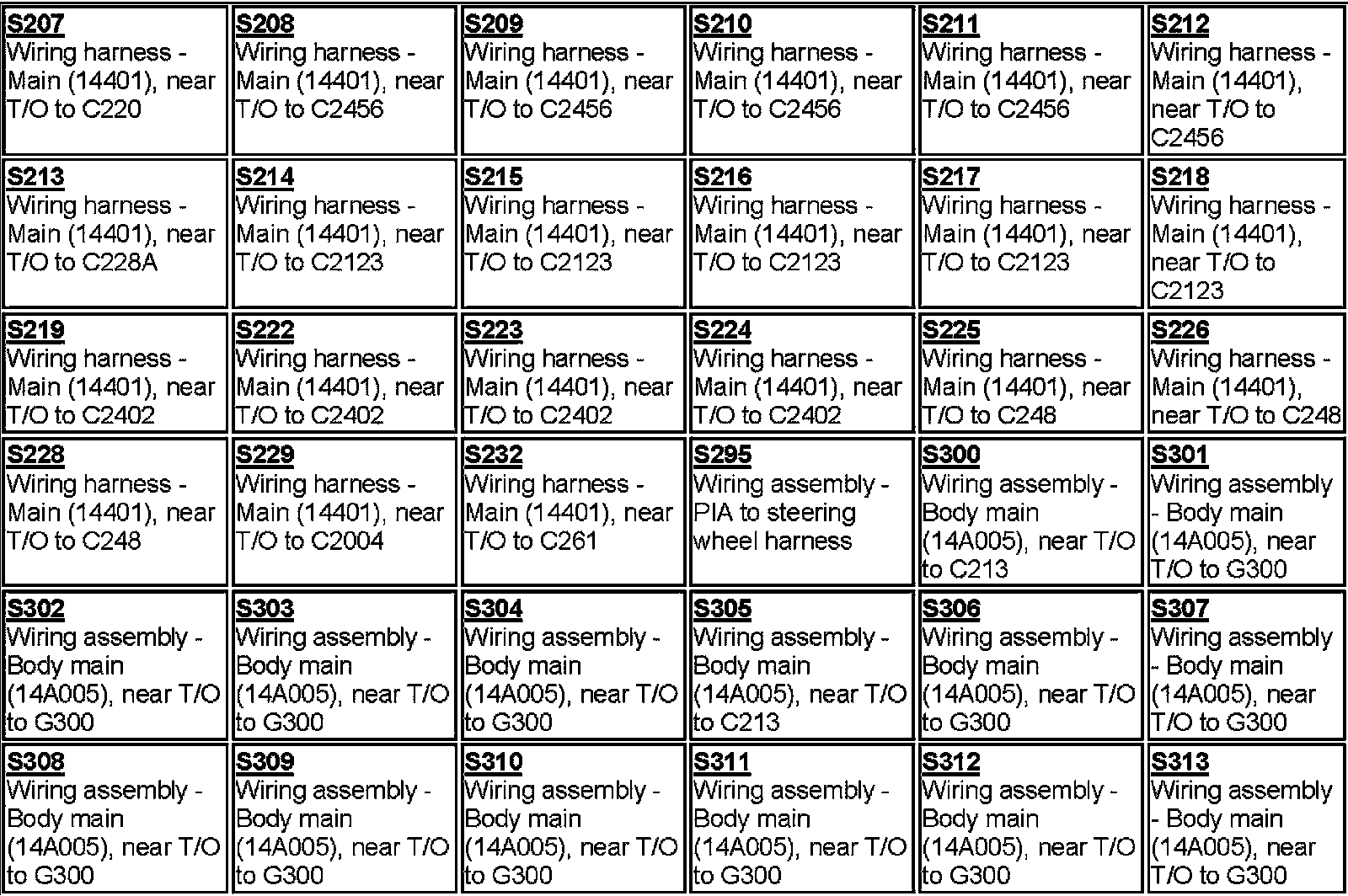

S207-S313:
S314-S364:

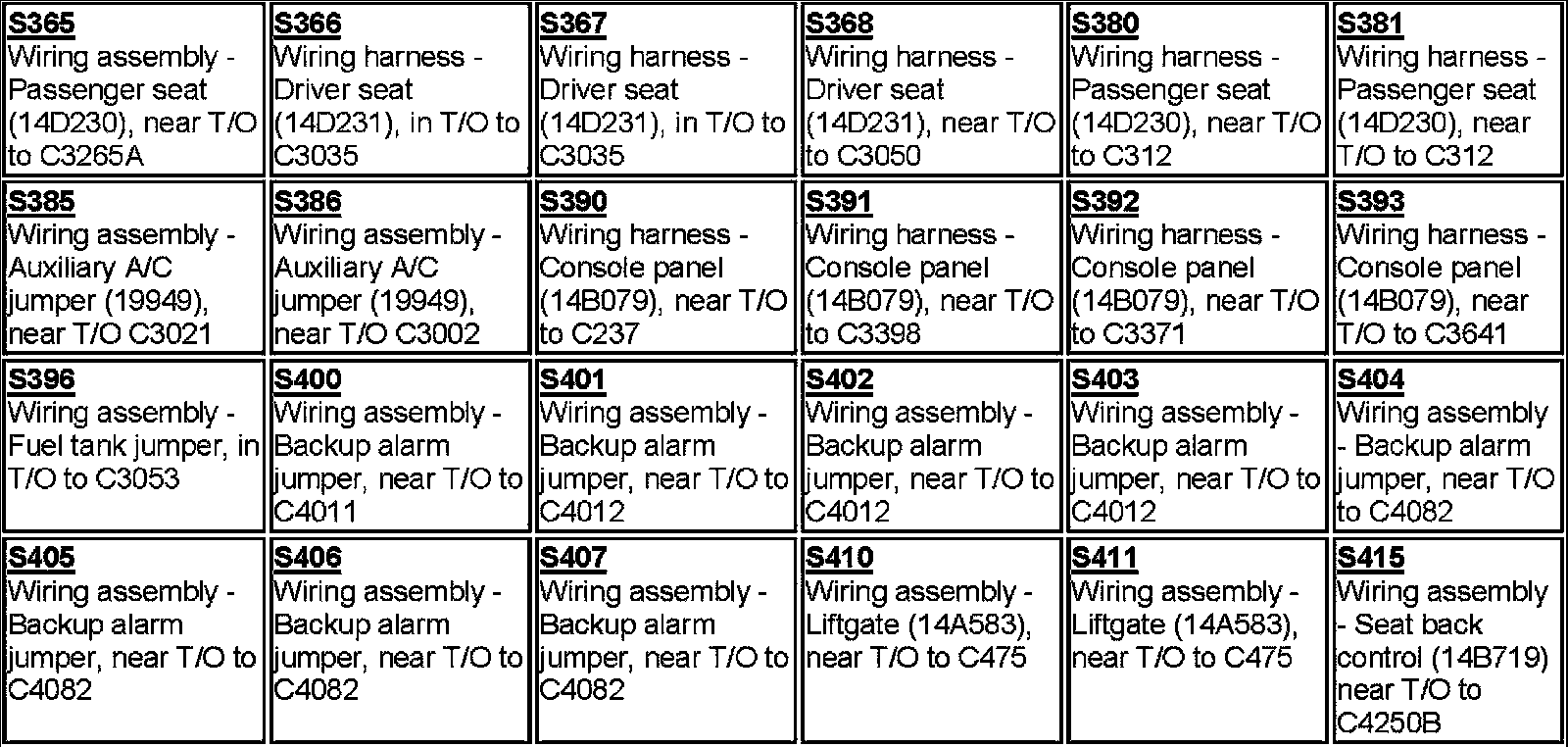

S365-S415:

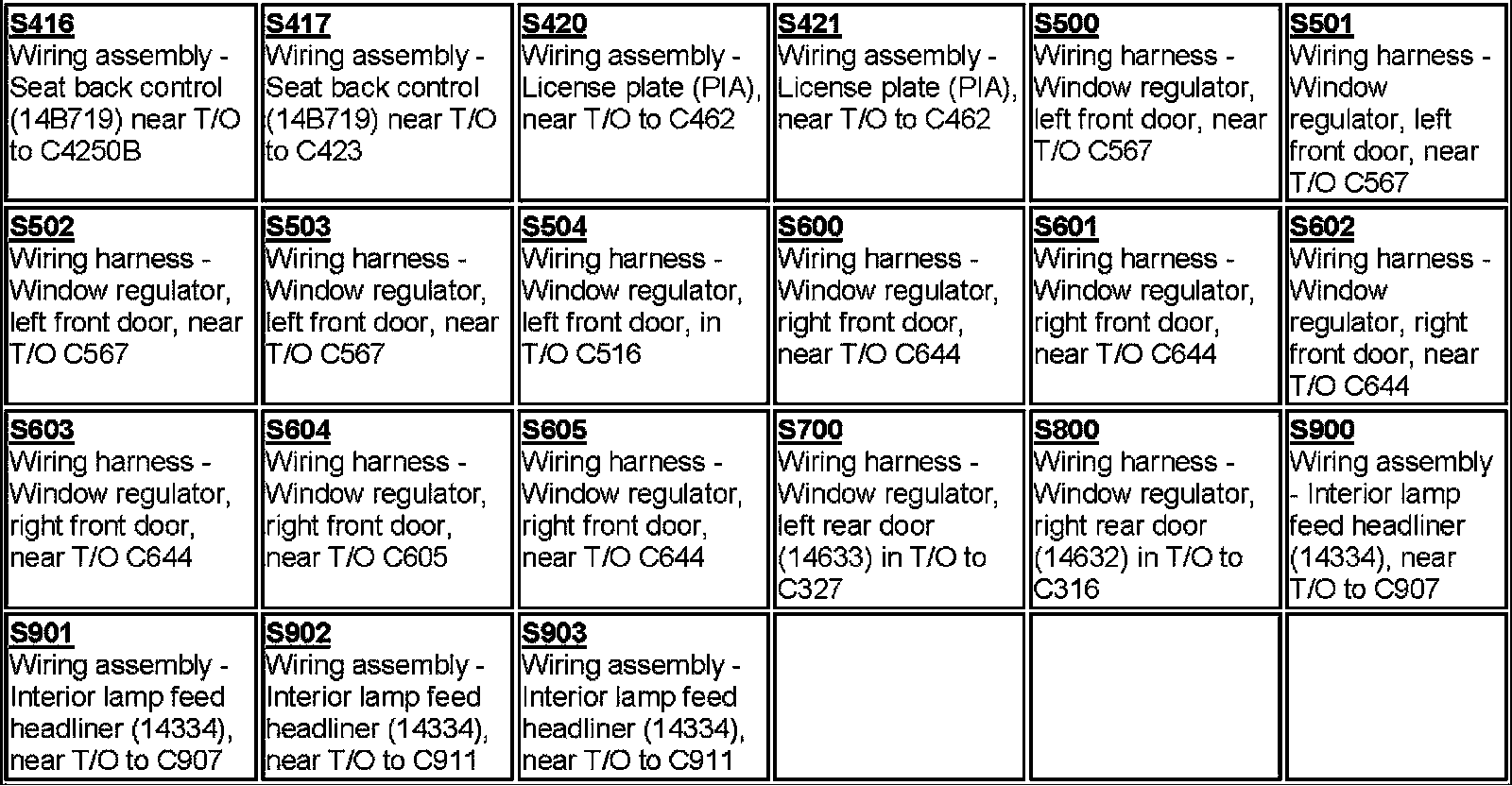

S416-S903:
