Auxiliary Climate Control

Symptom Chart(s)

Symptom Chart: Auxiliary Climate Control

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information regarding Ford-specific diagnostic practices.

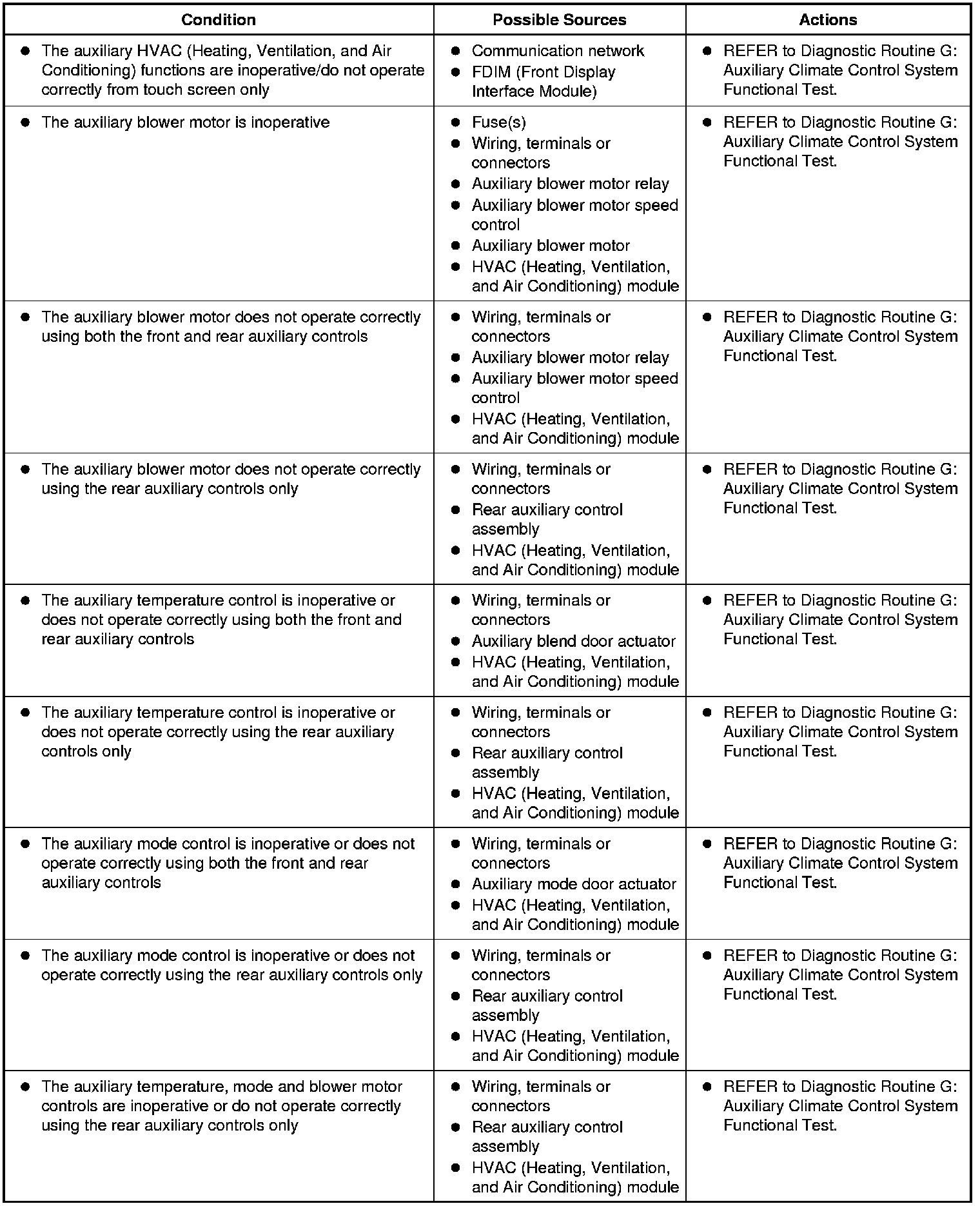

Symptom Chart
