Body - Front Door Black-Out Tape Wrinkled/Bubbled

TSB 11-10-14

10/10/11

FRONT DOOR BLACKOUT TAPE WRINKLED OR
BUBBLED - BUILT ON OR BEFORE 7/12/2011

FORD:
2011 Explorer

ISSUE
Some 2011 Explorer vehicles built on or before
7/12/2011 may exhibit wrinkled or bubbled blackout
tape on the front door near the exterior mirrors.

ACTION
Follow the Service Procedure below to correct the condition.

SERVICE PROCEDURE

1. Remove the exterior mirror. Refer to Workshop Manual (WSM), Section 501-09.

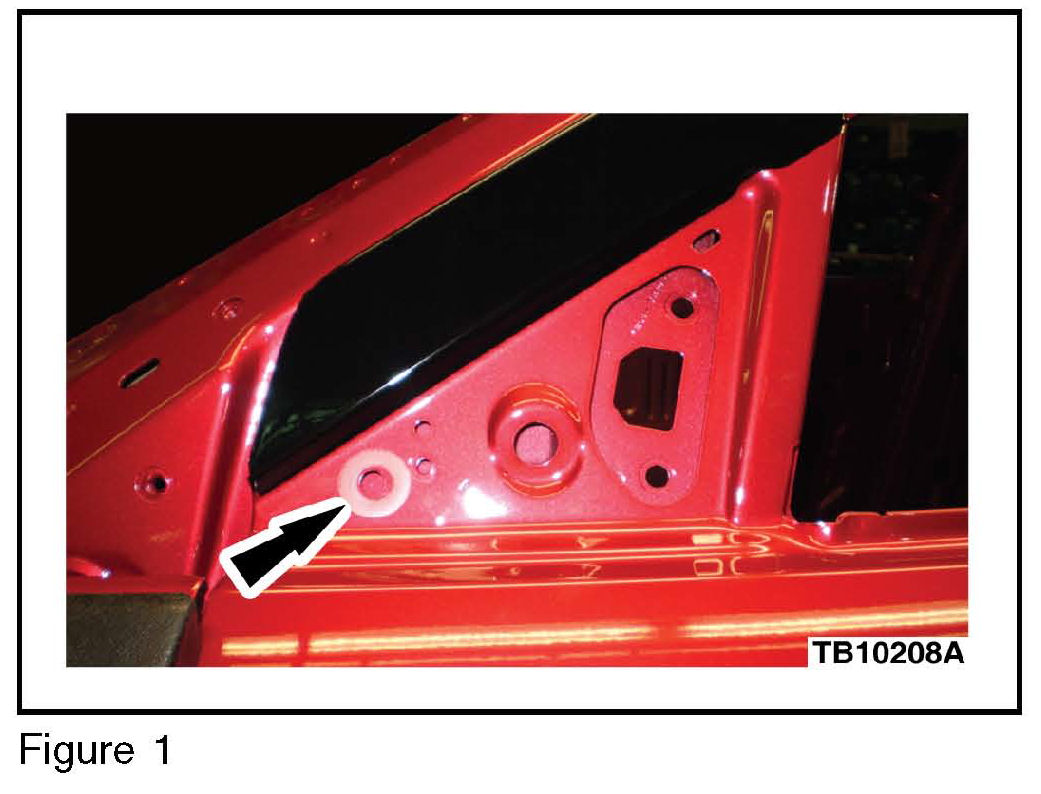

2. Add one (1) nylon washer to the forward mounting hole on the outside of the door. (Figure 1)

3. Partially install exterior mirror and secure the three (3) fasteners.

4. Check for clearance between the exterior mirror housing and the blackout tape with a feeler gauge, paper, or flashlight.

NOTE
CLEARANCE SHOULD BE NO GREATER THAN 1.0 mm (.047").

a. If clearance exists, proceed to Step 5.

b. If clearance does not exist, repeat Steps 2-4. No more than two (2) washers should be required.

5. Service the door blackout tape if necessary.

6. Install exterior mirror. Refer to WSM, Section 501-09.

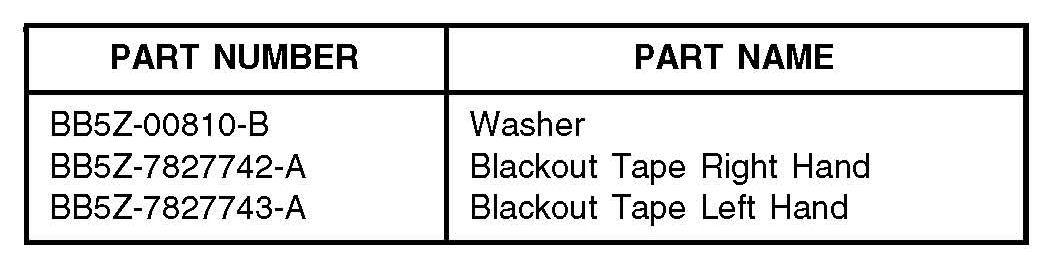

Parts Block

WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
IMPORTANT: Warranty coverage limits/policies are not altered by a TSB. Warranty coverage limits are determined by the identified causal part.

OPERATION DESCRIPTION TIME

111014A 2011 Explorer: Follow 0.4 Hr.
Service Procedure To
Adjust Mirror To Blackout
Tape Clearance On One
(1) Front Door (Do Not
Use With Any Other Labor
Operations)

111014B 2011 Explorer: Follow 0.6 Hr.
Service Procedure To
Adjust Mirror To Blackout
Tape Clearance On Two
(2) Front Doors (Do Not
Use With Any Other Labor
Operations)

111014C 2011 Explorer: Follow 1.2 Hrs.
Service Procedure To
Adjust Mirror To Blackout
Tape Clearance And
Replace The Blackout
Tape On One (1) Front
Door (Do Not Use With
Any Other Labor
Operations)

111014D 2011 Explorer: Follow 1.5 Hrs.
Service Procedure To
Adjust Mirror To Blackout
Tape Clearance On Two
(2) Front Doors And
Replace The Blackout
Tape On One (1) Front
Door (Do Not Use With
Any Other Labor
Operations)

111014E 2011 Explorer: Follow 2.3 Hrs.
Service Procedure To
Adjust Mirror To Blackout
Tape Clearance And
Replace The Blackout
Tape On Two (2) Front
Doors (Do Not Use With
Any Other Labor
Operations)

DEALER CODING
CONDITION
BASIC PART NO. CODE
17682 07
