Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2011
>>
Flex AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cabin Temperature Sensor / Switch
>>

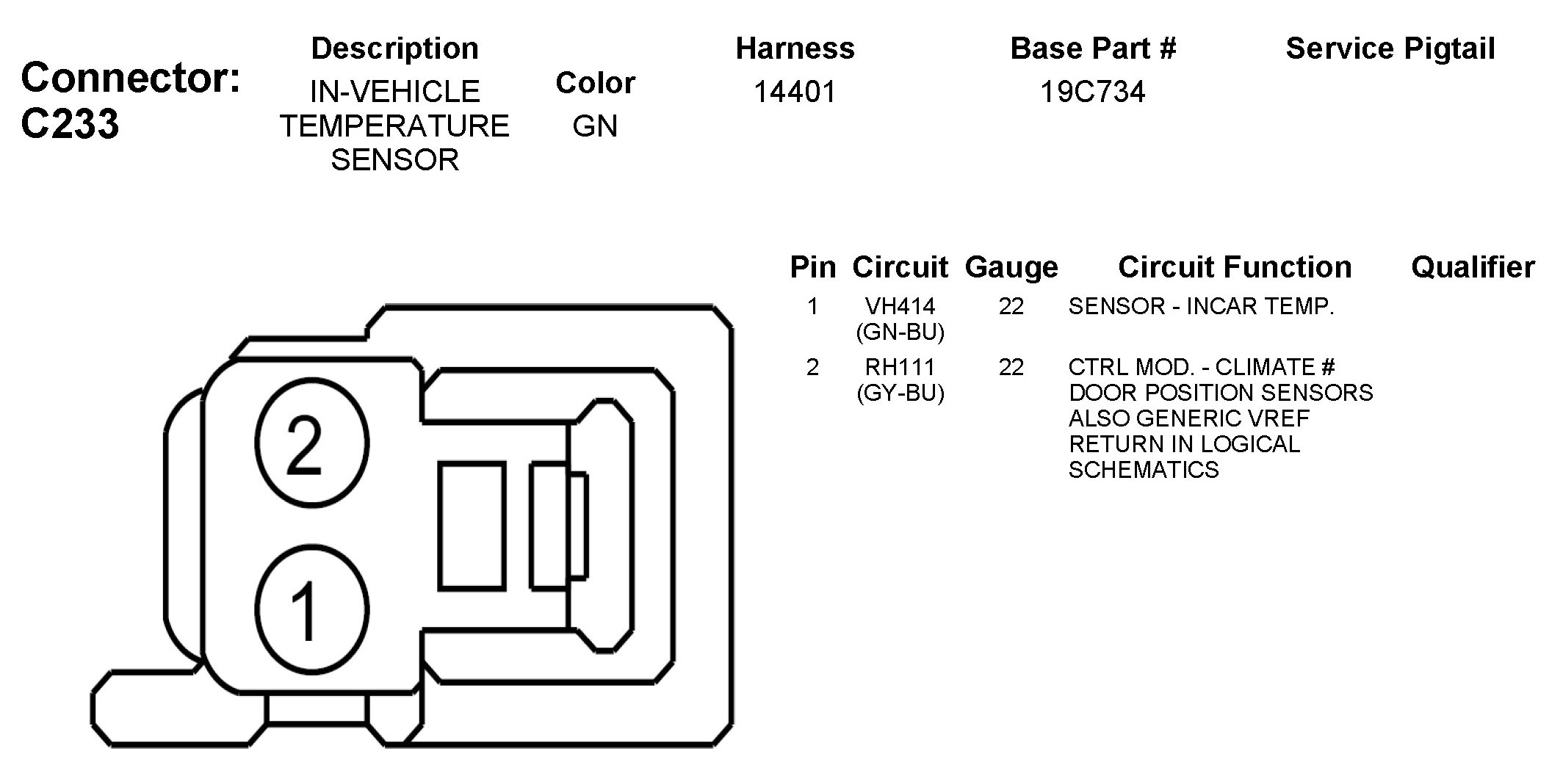

C233 In-Vehicle Temperature Sensor
C233 In-Vehicle Temperature Sensor
