Home
>>
Ford Truck
>>
2011
>>
Flex AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Switch
>>

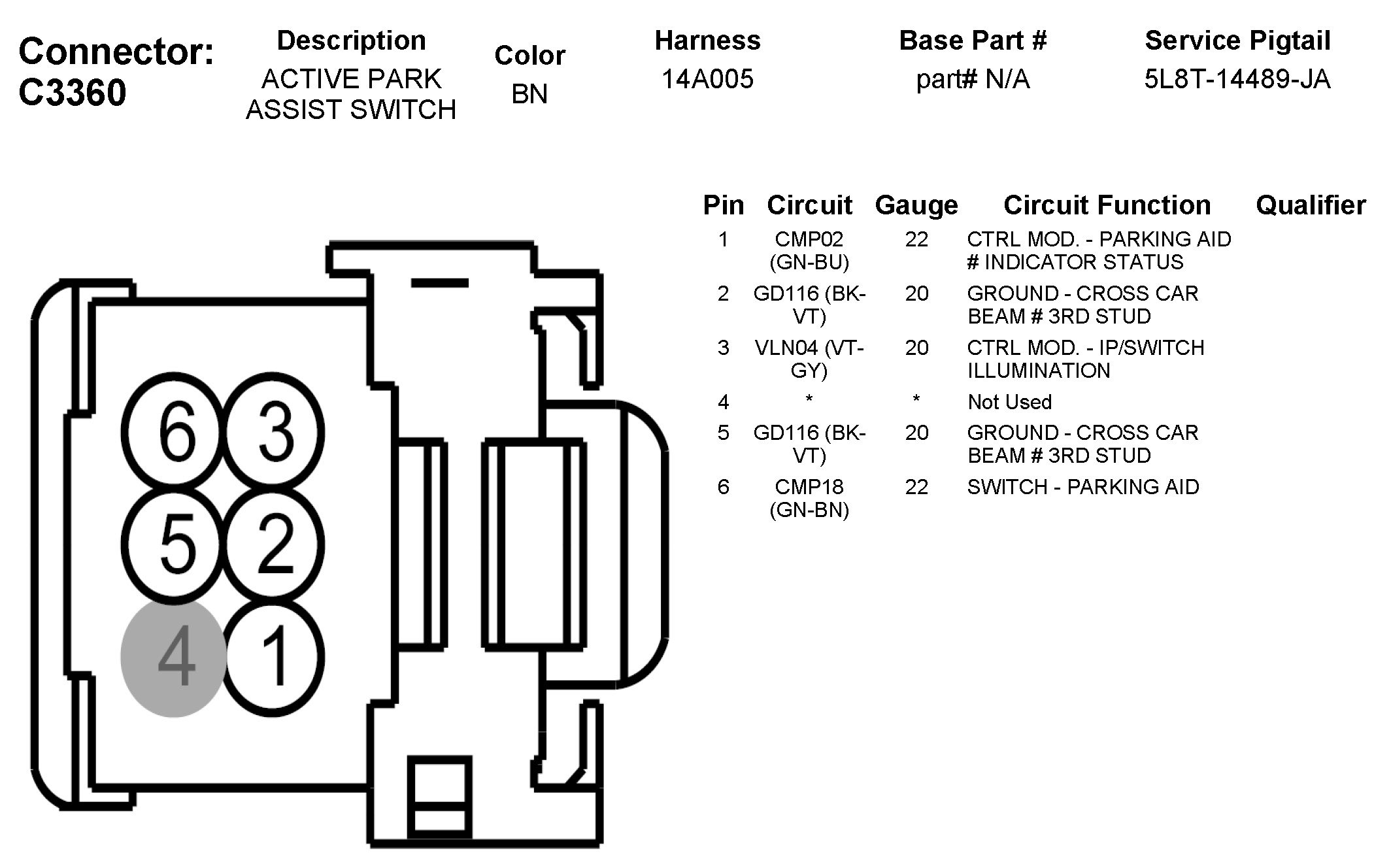

C3360 Active Park Assist Switch
C3360 Active Park Assist Switch
