Home
>>
Ford Truck
>>
2011
>>
Flex AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
>>

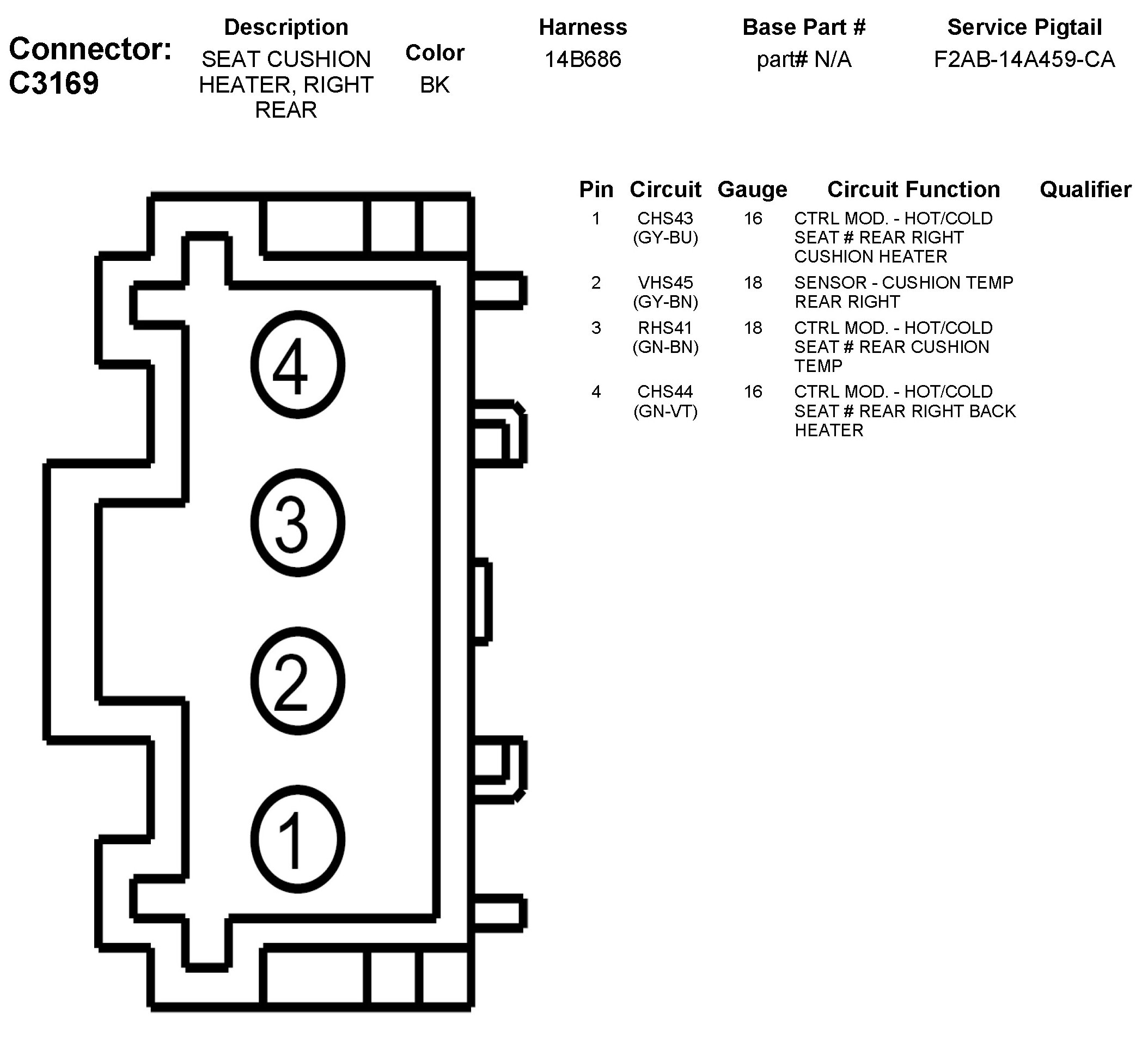

C3169 Seat Cushion Heater, Right Rear
C3169 Seat Cushion Heater, Right Rear
