Center Mounted Brake Lamp: Service and Repair




High Mounted Stoplamp









Removal and Installation

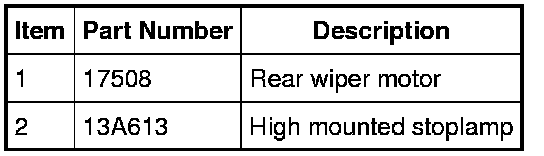

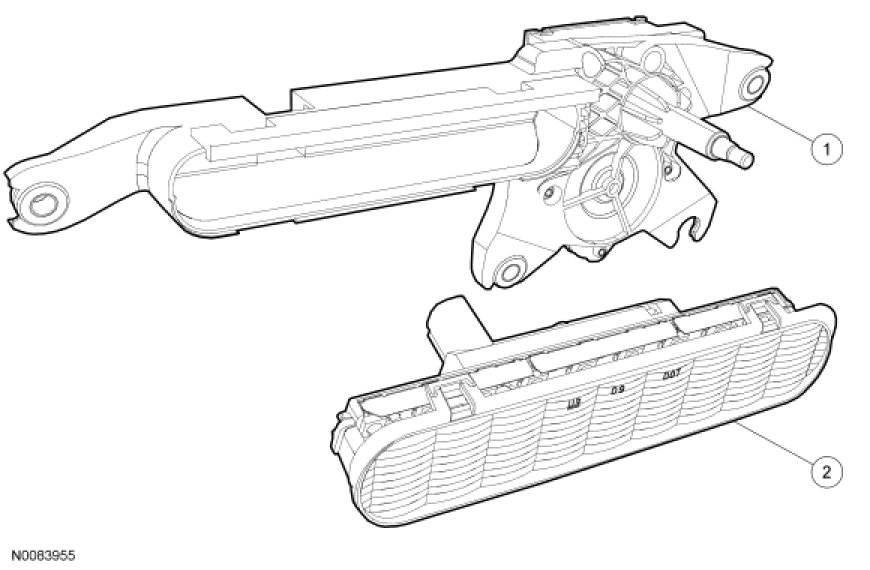

1. Remove the rear wiper motor. For additional information, refer to Wipers and Washers Service and Repair.

2. Release the tabs and remove the high mounted stoplamp.

3. To install, reverse the removal procedure.
