Windshield Washer Switch: Service and Repair

Steering Column Multifunction Switch

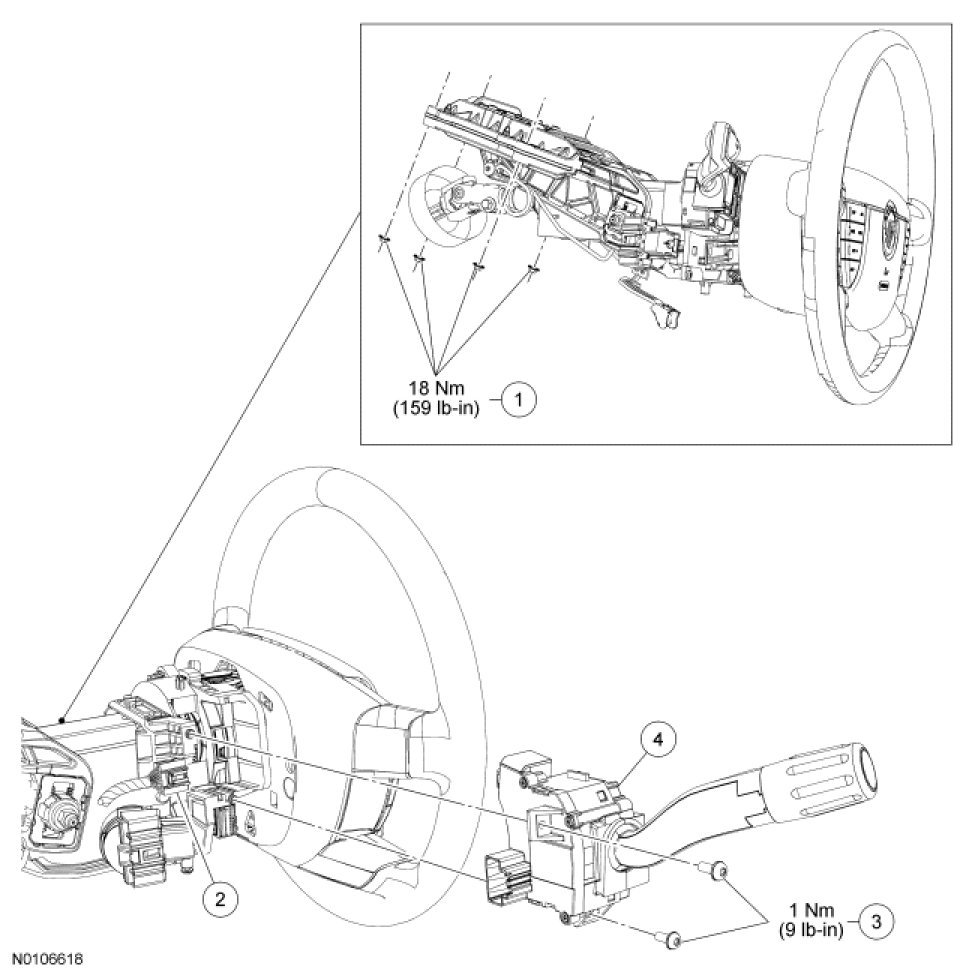

NOTE: Steering wheel without paddle shifters shown, steering wheel with paddle shifters similar.











Removal and Installation

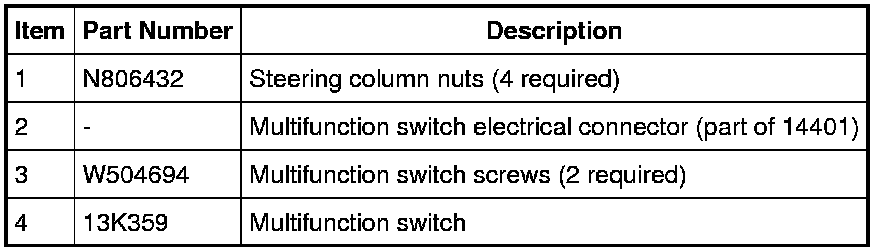

1. Remove the steering column shrouds. For additional information, refer to Steering Column Steering Column Shroud.

2. Remove the 4 nuts and lower the steering column.
- To install, tighten to 18 Nm (159 lb-in).

3. Disconnect the multifunction switch electrical connector.

4. Remove the 2 screws and the multifunction switch.
- To install, tighten to 1 Nm (9 lb-in).

5. To install, reverse the removal procedure.
