Connector Views
>>
Power Door Lock Actuator
>>

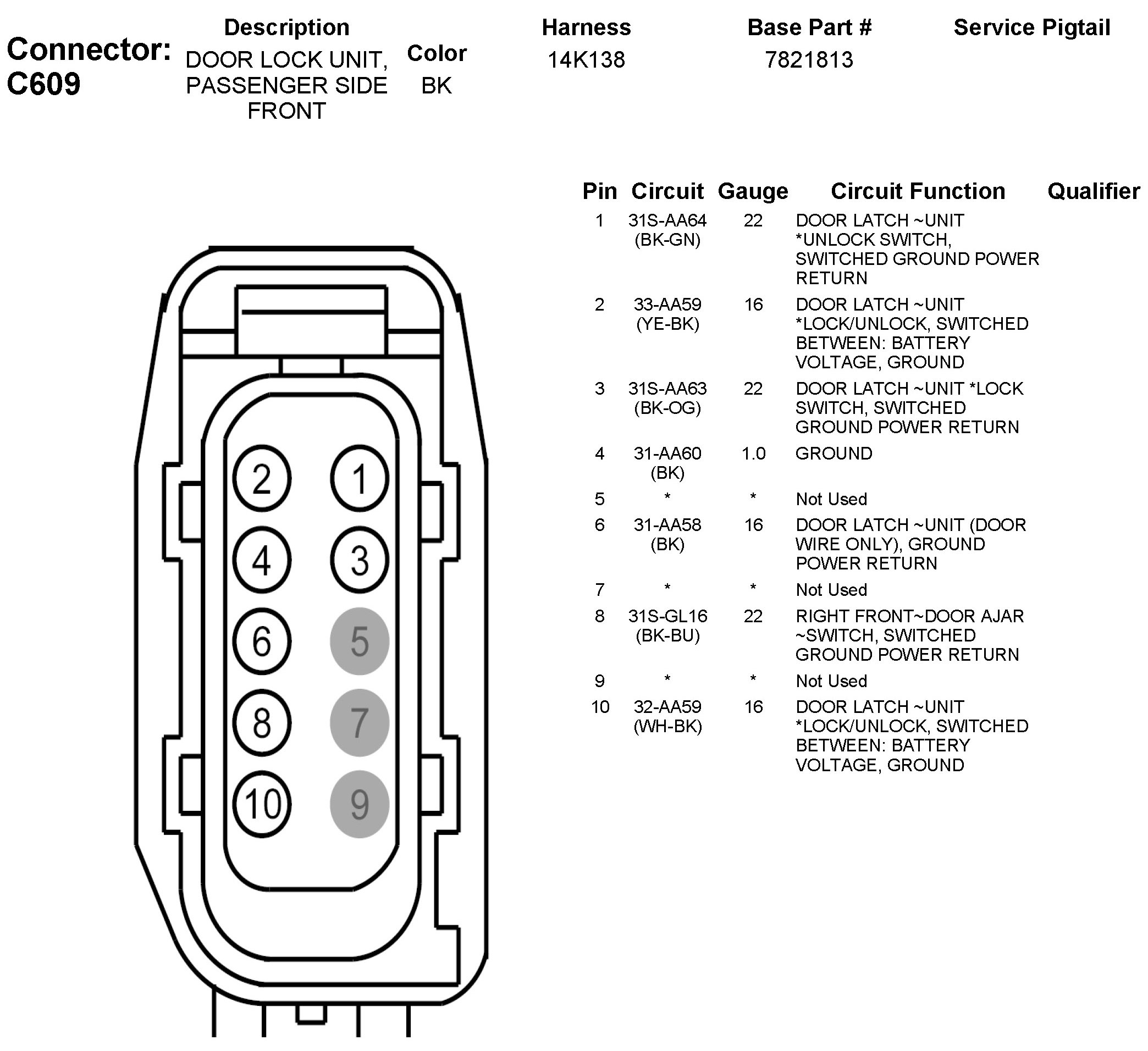

C609 Door Lock Unit, Passenger Side Front
C609 Door Lock Unit, Passenger Side Front
