Ford Truck
>>
2011
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
Connectors

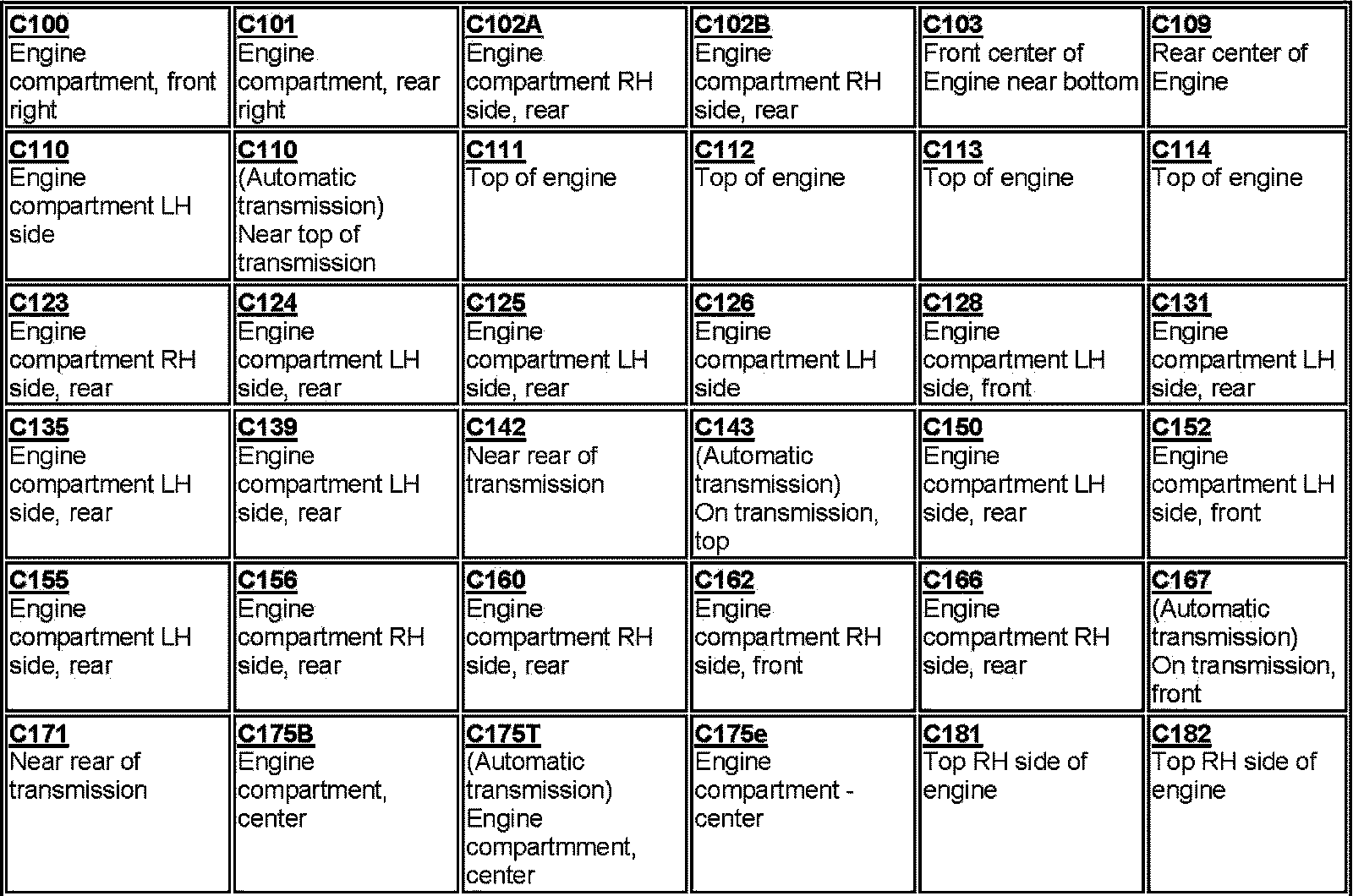

C100-C182:

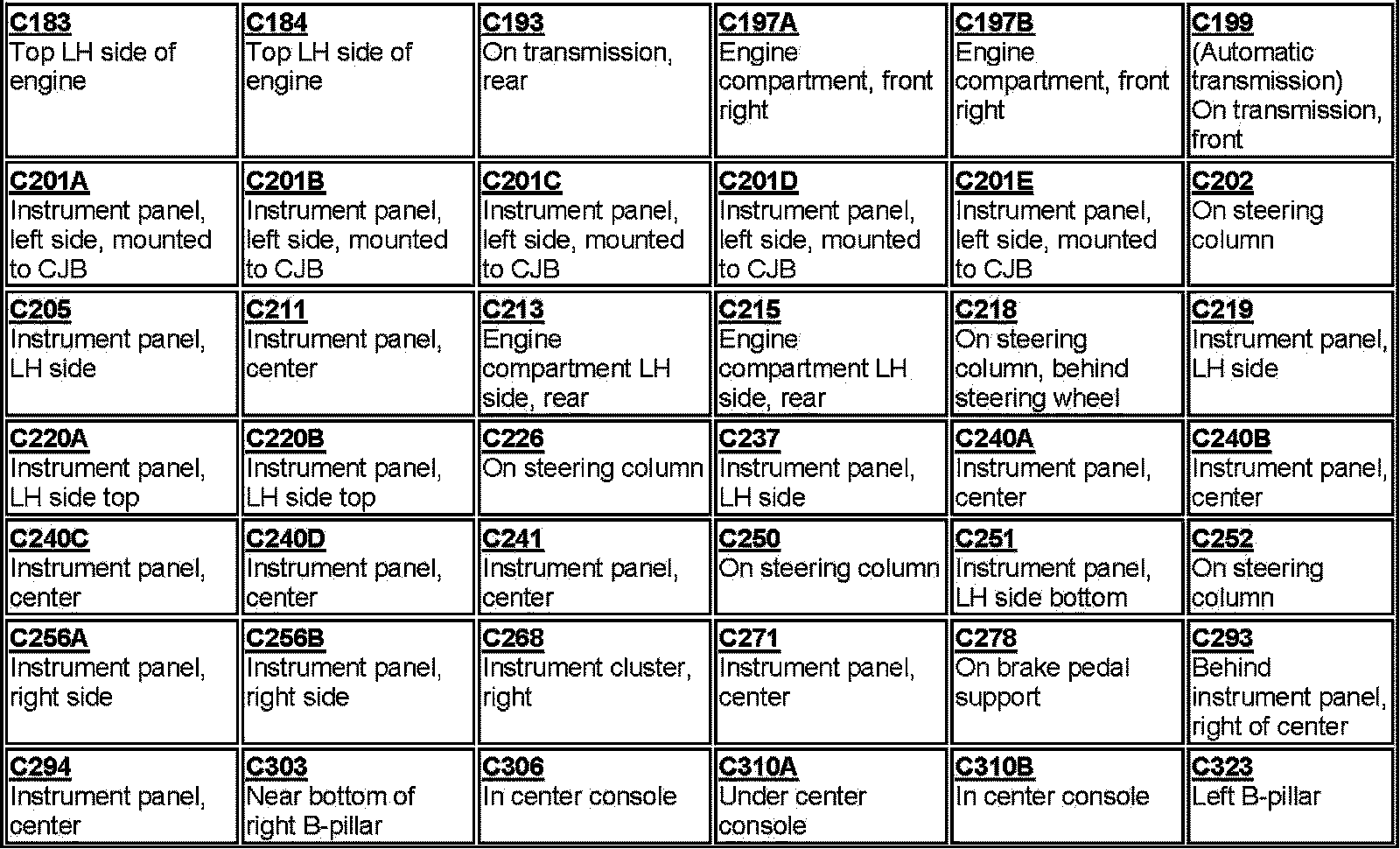

C183-C323:

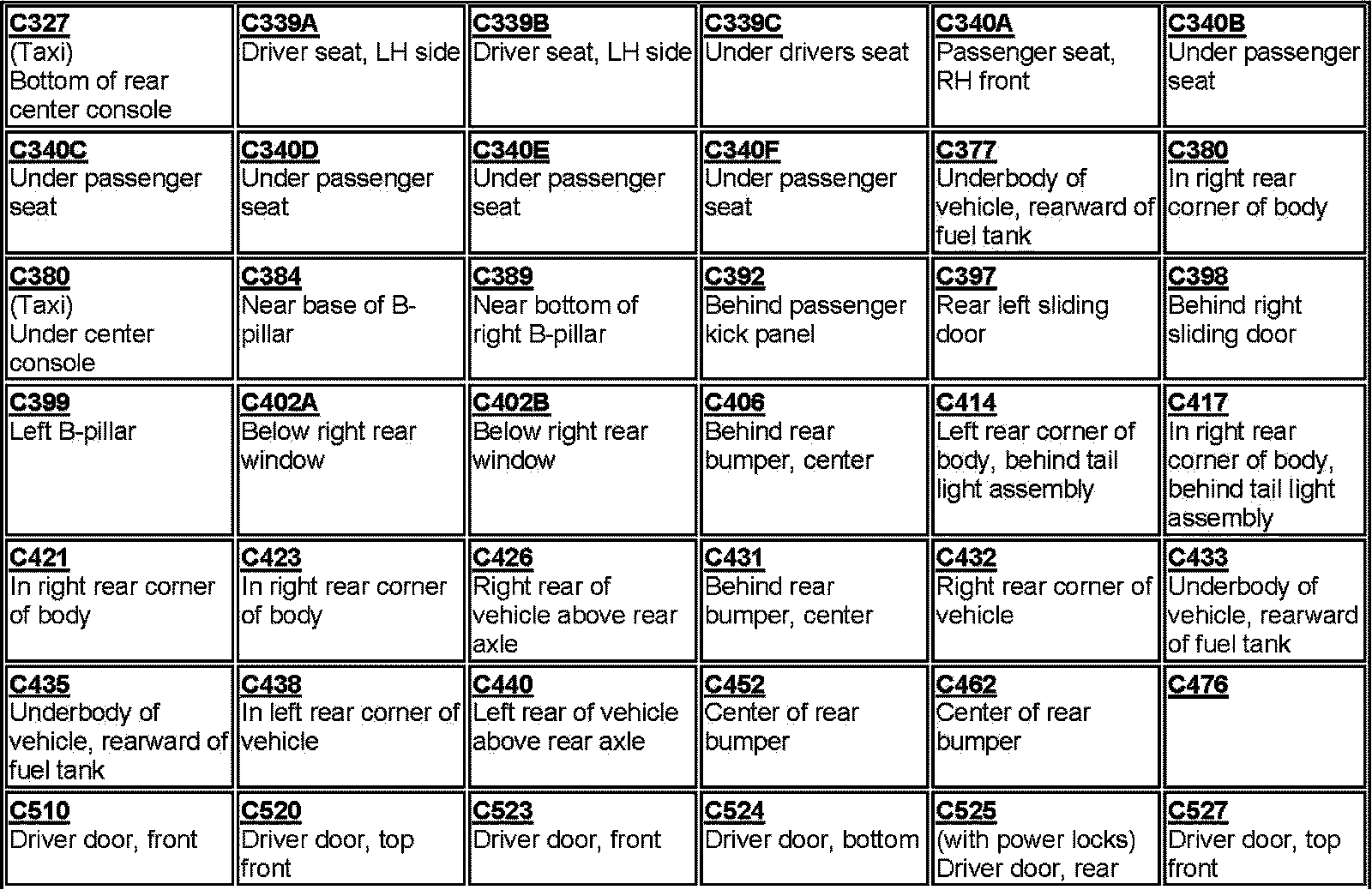

C327-C527:
C546-C1464:
C1466-C9221:
