Instrument Cluster / Carrier: Service and Repair

Instrument Cluster Finish Panel

Removal and Installation

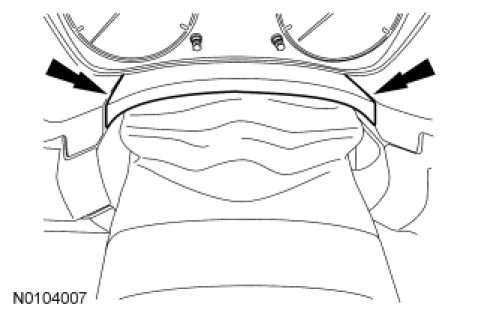

1. Lift the sides of the front upper steering column extension cover upward to release the retaining clips from the instrument cluster finish panel.





2. Remove the instrument cluster finish panel in the following sequence.

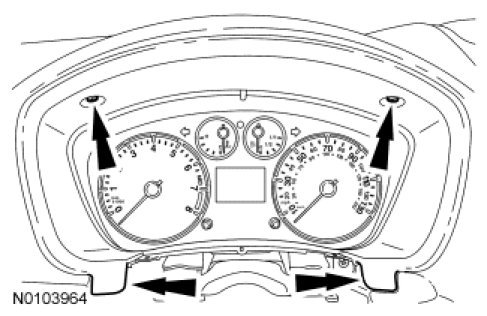

1. Remove the 2 upper and 2 side instrument cluster finish panel screws.

2. Pull the instrument cluster finish panel toward the rear of the vehicle.





3. To install, reverse the removal procedure.
- To install, make sure to align the trim panel alignment tabs to the alignment holes in the instrument panel.
