Side Turn Signal Lamp

Side Turn Signal Lamp









Removal and Installation

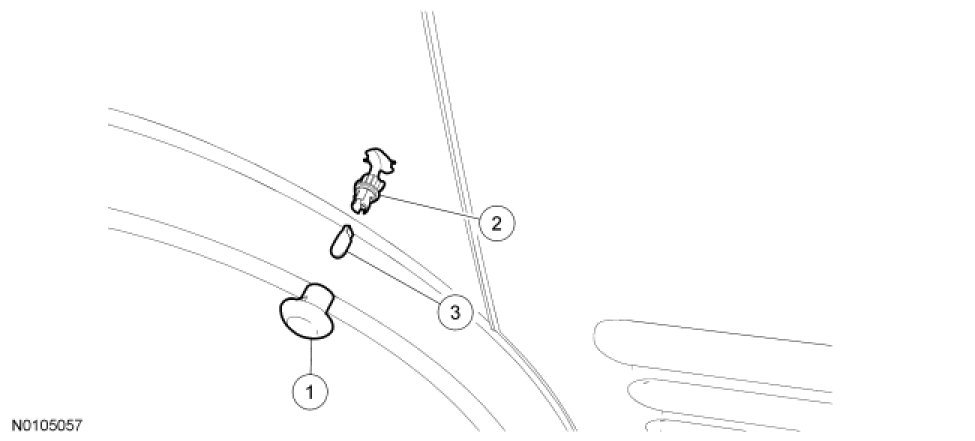

1. Rotate the turn signal lamp clockwise and separate the turn signal lamp from the front fender.

2. Separate the bulb holder from the turn signal lamp.
- If necessary, remove the bulb from the bulb holder.

3. To install, reverse the removal procedure.
