Muffler HVAC: Service and Repair

Plenum Chamber

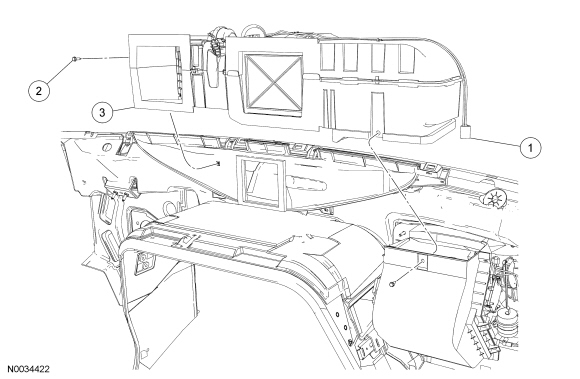

Removal and Installation

1. Remove the instrument panel.

2. Disconnect the plenum chamber vacuum harness connector.

3. Disconnect the vacuum hose.





4. Remove the 2 plenum chamber screws.

5. Remove the plenum chamber.

6. To install, reverse the removal procedure.
