Removal and Replacement

Tool Link(TM) Antenna

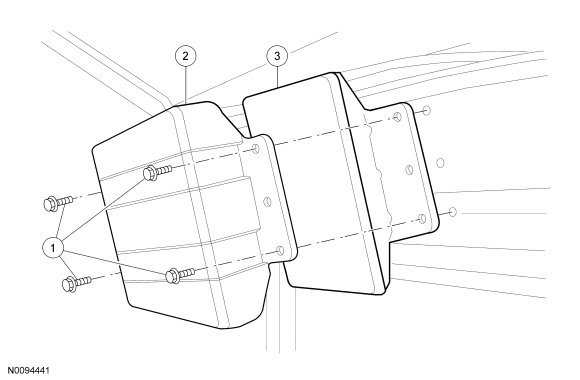

Removal and Installation

1. NOTE: Support the Tool Link(TM) antenna while the 4 screws are being removed. Do not allow it to hang from the antenna cable.

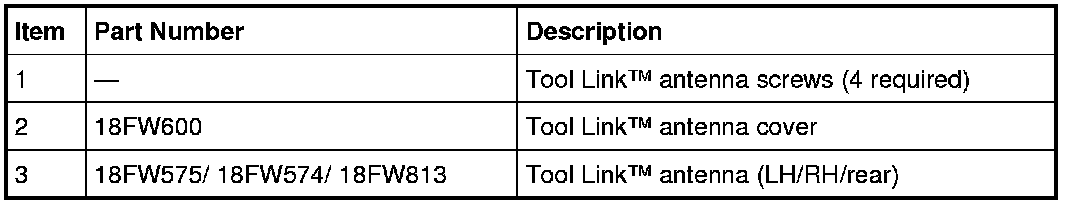

Remove the 4 Tool Link(TM) antenna screws.
- Disconnect the antenna cable.


2. Remove the Tool Link(TM) antenna and cover.

3. To install, reverse the removal procedure.
