Connectors


C100-C152:






C160-C219:






C220-C326:






C327-C484:

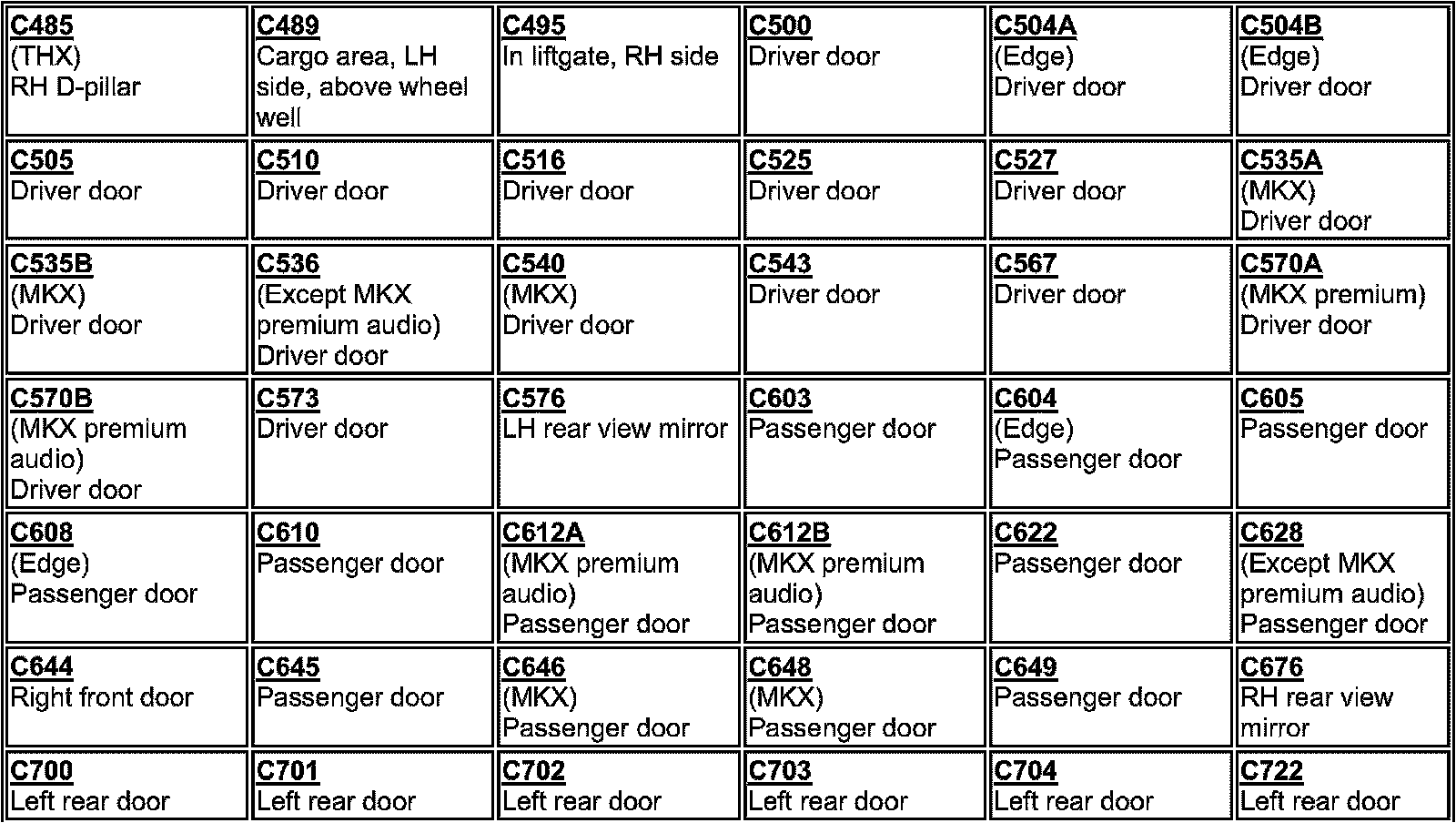

C485-C722:






C751-C1195:

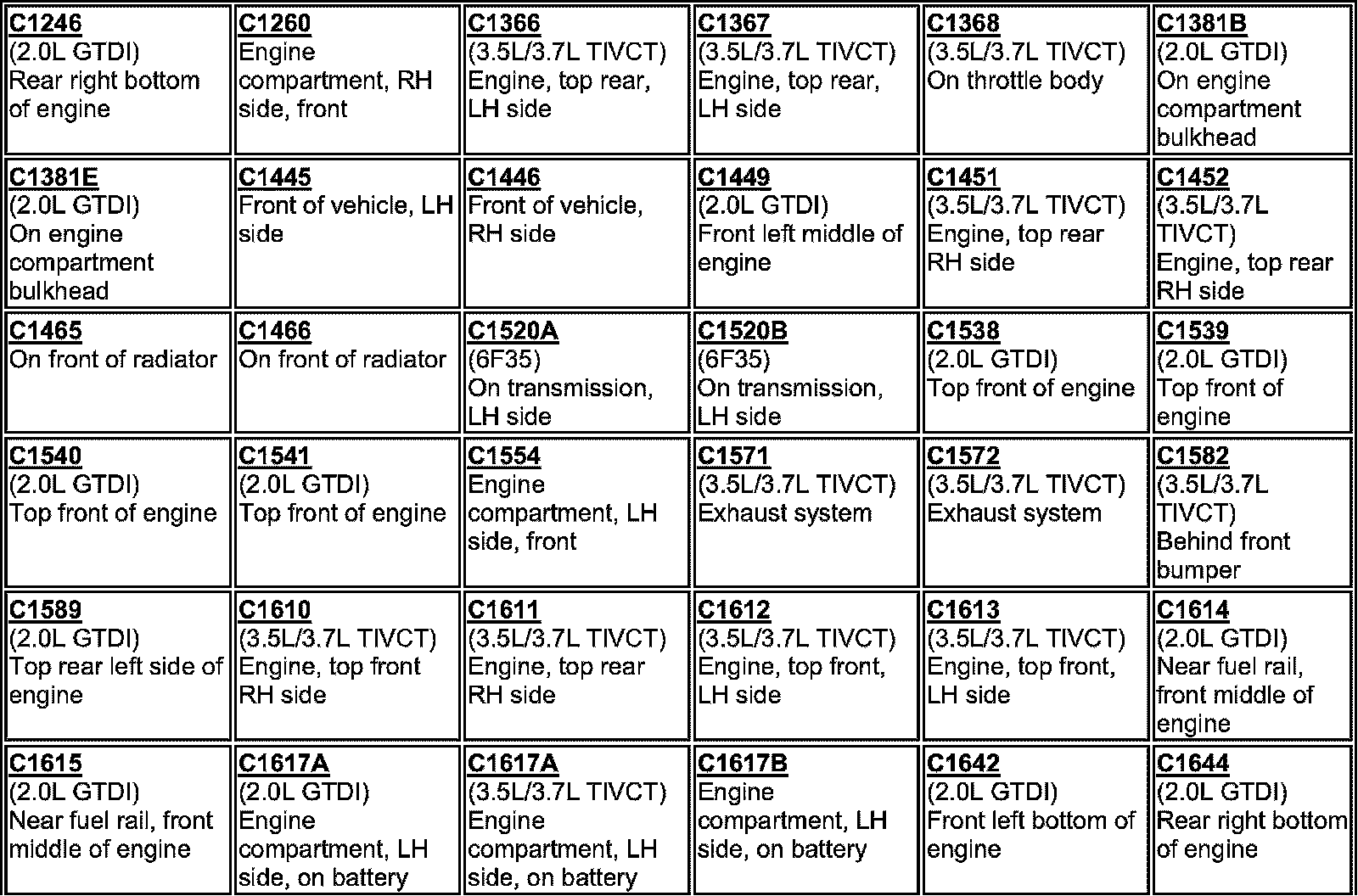

C1246-C1644:






C1645-C2356:






C2357-C3075:

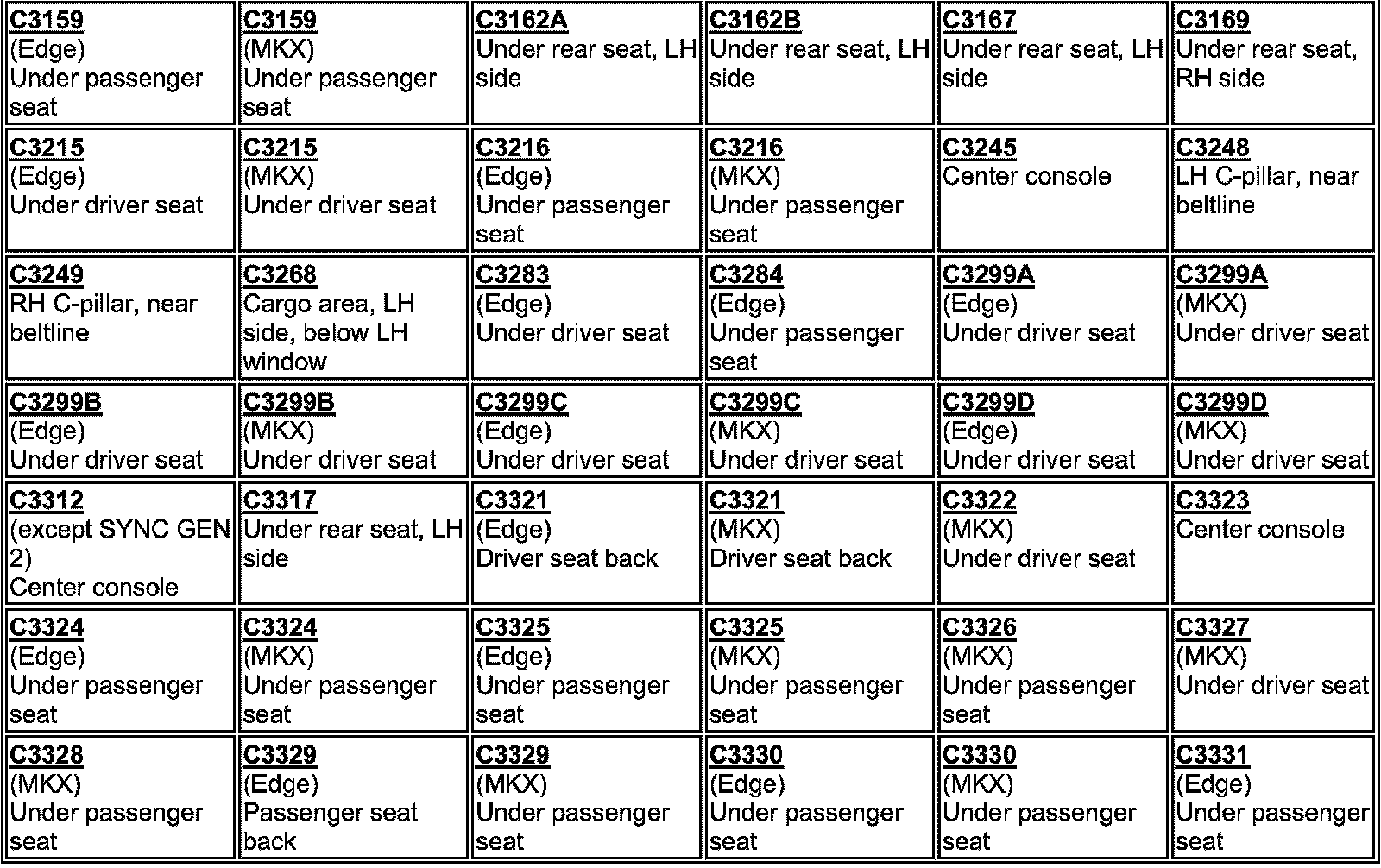

C3159-C3331:






C3331-C4321:

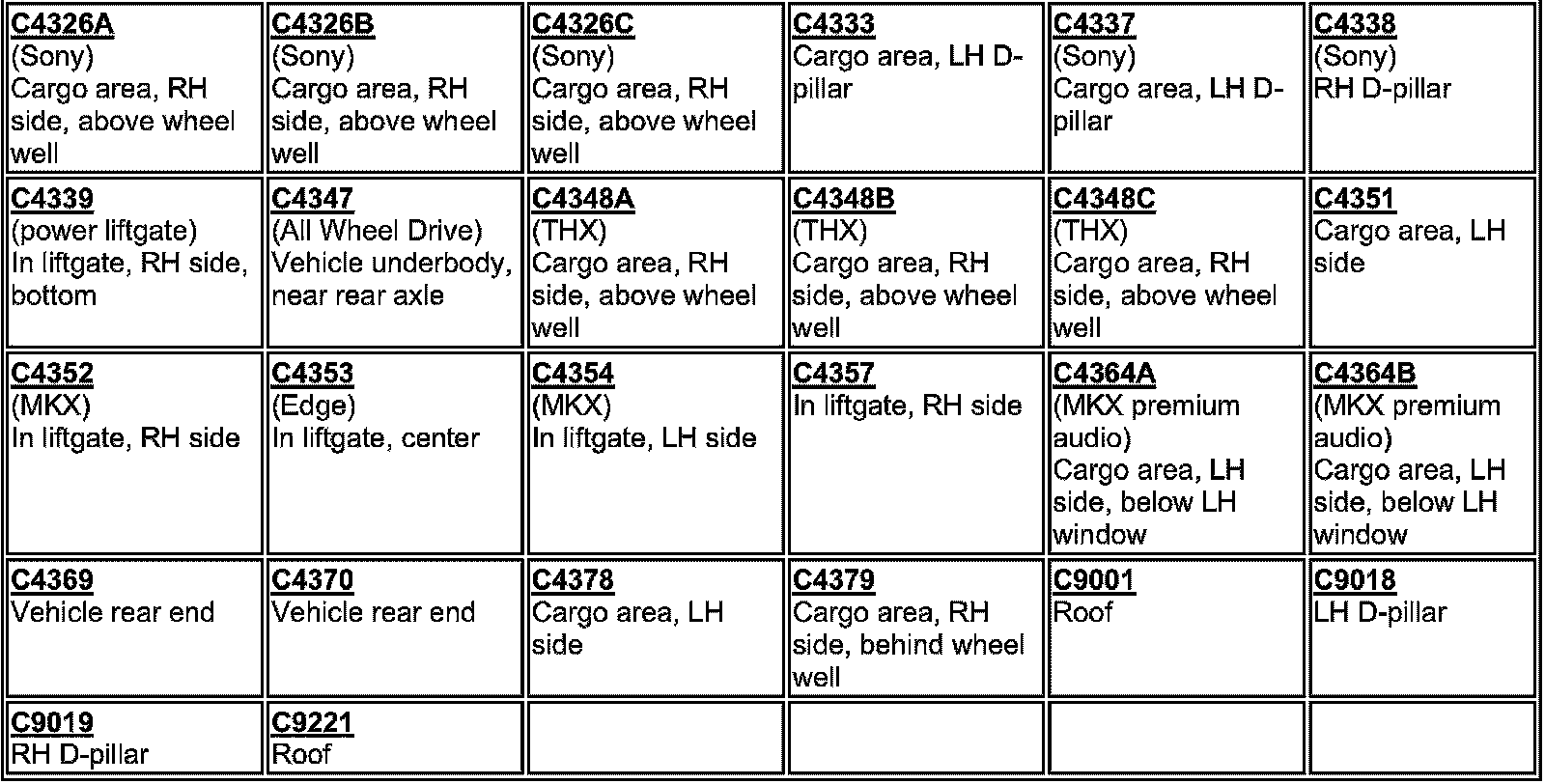

C4326A-C9221:
