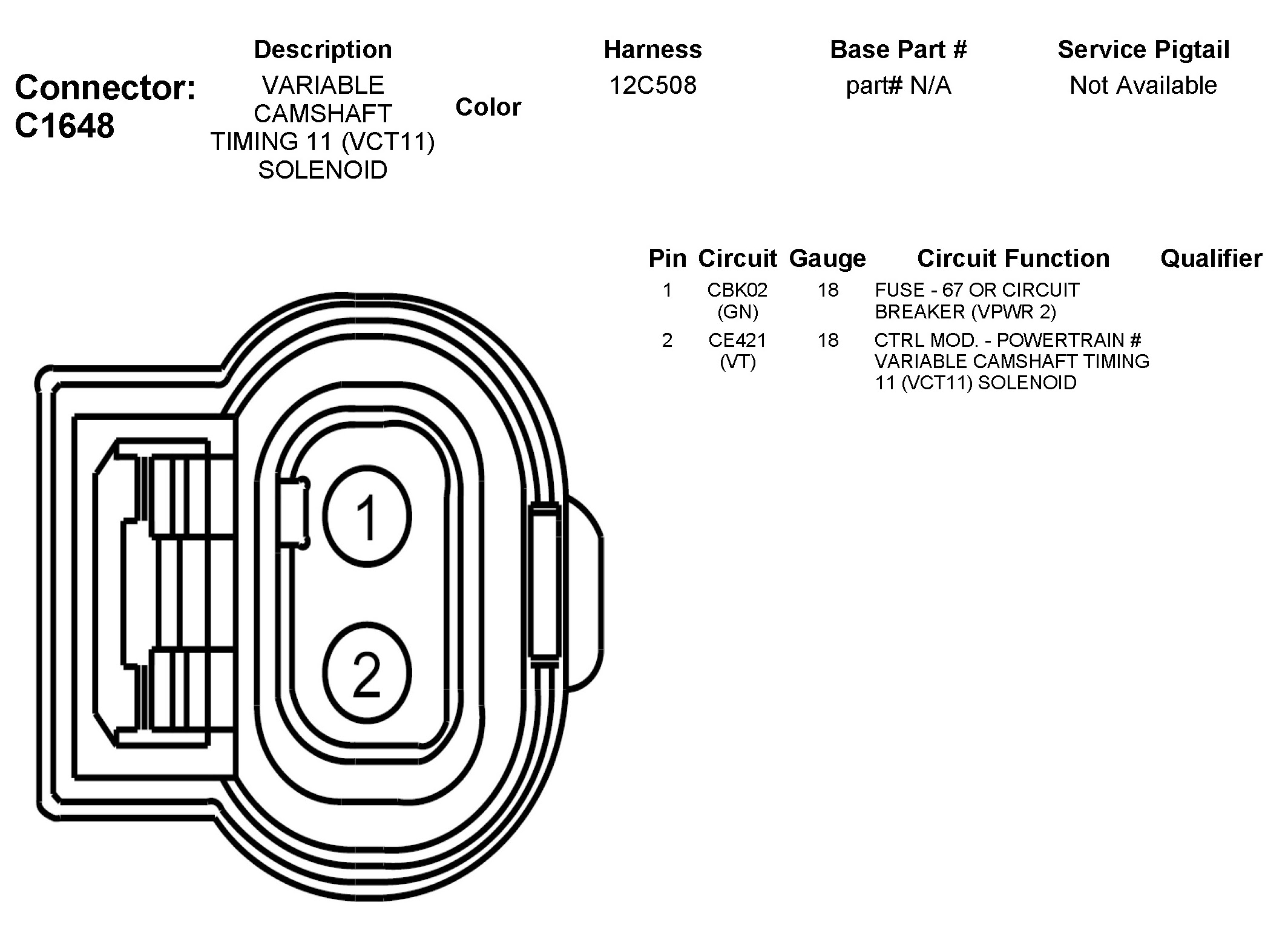

C1648 Variable Camshaft Timing #11 (VCT11) Solenoid
C1648 Variable Camshaft Timing #11 (VCT11) Solenoid
