Control Assembly: Service and Repair

Heating Ventilation Air Conditioning (HVAC) Module









Removal and Installation

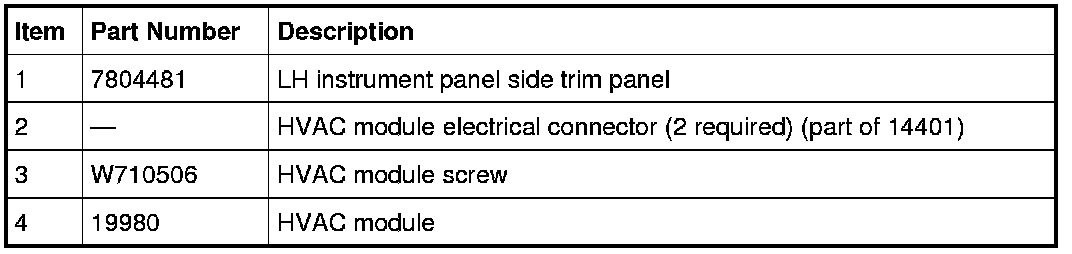

1. NOTE: Module configuration is required when a new HVAC is being installed.

Upload the HVAC (Heating Ventilation Air Conditioning) module configuration information to the scan tool. For additional information, refer to PMI (Programmable Module Installation) in Information Bus Programmable Module Installation (PMI).

2. Remove the LH instrument panel side trim panel.
- Position the driver door opening weatherstrip aside.

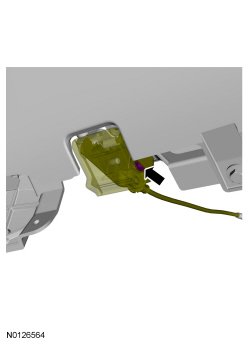

3. Remove the hood latch release screw and position the hood latch cable aside.





4. Remove the Body Control Module (BCM).

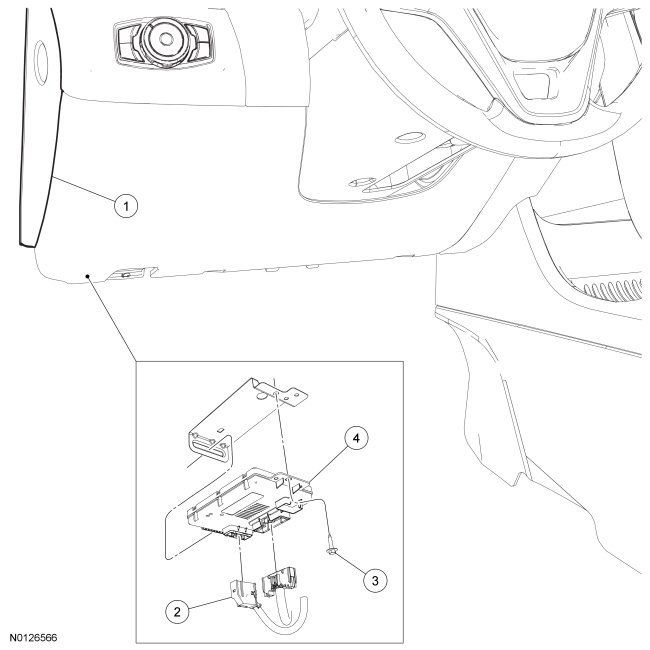

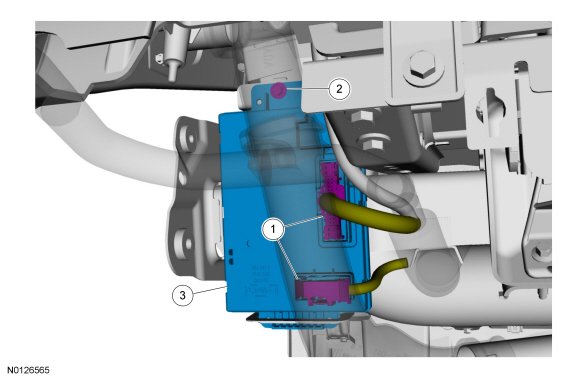

5. Remove the HVAC module.
1. Disconnect the HVAC module electrical connectors.

2. Remove the HVAC module screw.

3. Remove the HVAC module.






6. To install, reverse the removal procedure.
- Download the configuration information to the new HVAC (Heating Ventilation Air Conditioning) module. For additional information, refer to PMI (Programmable Module Installation) in Information Bus Programmable Module Installation (PMI).
