2.0L Gasoline Turbocharged Direct Injection (GTDI)

Fuel Charging and Controls

2.0L Gasoline Turbocharged Direct Injection (GTDI)

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTICE: Handle the fuel injectors and fuel rail with extreme care to prevent damage to the fuel inlet of the fuel rail, fuel injector sealing areas, and sensitive fuel-metering orifices.

Component Description

REFER to Computers and Control Systems Information Description and Operation.

System Operation

REFER to Computers and Control Systems Information Description and Operation.

Fuel Charging and Controls Component Locations

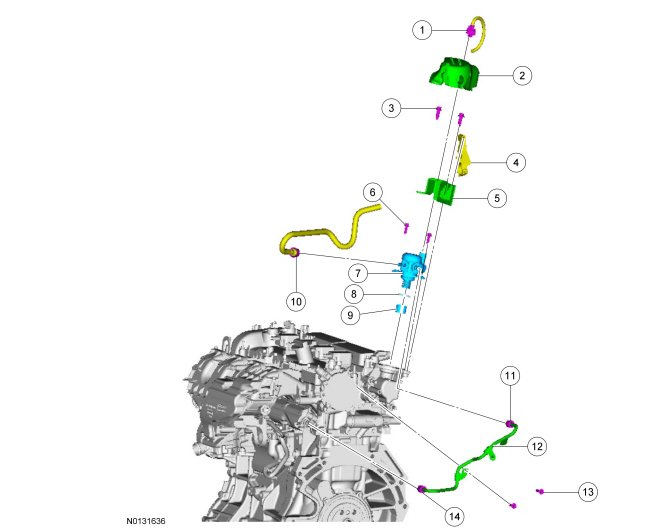

Fuel Injection Pump

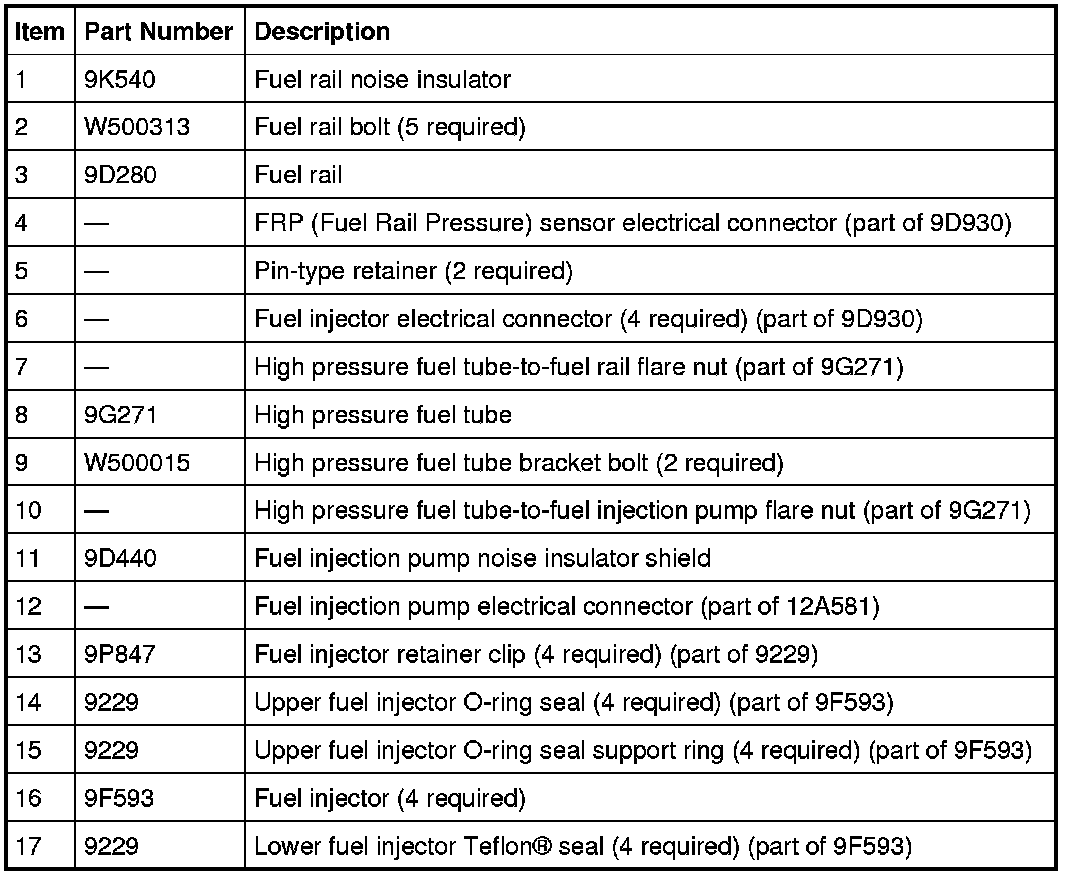

Fuel Injectors, Fuel Rails and High Pressure Fuel Tube










TB (Throttle Body) Component Location









Fuel Pump Control Module

For fuel pump control module component location, refer to Fuel Pump Control Module .
