Fuel System - MIL ON/DTC P00C6 Set
TSB 12-1-1501/25/12
2.0L - MIL WITH DTC P00C6 - BUILT ON OR BEFORE
11/23/2011
FORD:
2012 Edge
ISSUE
Some 2012 Edge vehicles built on or before 11/23/2011 and equipped with a 2.0L engine may exhibit a malfunction indicator lamp (MIL) with diagnostic trouble code (DTC) P00C6. In addition, some vehicles may also exhibit a long crank time condition.
ACTION
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
1. Use integrated diagnostic system (IDS) tool to perform low pressure fuel system test.
a. Select the following from the IDS tool:
(1) Powertrain
(2) Fuel
(3) Fuel System Test
(4) Low Pressure Test
b. Did the low pressure fuel system test pass?
(1) Yes - test passed proceed to Step 2.
(2) No - test failed proceed to Step 3.
2. Perform pinpoint test HP high pressure fuel delivery system. Did the high pressure fuel system test pass?
a. Yes - test passed procedure does not apply.
Continue with normal diagnostics. Refer to
Powertrain Control/Emissions Diagnosis
(PC/ED) Manual.
b. No - test failed proceed to Step 3.
3. Remove the fuel tank. Refer to Workshop Manual (WSM), Section 310-01.
4. Inspect fuel pump module (also known as fuel sender and pump assembly) part number located on top of module.
a. If CT43-9H307-CE - proceed to Step 5.
b. If CT43-9H307-CF - procedure does not apply. Reinstall fuel tank and continue with normal diagnostics per PC/ED.
5. Replace fuel pump module and fuel pump module 0-ring seal. Refer to WSM, Section 310-01.
6. Reinstall fuel tank Refer to WSM, Section 310-01
7. Clear DTC(s) and confirm condition is resolved. If DTC or symptom returns, continue with normal diagnostics per PC/ED.

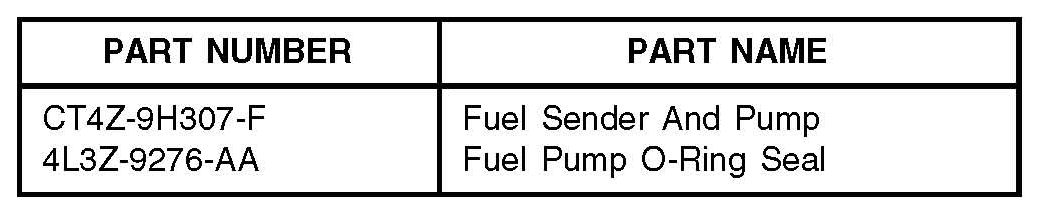

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage
Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
OPERATION DESCRIPTION TIME
MT20115 Use SLIS Operations If Actual
Available; Claim Additional Time
Diagnosis Or Labor
Performed As Actual Time.
DEALER CODING
CONDITION
BASIC PART NO. CODE
9H307 07
