Symptom Related Diagnostic Procedures

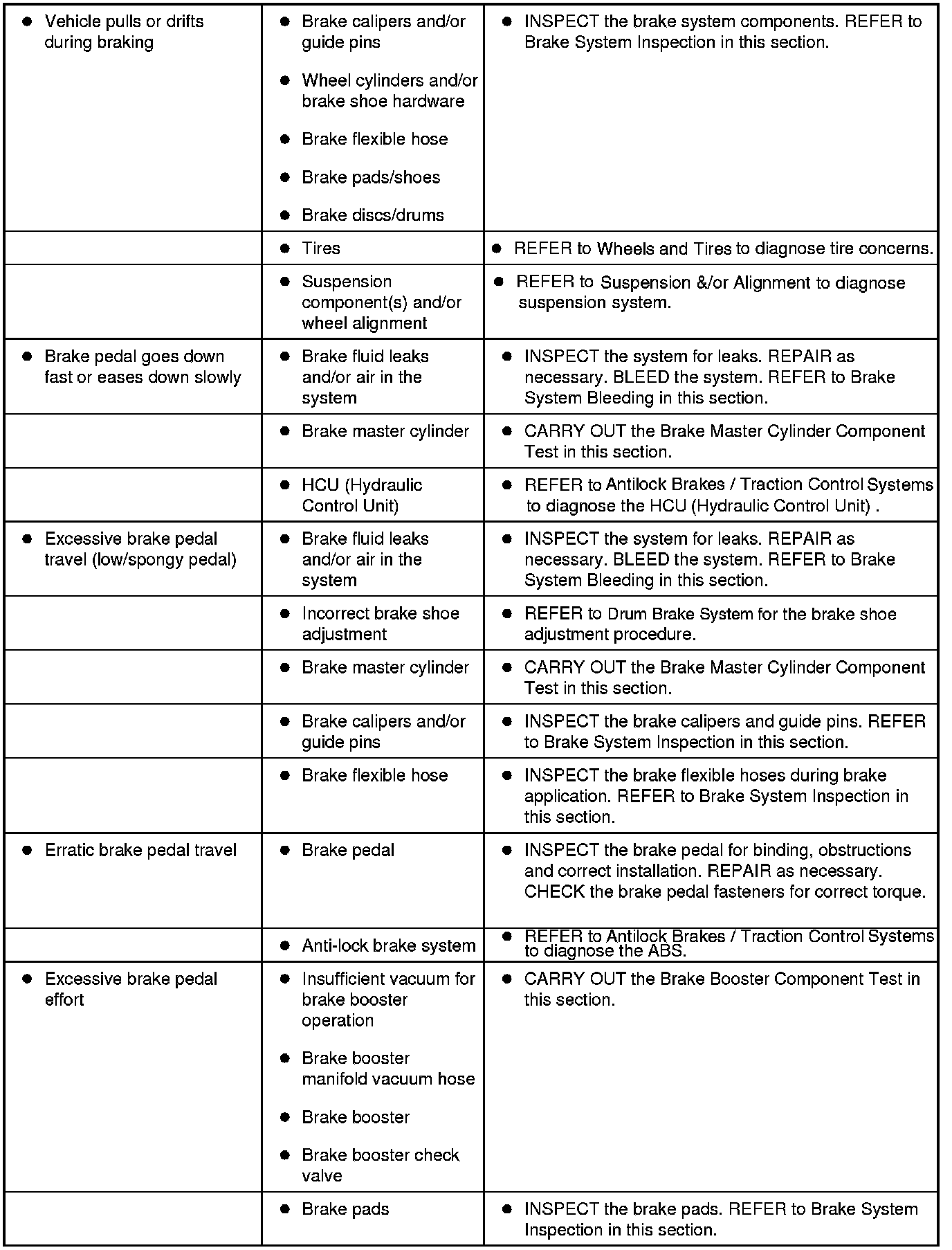

Symptom Chart

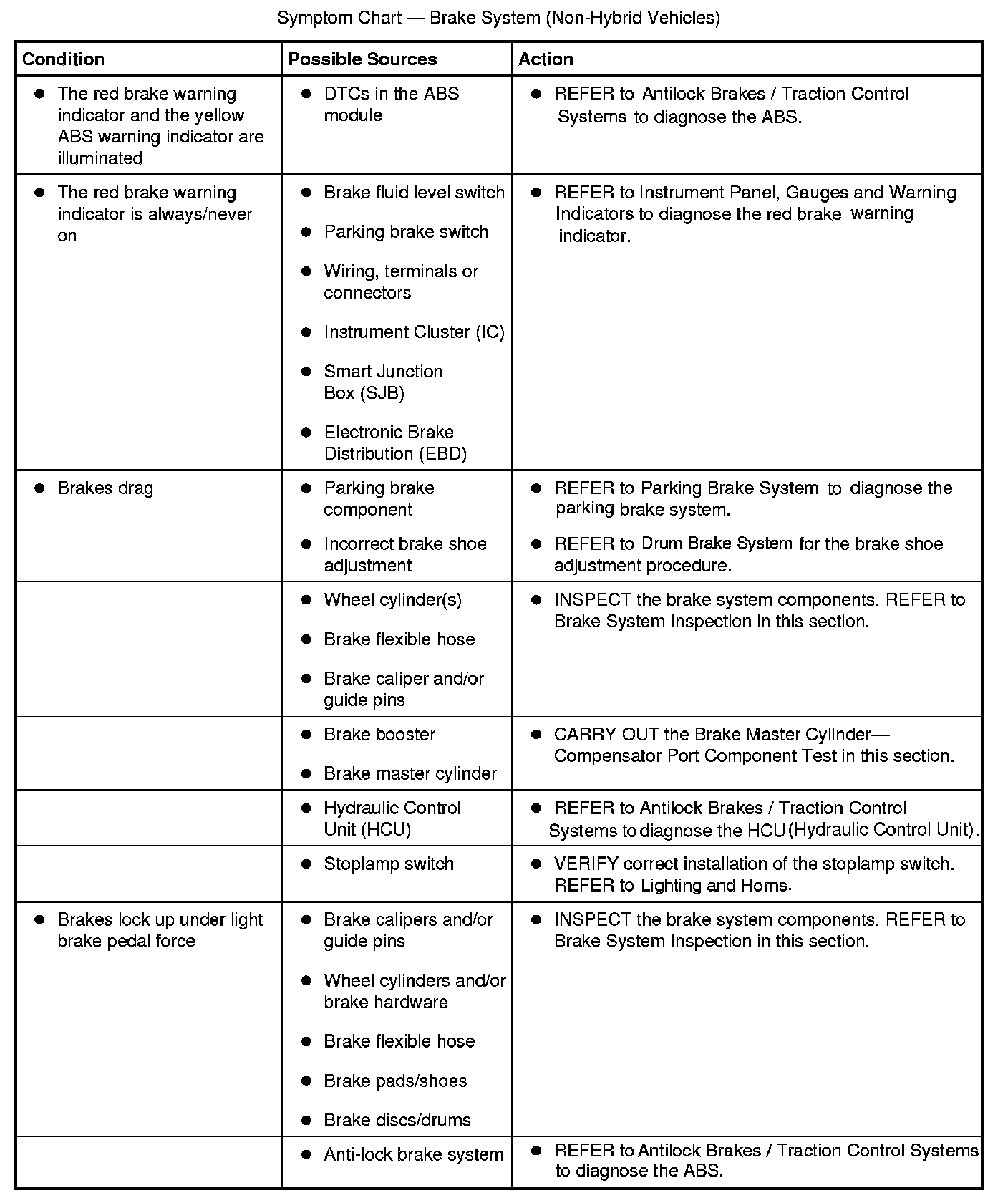

Symptom Chart - Brake System (Non-Hybrid Vehicles)
Symptom Chart - Brake System (Hybrid Vehicles)

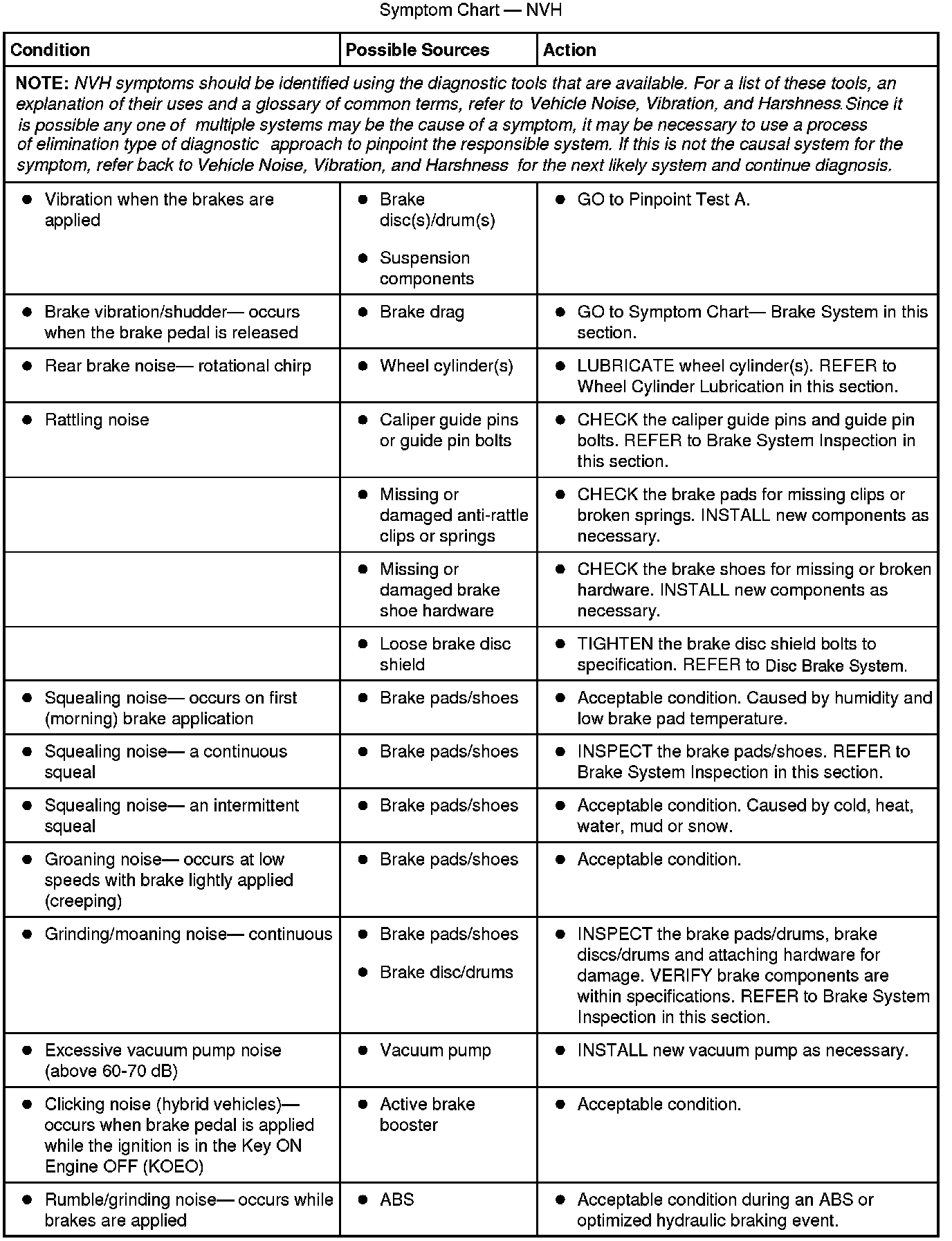

Symptom Chart - NVH
