Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
Escape 2WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Coil
>>

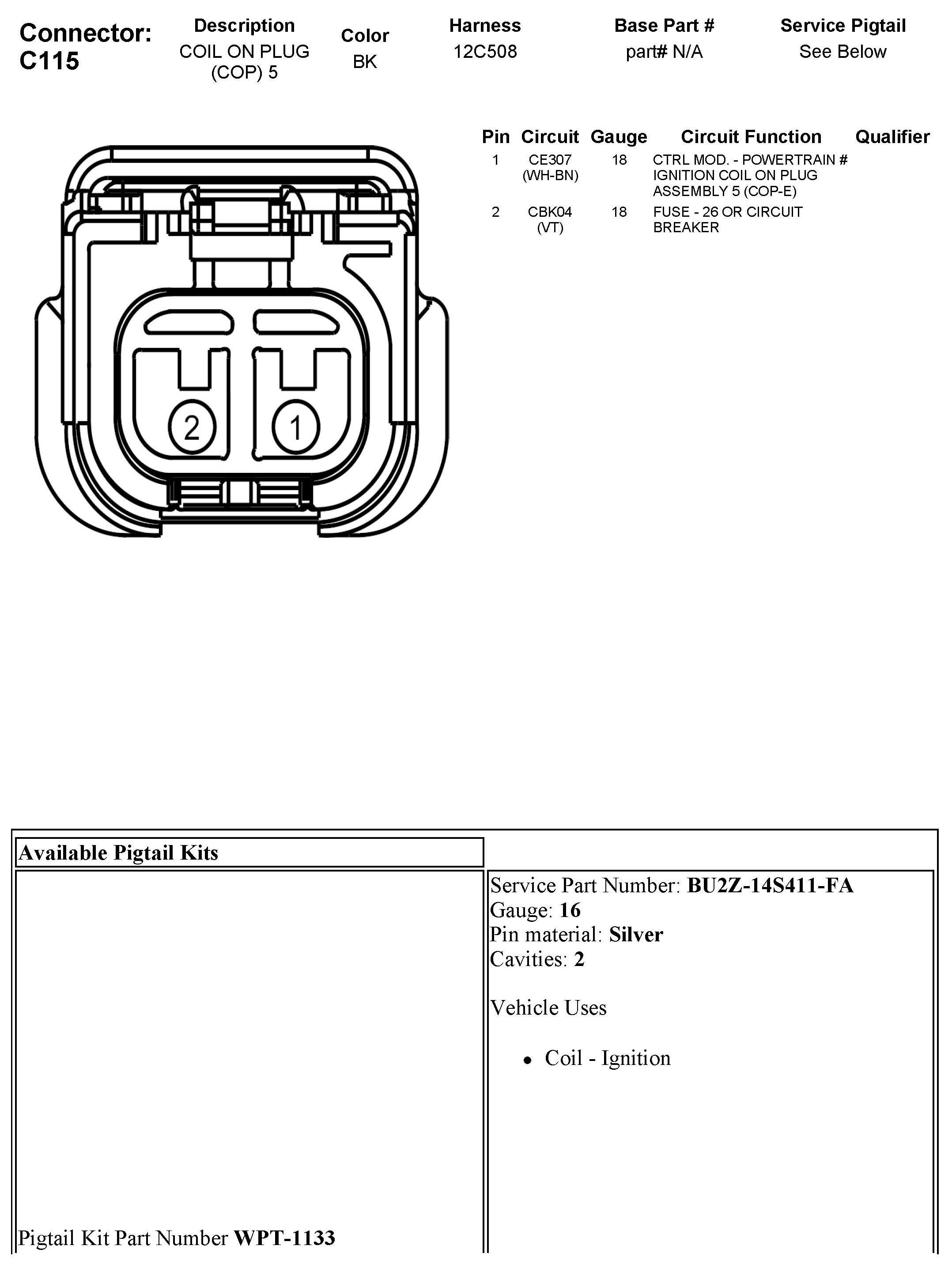

C115 Coil on Plug (COP) 5
C115 Coil on Plug (COP) 5
