Ford Truck
>>
2012
>>
Escape 2WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Coil
>>

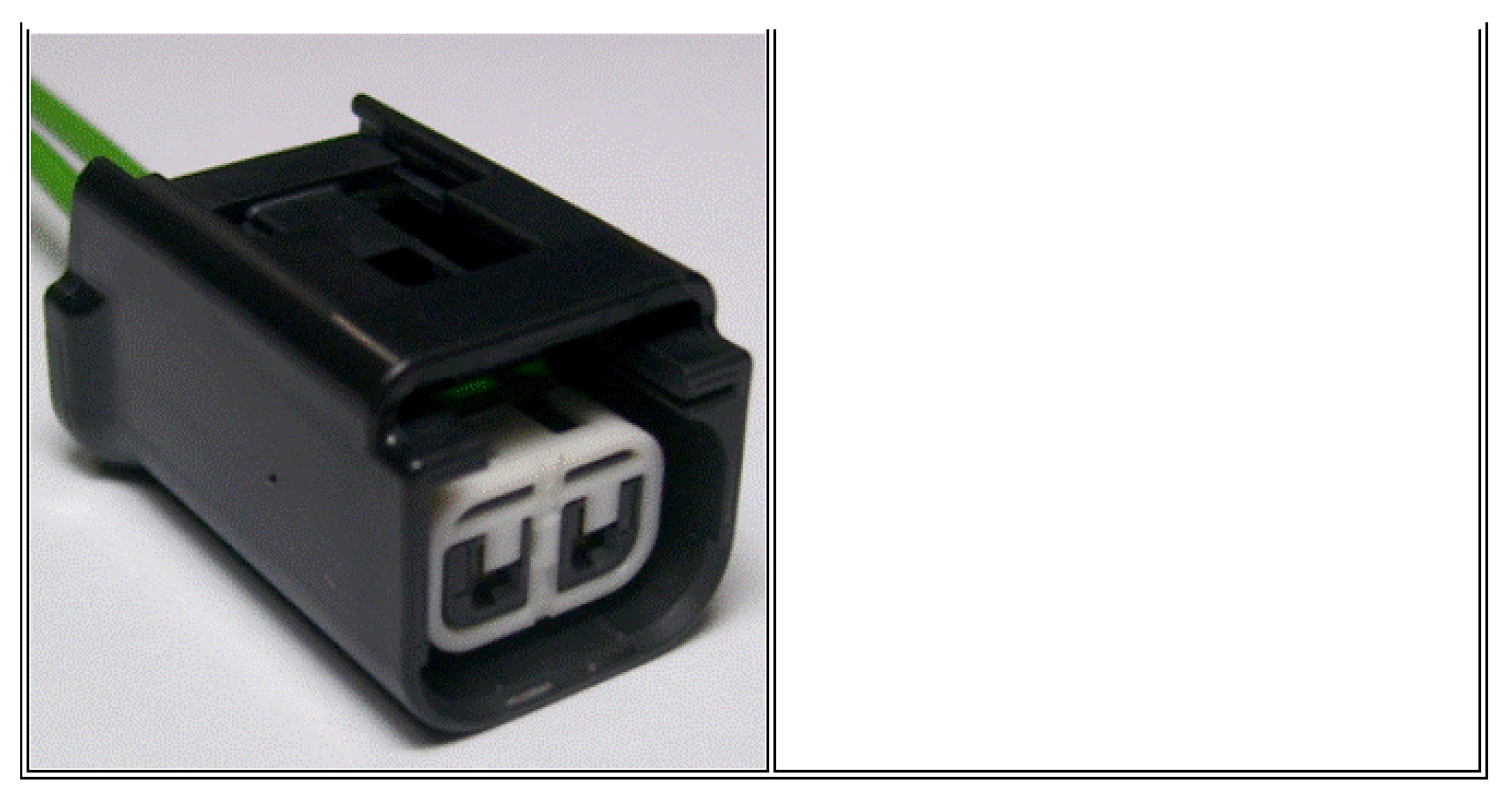

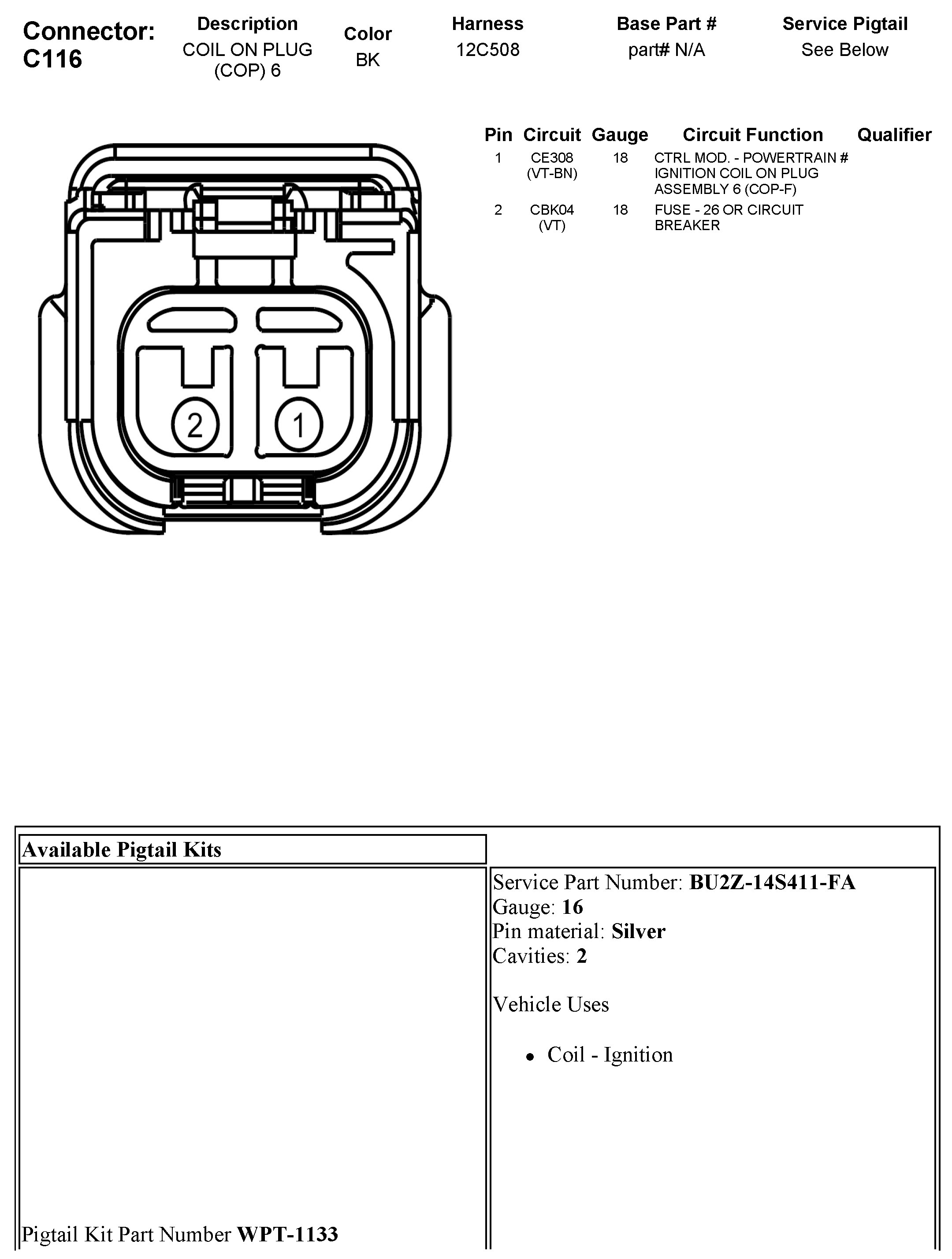

C116 Coil on Plug (COP) 6
C116 Coil on Plug (COP) 6
