Home
>>
Ford Truck
>>
2012
>>
Escape 2WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
>>

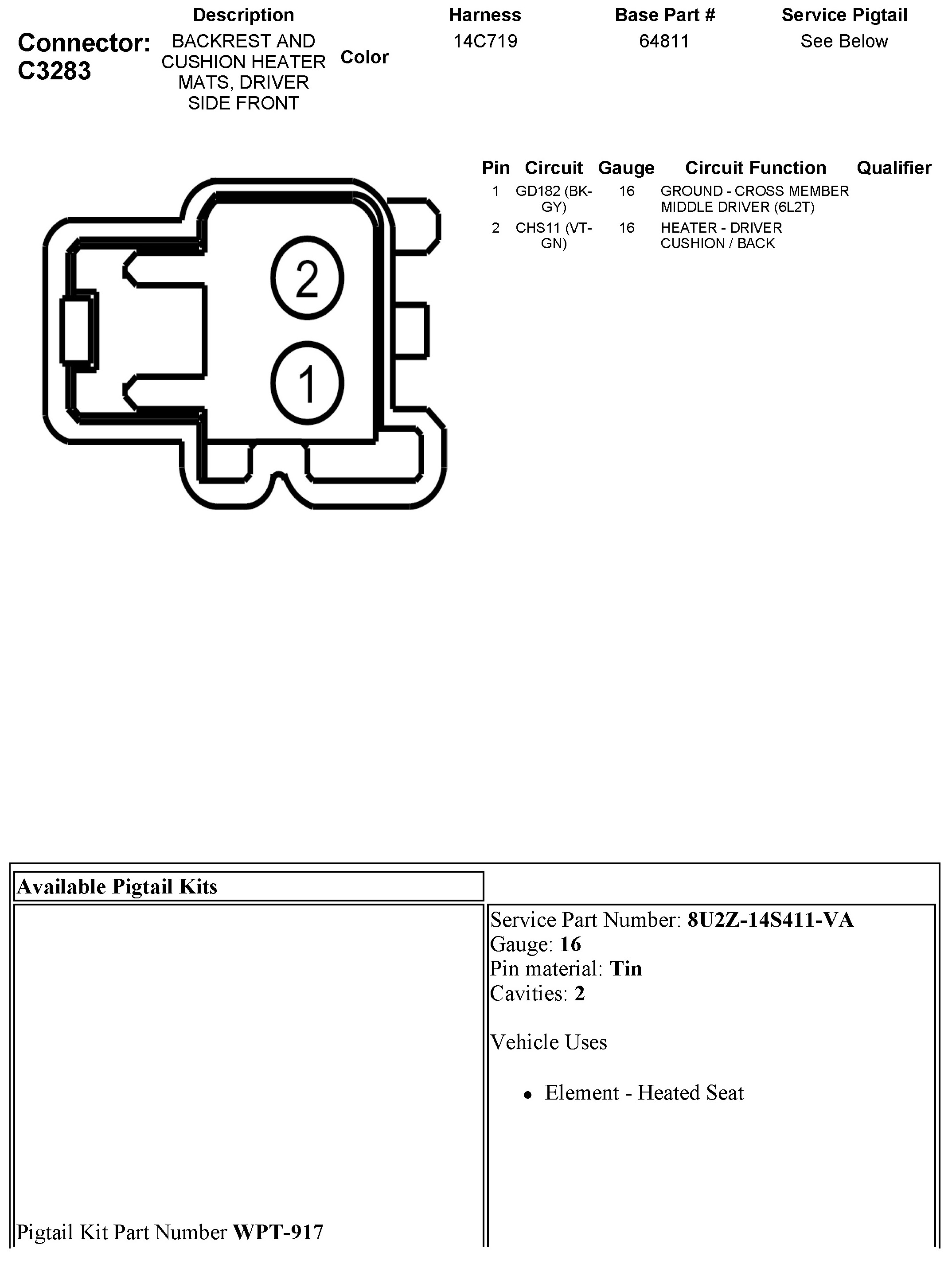

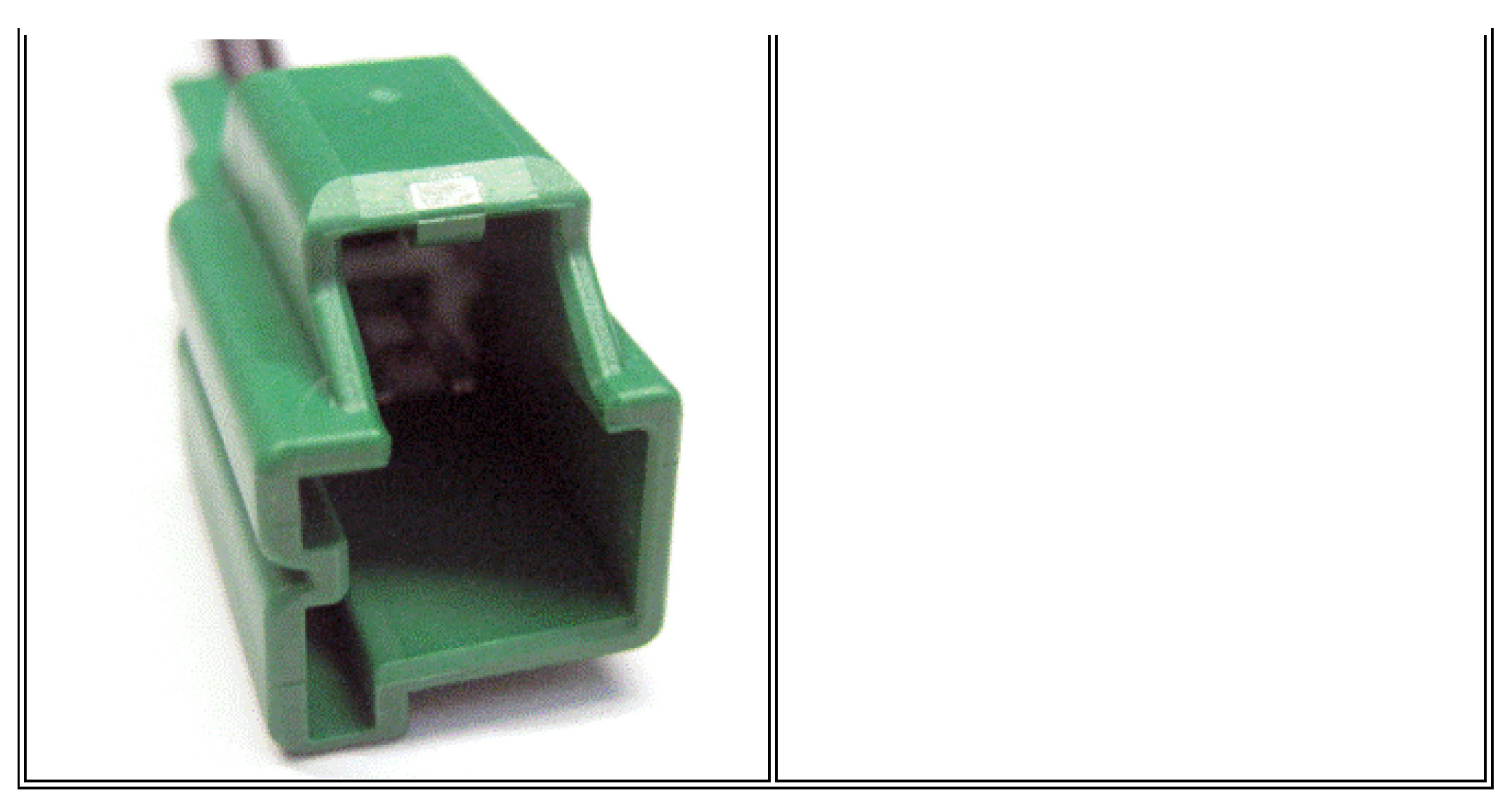

C3283 Backrest and Cushion Heater Mats, Driver Side Front
C3283 Backrest and Cushion Heater Mats, Driver Side Front
