Home
>>
Ford Truck
>>
2012
>>
Escape 2WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
Connectors
C100-C142:

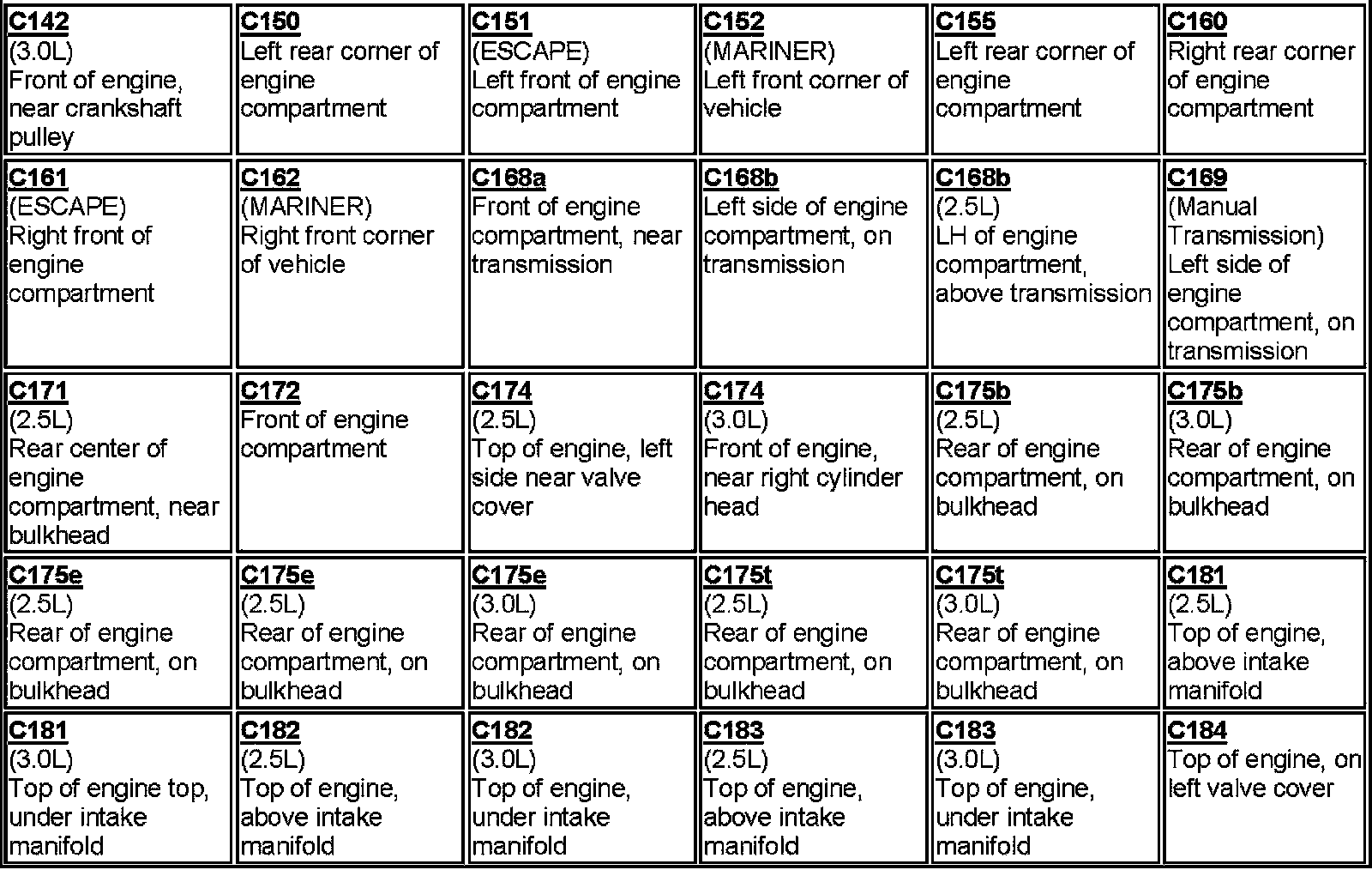

C142-C184:

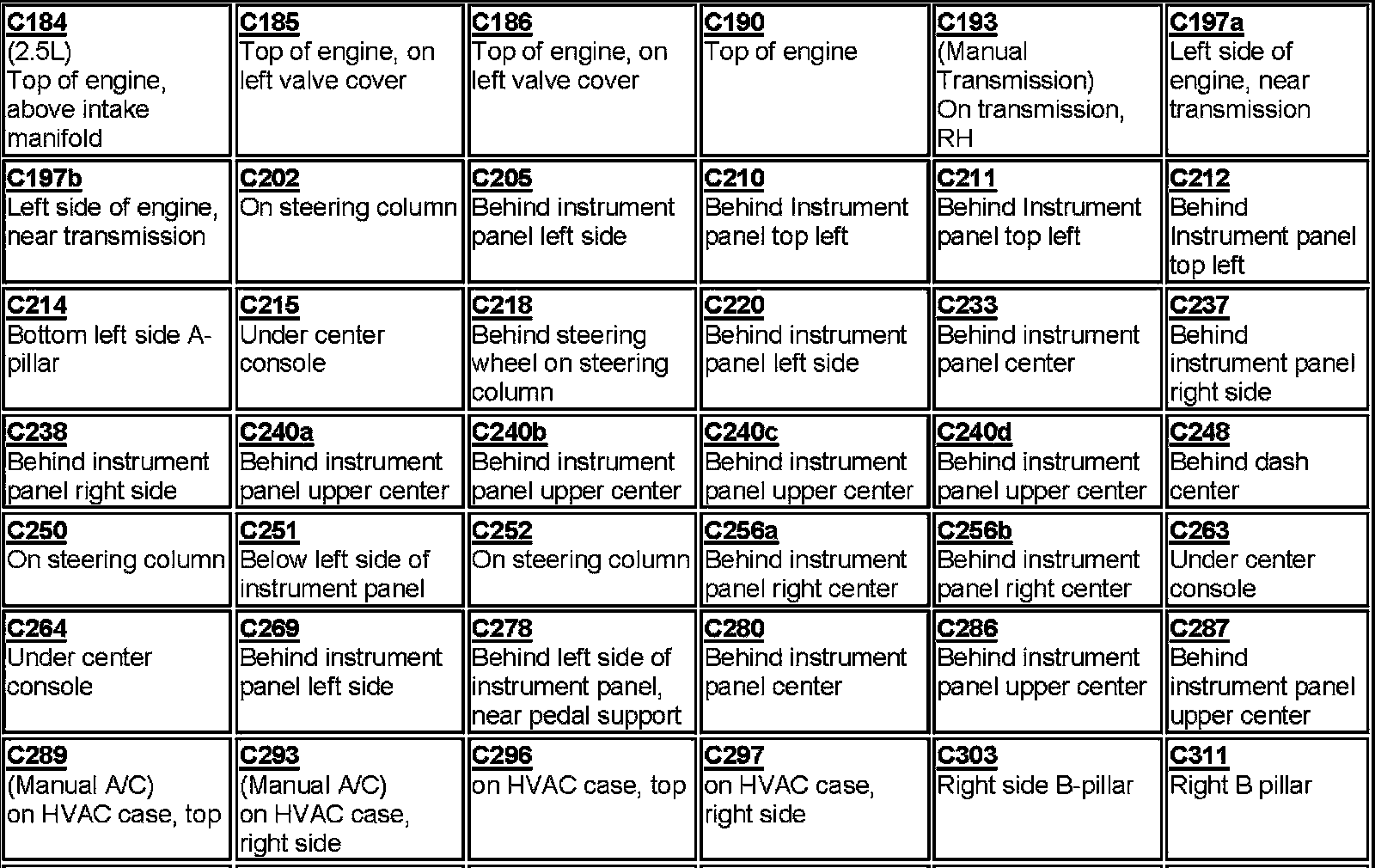

C184-C311:
C312-C520:
C523-C1120:

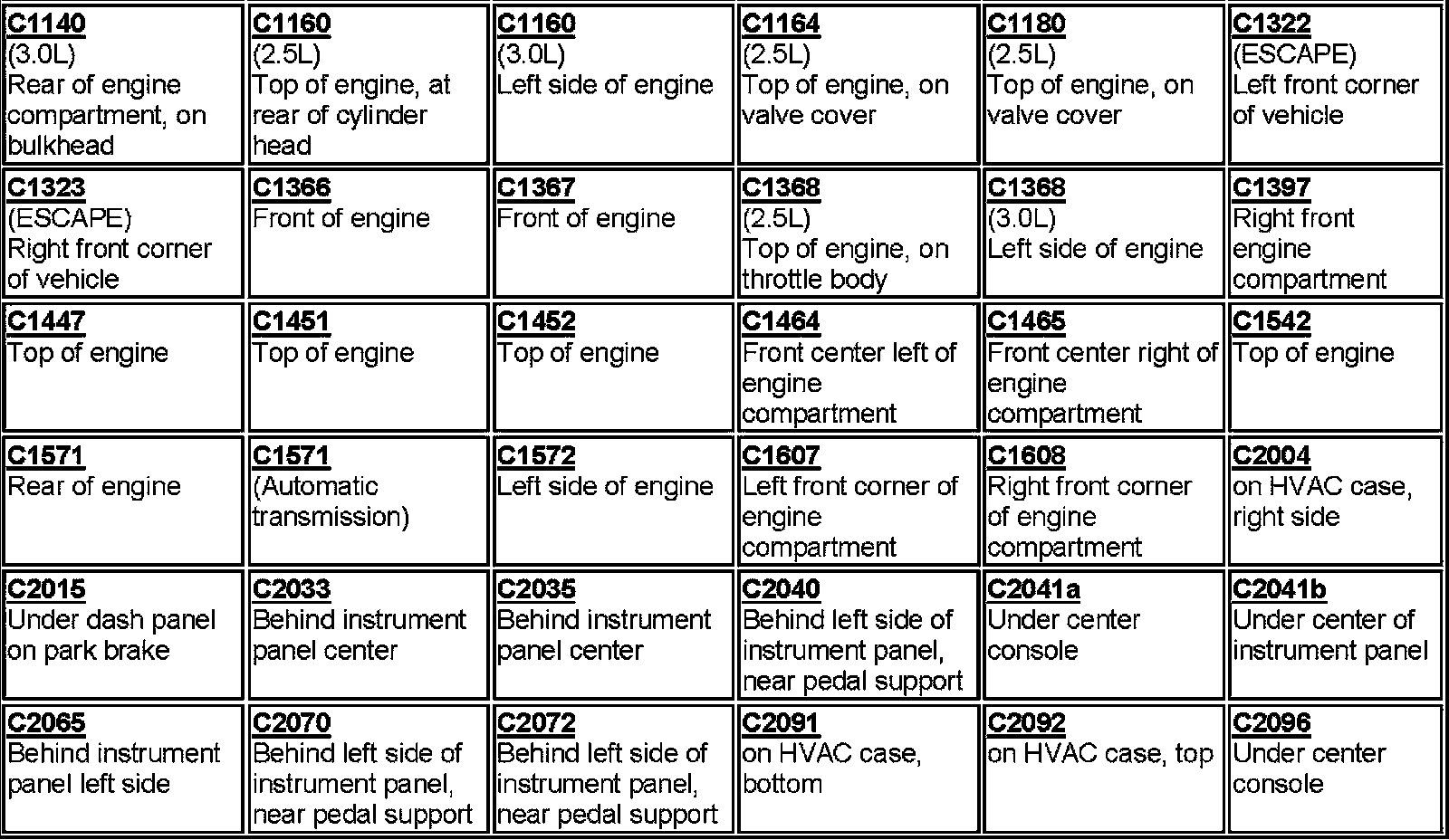

C1140-C2096:

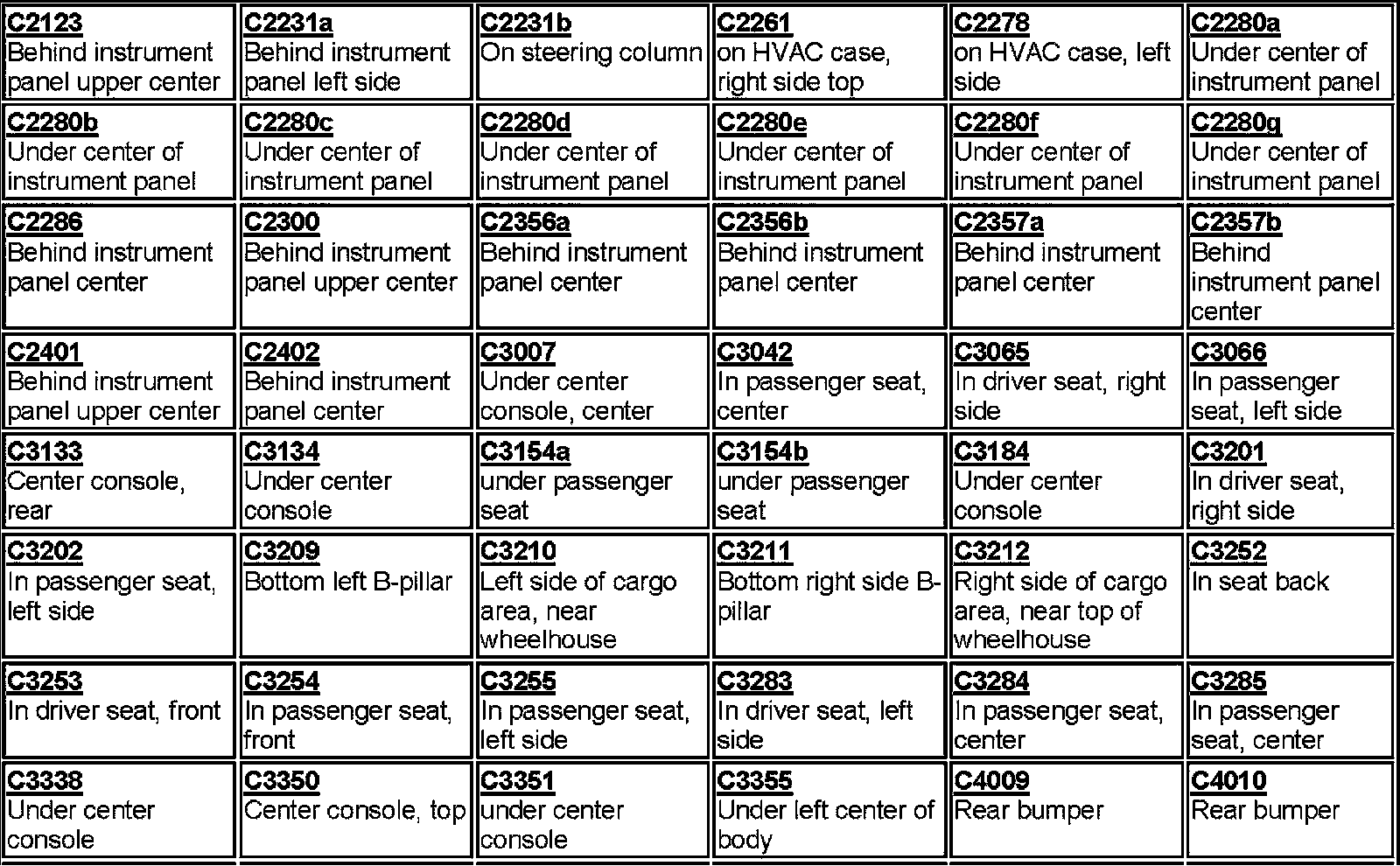

C2123-C4010:
C4011-C9039:
