Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
>>

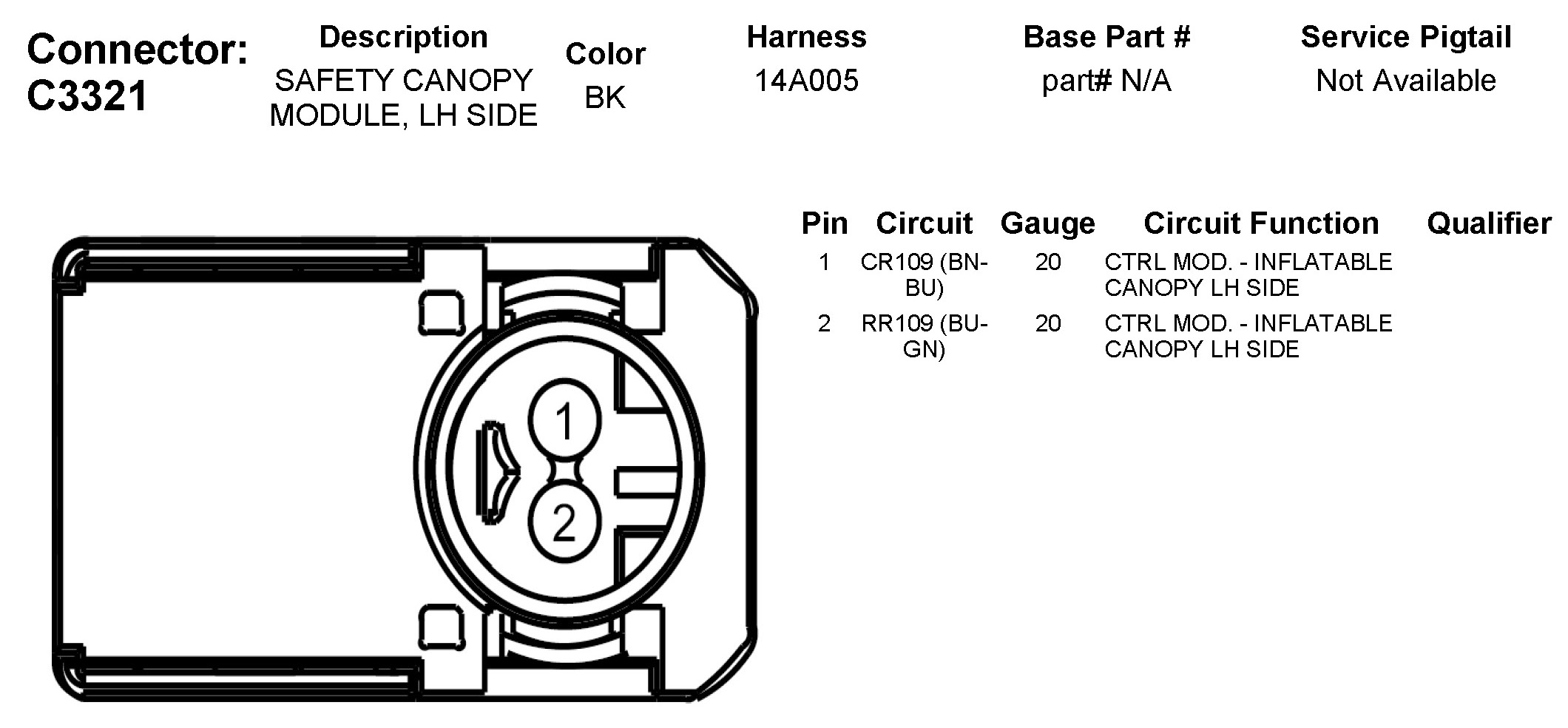

C3321 Safety Canopy Module, LH Side
C3321 Safety Canopy Module, LH Side
