Cabin Temperature Sensor / Switch
>>

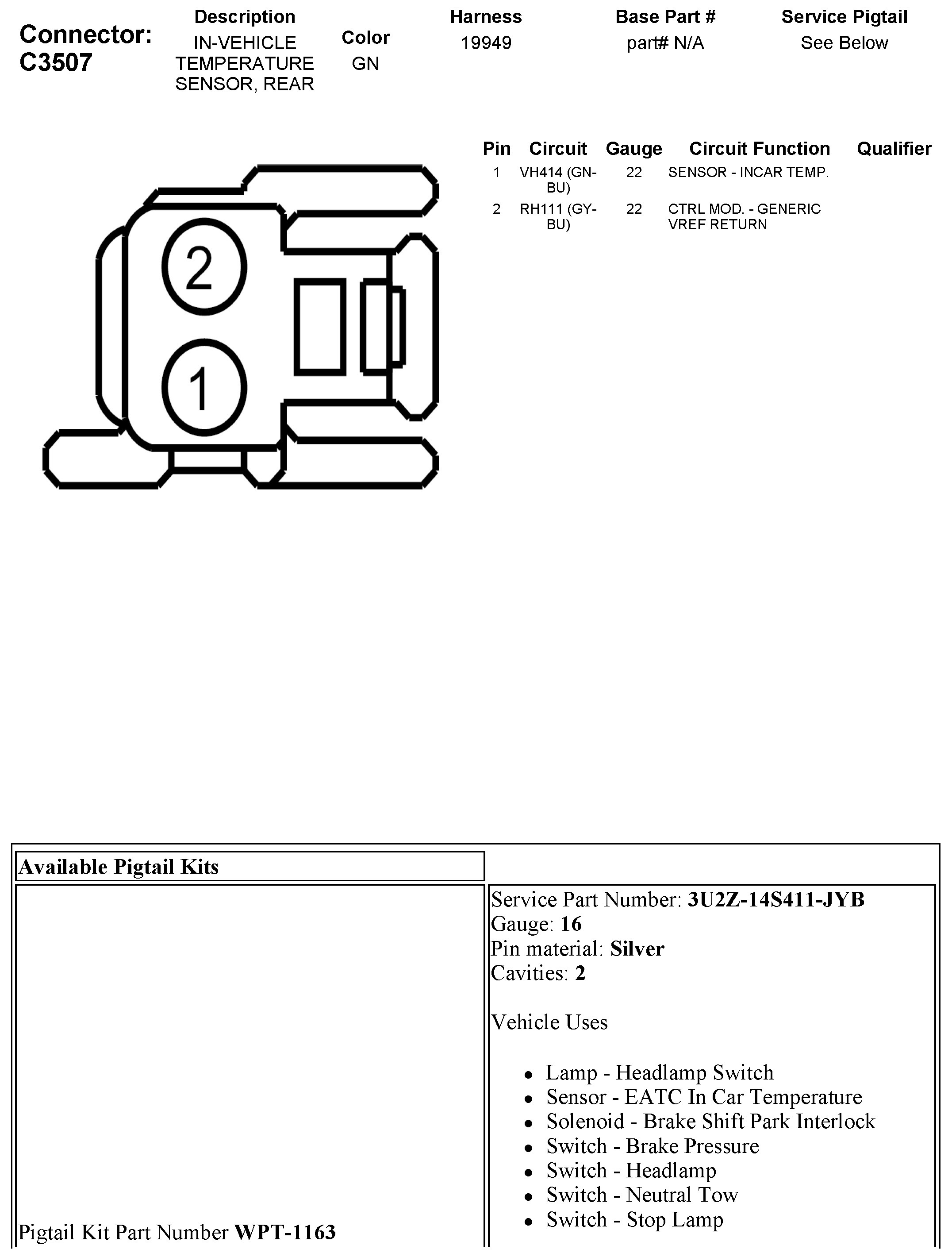

C3507 In-Vehicle Temperature Sensor, Rear
C3507 In-Vehicle Temperature Sensor, Rear
