Home
>>
Ford Truck
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Camshaft Position Sensor
>>

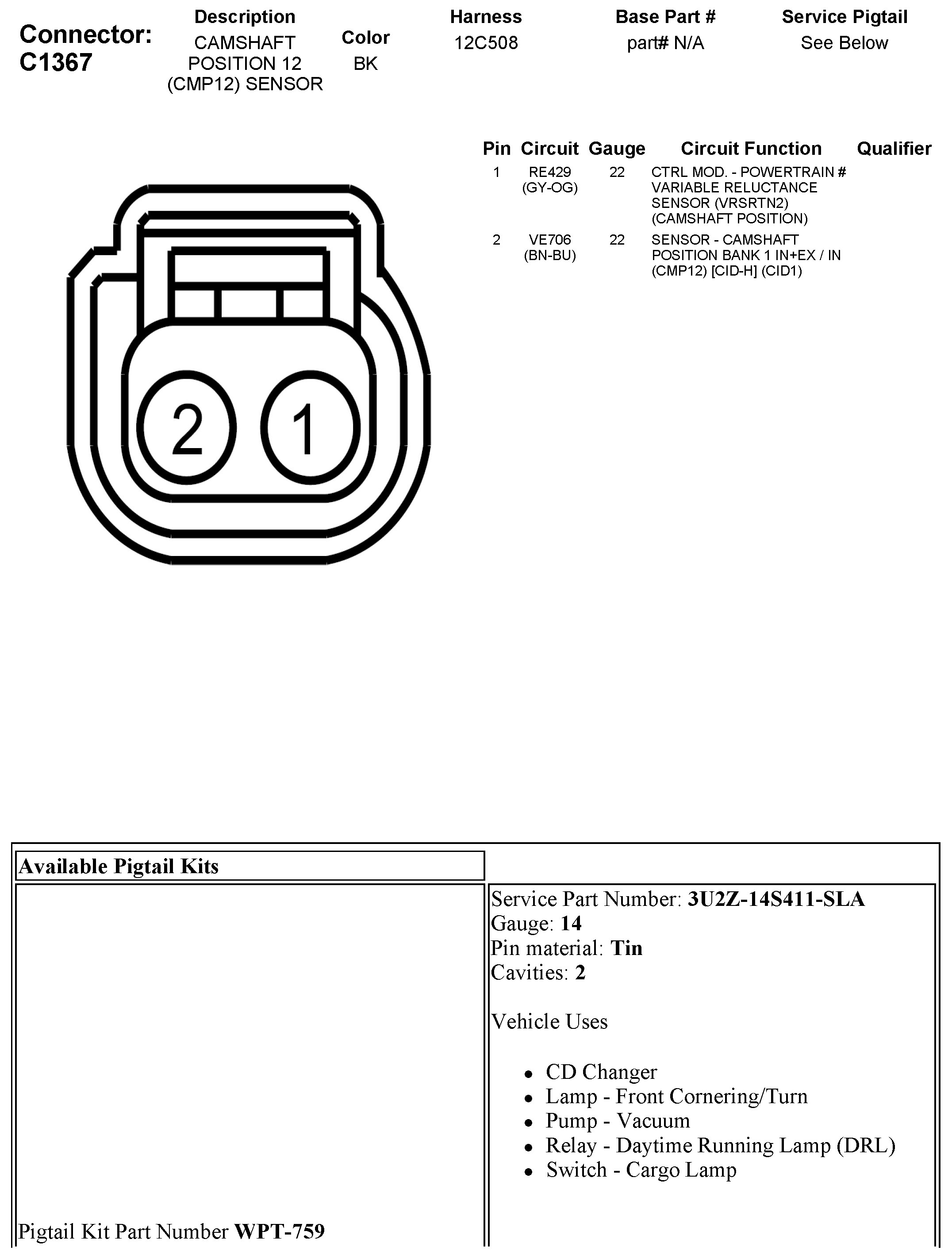

C1367 Camshaft Position 12 (CMP12) Sensor
C1367 Camshaft Position 12 (CMP12) Sensor
