Camshaft Position Sensor
>>

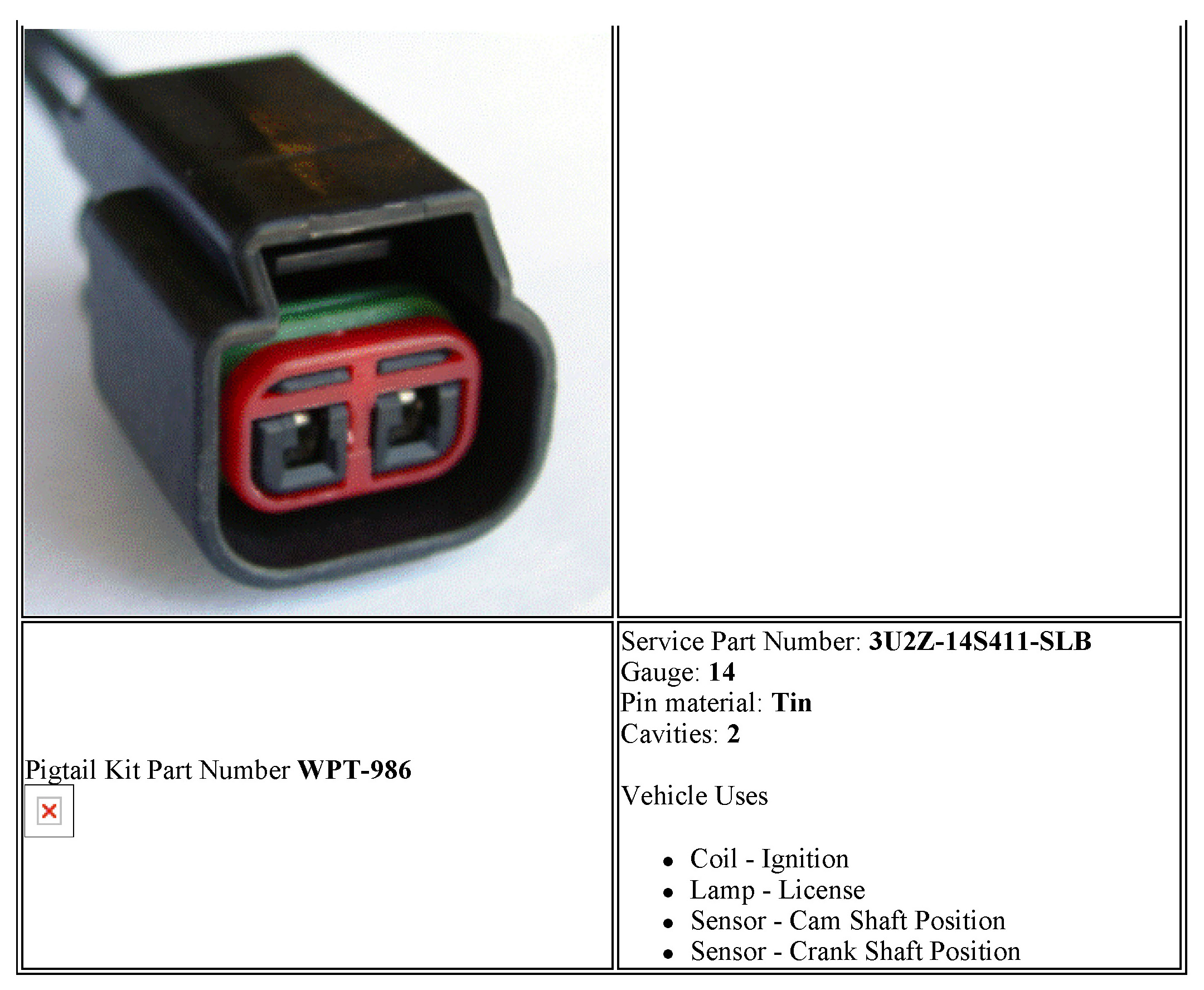

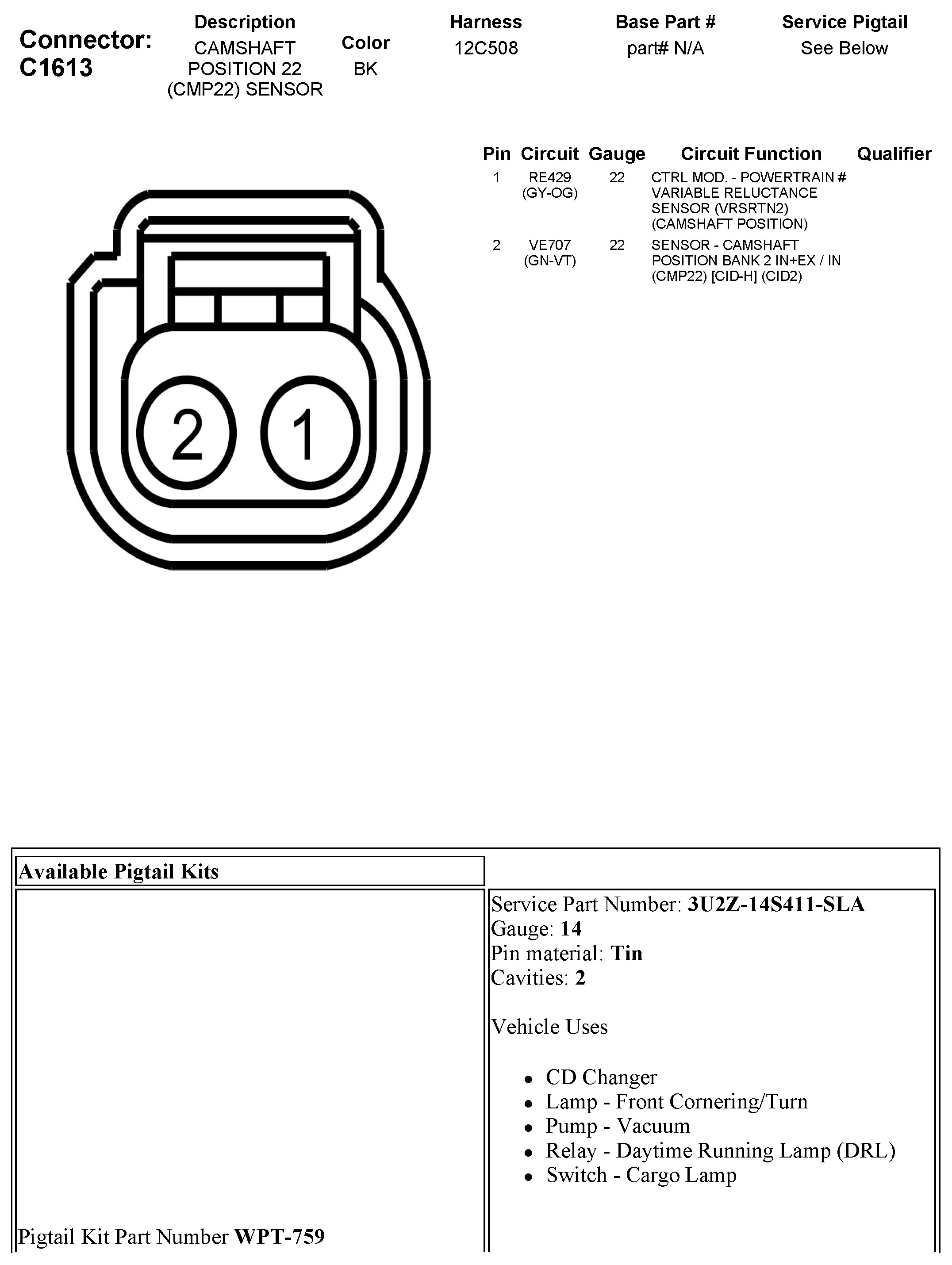

C1613 Camshaft Position 22 (CMP22) Sensor
C1613 Camshaft Position 22 (CMP22) Sensor
