Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>

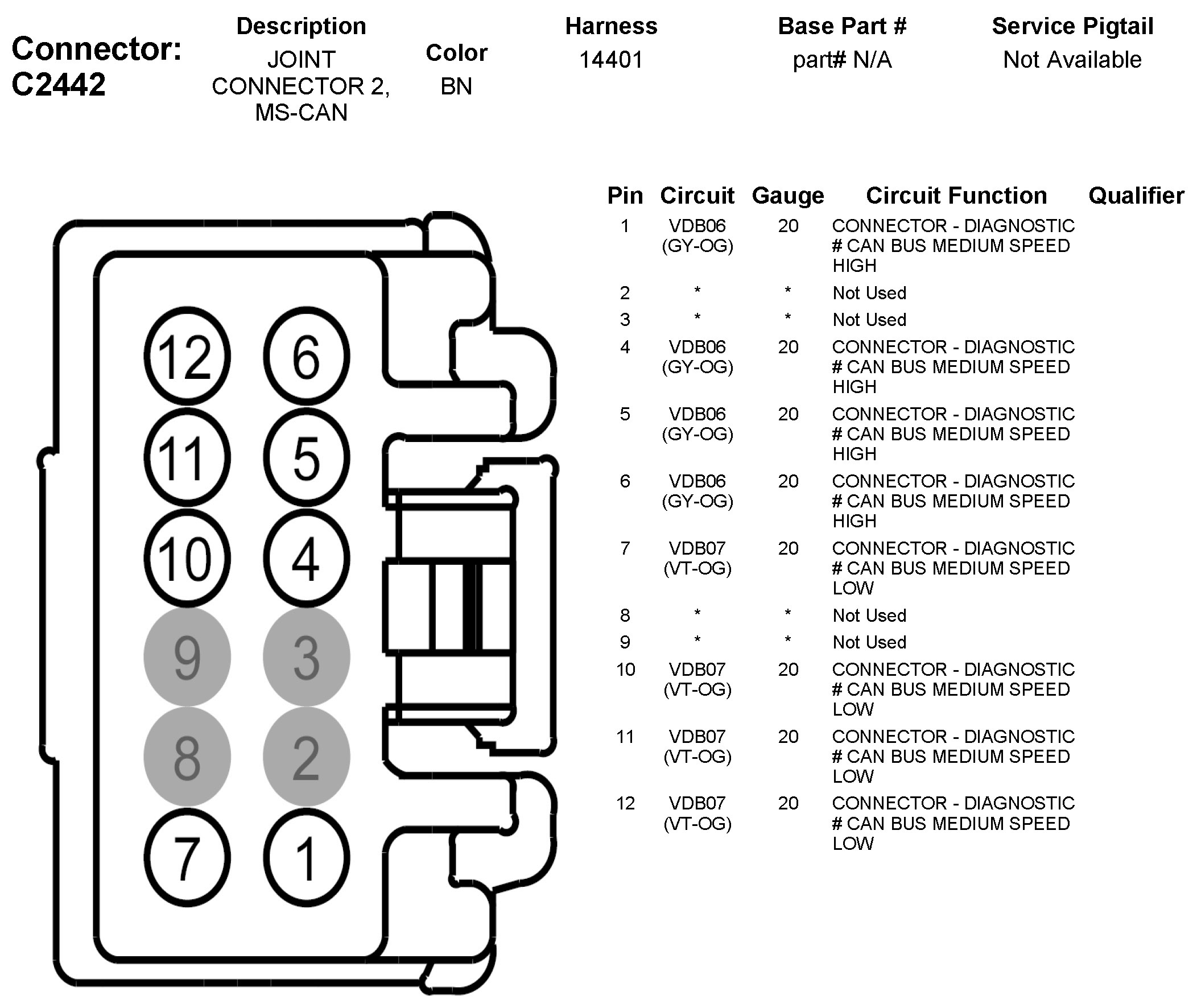

C2442 Joint Connector 2, MS-CAN
C2442 Joint Connector 2, MS-CAN
