Specifications
>>
Mechanical Specifications
Mechanical Specifications
Transfer Case
- Power Transfer Unit (PTU)

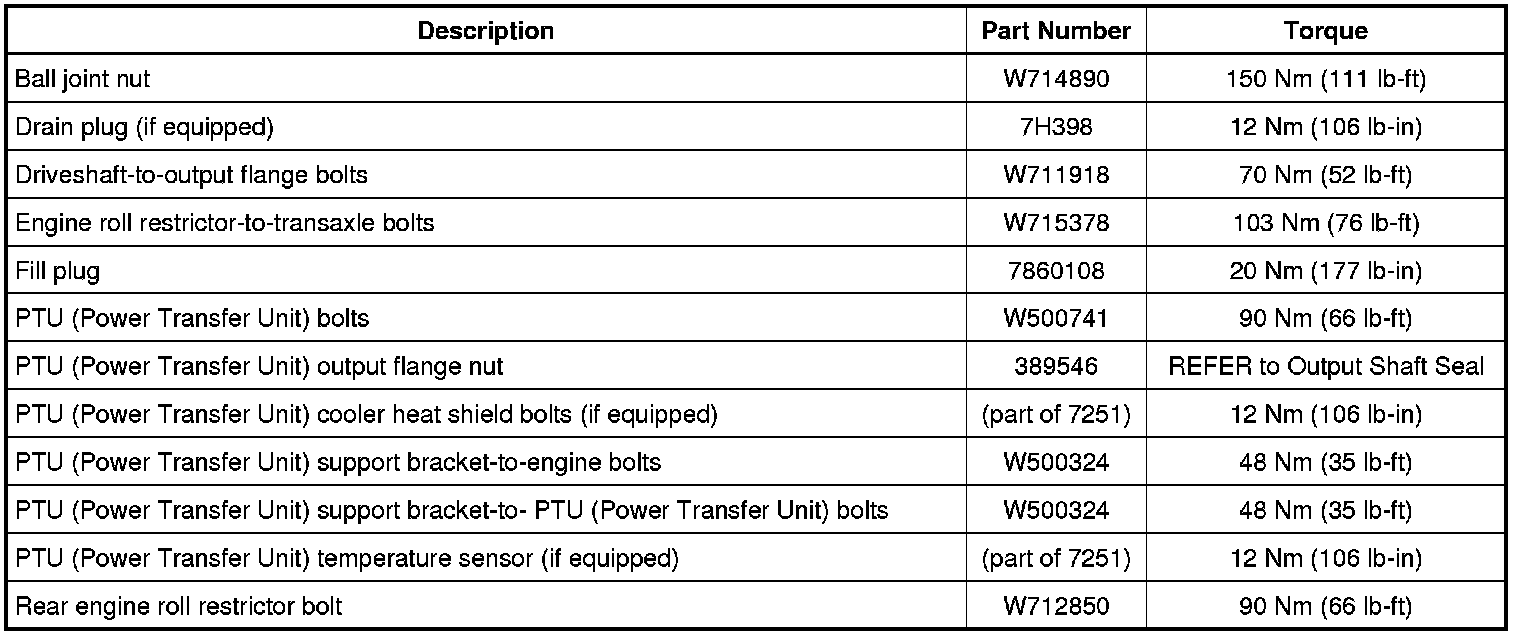

Torque Specifications
