Instrument Panel - Exploded View




Instrument Panel - Exploded View

Exploded View

Instrument Panel









Glove Compartment Close Out

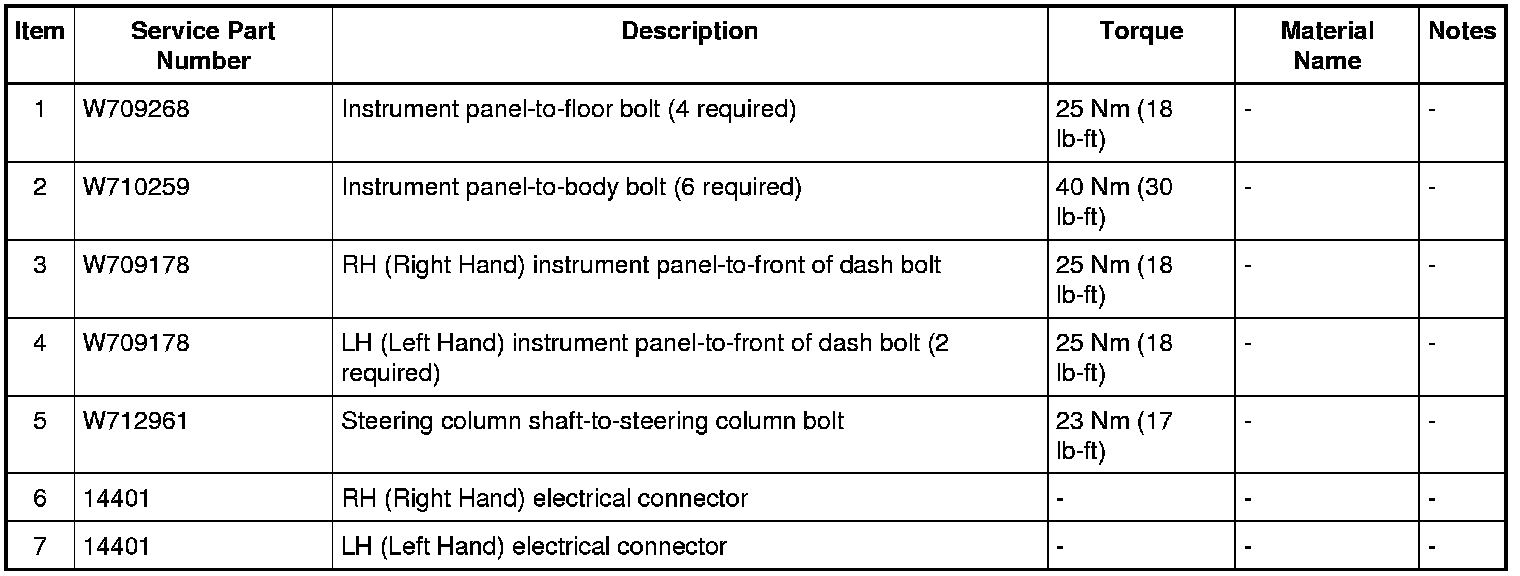

Instrument Panel Fasteners
