Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Brakes and Traction Control
>>
Disc Brake System
>>
System Specifications
>>

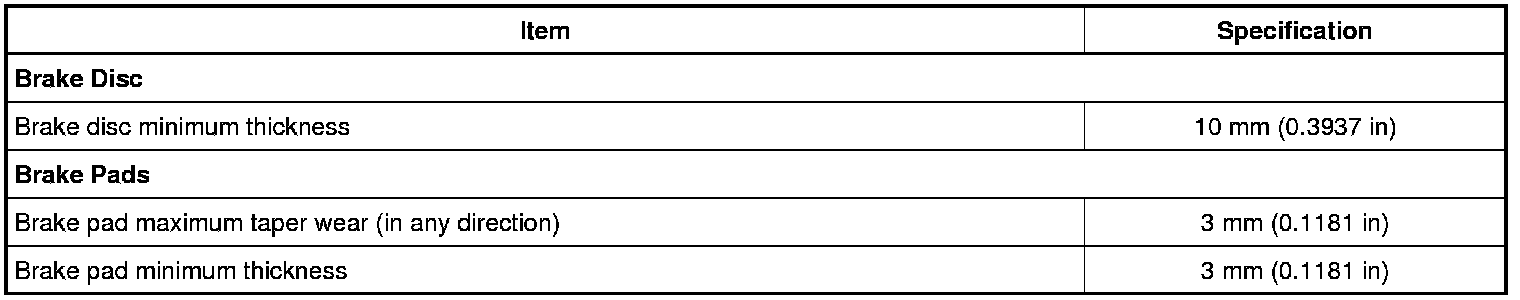

Rear Disc Brake
Rear Disc Brake
Rear Disc Brake

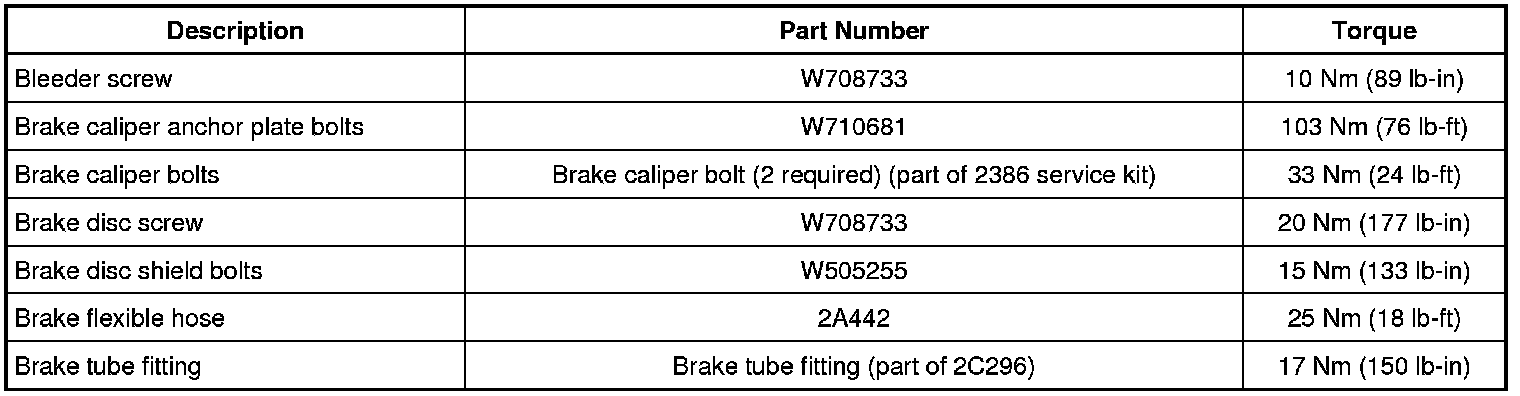

Torque Specifications
General Specifications
